Overview



The iUM2776P is a high-performance 3.5-inch hard-drive-profile storage module engineered to house two M.2 NVMe SSDs in a compact, robust form factor. Designed with a PCIe Gen3 x4 (32 Gb/s) switch and MCIO (SFF-TA-1016) host interface, it delivers enterprise-grade throughput, reliability, and flexibility. Its tool-free tray design allows effortless SSD installation and replacement, while the hot-swap capability ensures zero downtime during maintenance.

A built-in 4 cm cooling fan maintains optimal operating temperatures for sustained performance, making the iUM2776P ideal for workstation upgrades, edge computing, and data-center deployments where speed, scalability, and serviceability are critical.



Key Features

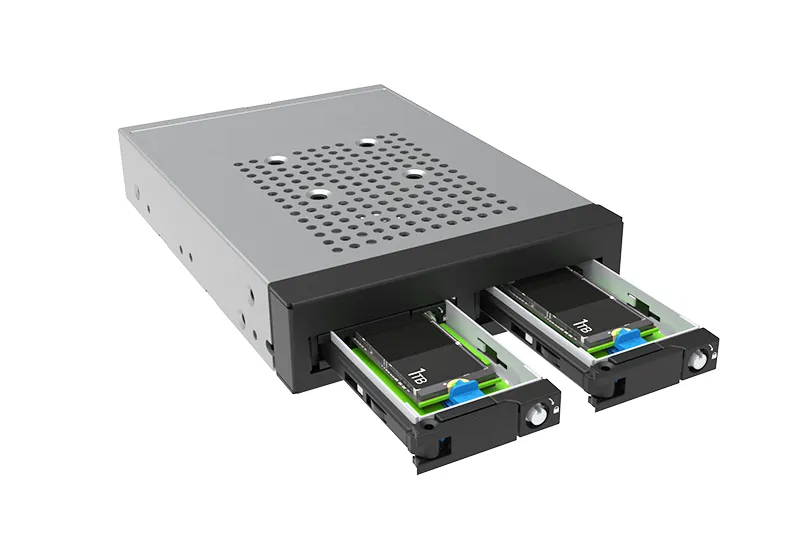

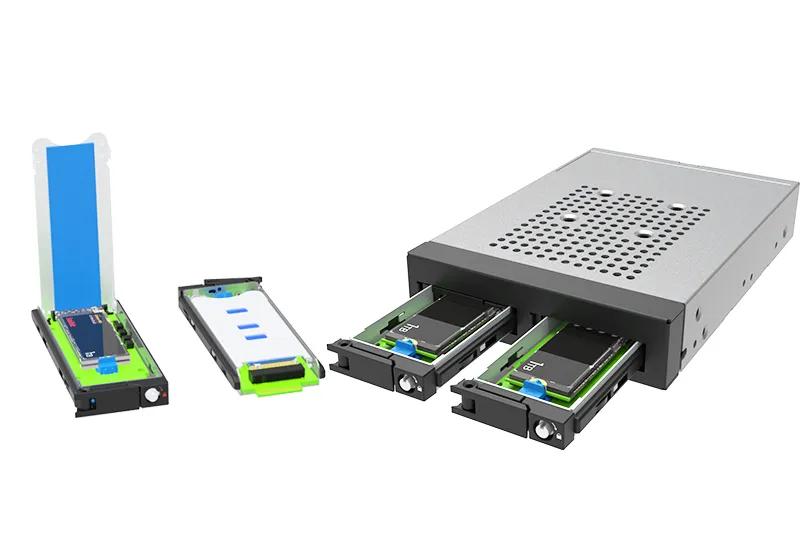

• Tool-less Installation

Innovative screwless tray design simplifies SSD installation and removal—no tools required.

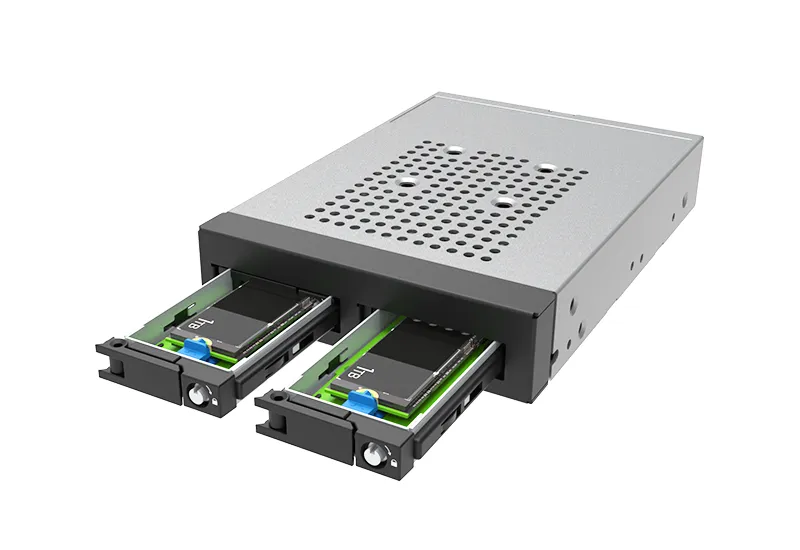

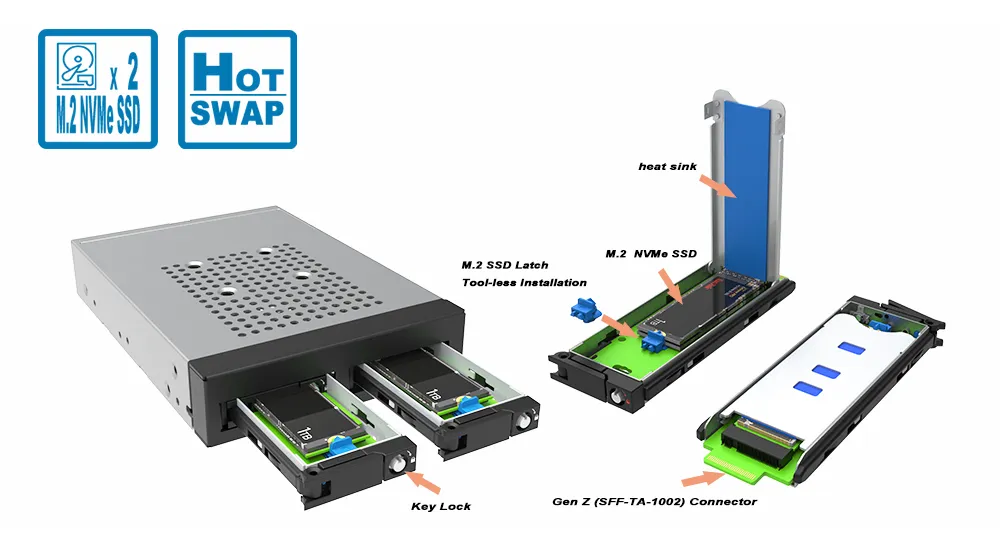

• Hot-swappable SSD Tray

Supports drive replacement without system shutdown, maximizing uptime and simplifying maintenance workflows.

• Dual M.2 NVMe SSD Support

Compatible with 2230 / 2242 / 2260 / 2280 M.2 form factors, enabling versatile configurations for performance or redundancy needs.

• Integrated PCIe Gen3 Switch

Delivers PCIe Gen3 x4 total bandwidth (32 Gb/s), allocating Gen3 x2 per SSD for high-speed, reliable data transfer.

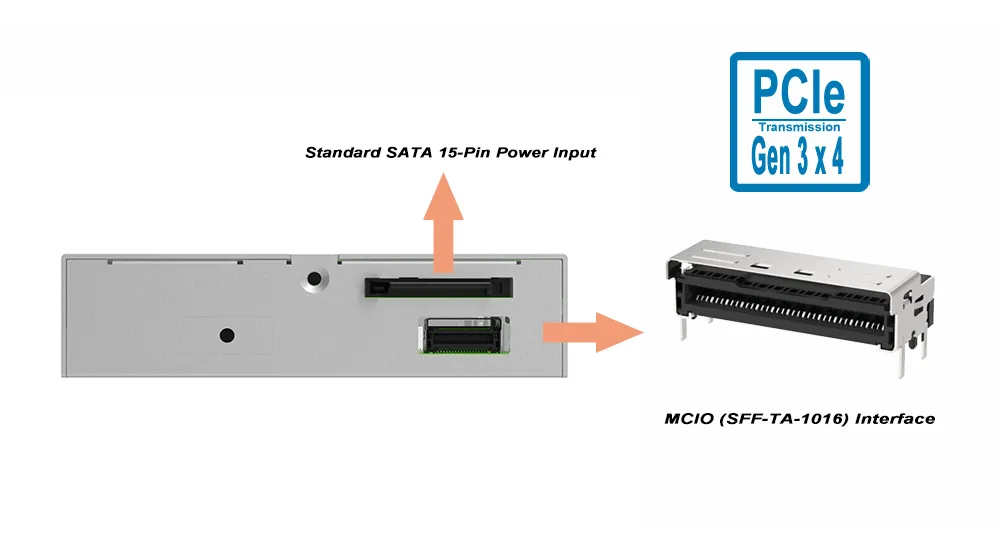

• Next-Generation MCIO Host Interface

Features a high-speed MCIO (SFF-TA-1016) connector, ensuring seamless integration with modern platforms and forward-compatibility for future upgrades.



• Standard SATA 15-Pin Power Input

Adopts a widely used power interface for easy integration into existing systems and backplanes.

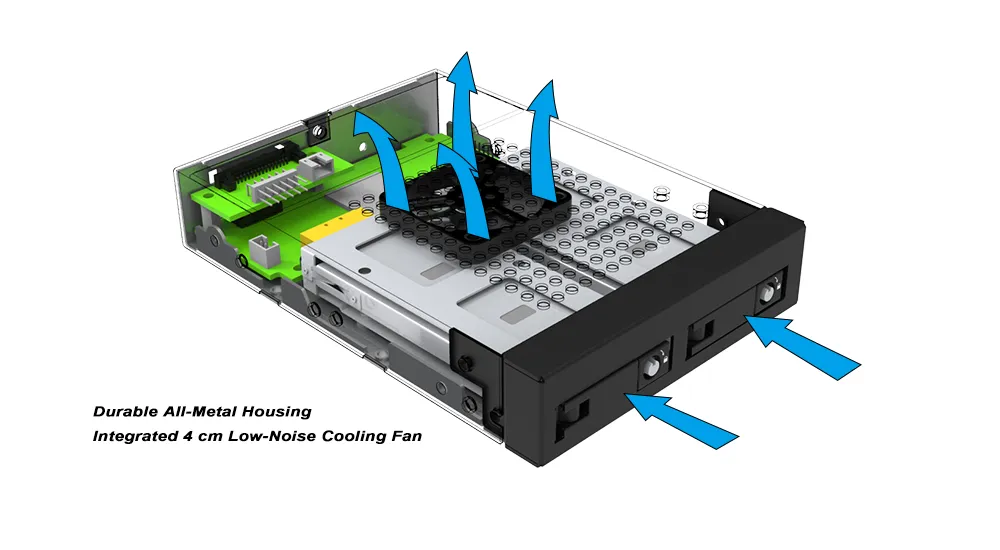

• Durable All-Metal Housing

Precision-machined aluminum chassis enhances structural integrity and improves passive heat dissipation.



• Integrated 4 cm Low-Noise Cooling Fan

Active cooling ensures consistent SSD performance under sustained workloads while maintaining low acoustic levels.

Benefits



• Compact Yet Powerful – Combines dual NVMe performance within a standard 3.5" bay footprint.



• Future-Ready Design – MCIO interface aligns with emerging PCIe cabling standards for high-density server and workstation environments.



• Minimized Downtime – Hot-swap and tool-less features streamline maintenance and upgrade cycles.



• Thermally Optimized – Active airflow and all-metal housing preserve SSD health under intensive workloads.



• Plug-and-Play Integration – Standard SATA power and 3.5" form factor simplify installation in existing chassis or JBOD enclosures.



Ideal Applications



• Workstation and Desktop Upgrades – Enhance system storage bandwidth and capacity for AI development, 3D rendering, or video editing.



• Data Center and Cloud Servers – Compact, hot-swappable NVMe module ideal for scalable, high-throughput storage arrays.



• Edge Computing Systems – Robust and compact design fits edge devices demanding fast local caching or AI inference storage.



• Industrial and Embedded Platforms – Ruggedized housing and efficient cooling suit industrial control and IoT environments.



• Media Production and Content Creation – Perfect for real-time 4K/8K video capture and editing workflows requiring sustained throughput.



The iUM2776P: Compact form, professional performance, and future-ready interface — a smart evolution in NVMe storage module design.





Important Usage Notes



Notes:



1. System Power and Detection

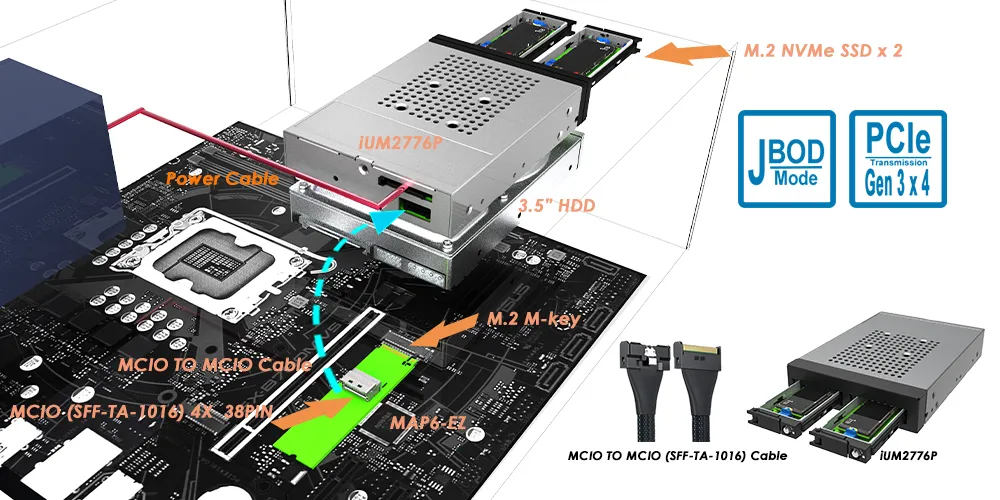

The iUM2776P connects directly to the motherboard via a PCIe interface. Because most motherboards do not natively support PCIe hot-swap functionality, the module must be powered on during system startup to ensure proper detection.



• If the iUM2776P is not powered when the system boots, it may not be recognized by the operating system.

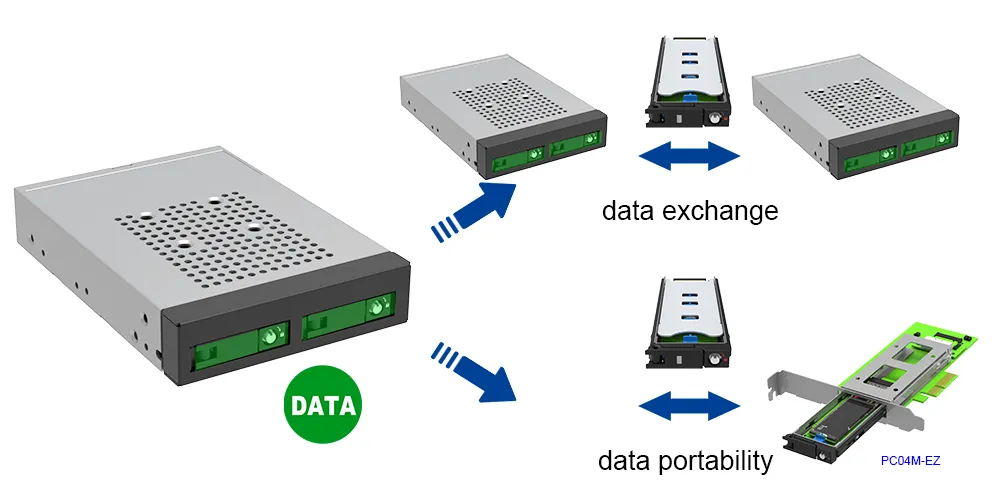

2. Hot-Swap Functionality

The system can boot normally without any SSDs installed in the iUM2776P.



• M.2 NVMe SSDs can be inserted or removed while the system is running, and will be automatically recognized by the system.



• This hot-swappable feature allows convenient maintenance or upgrades without requiring a system shutdown.

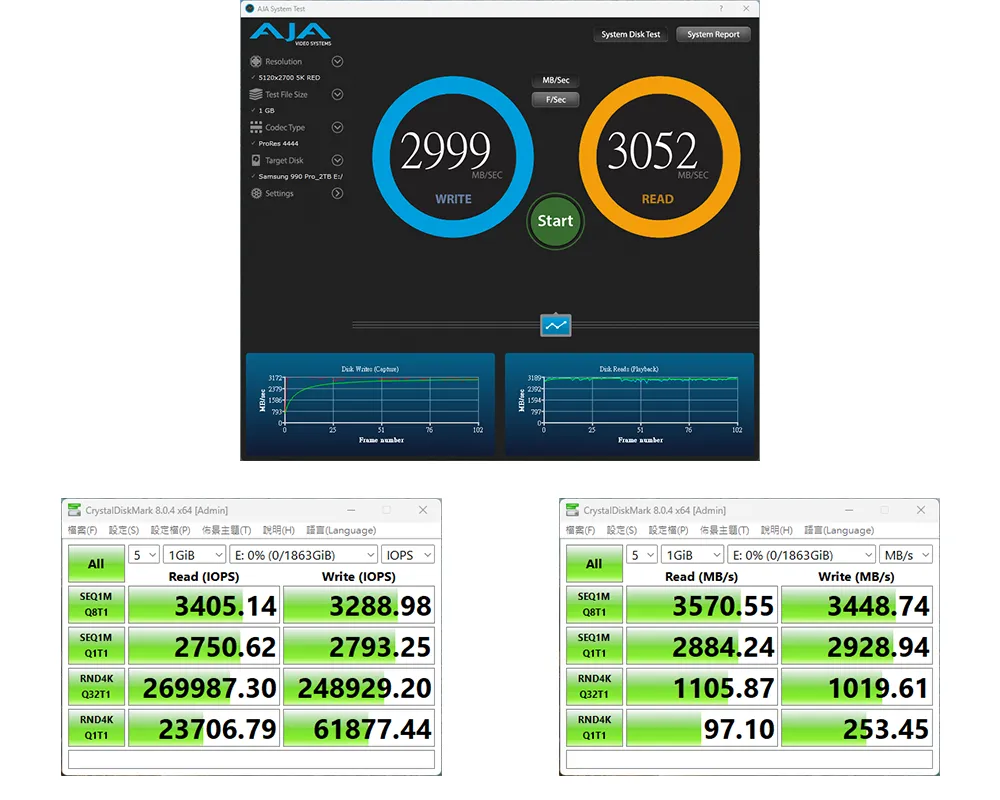

Performance test result for reference. The test result will vary depend on the test environment.

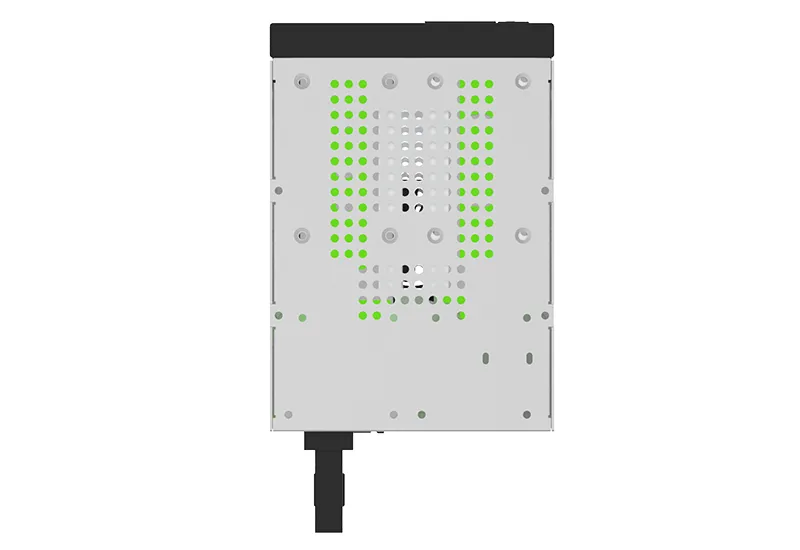

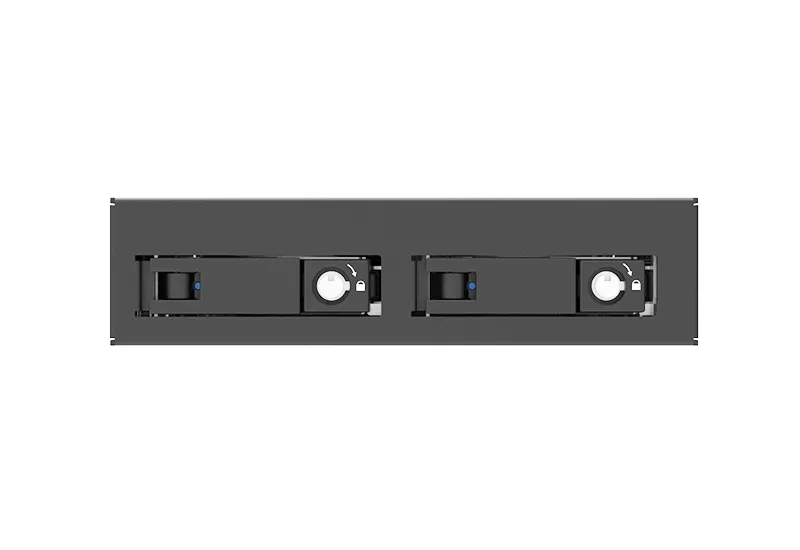

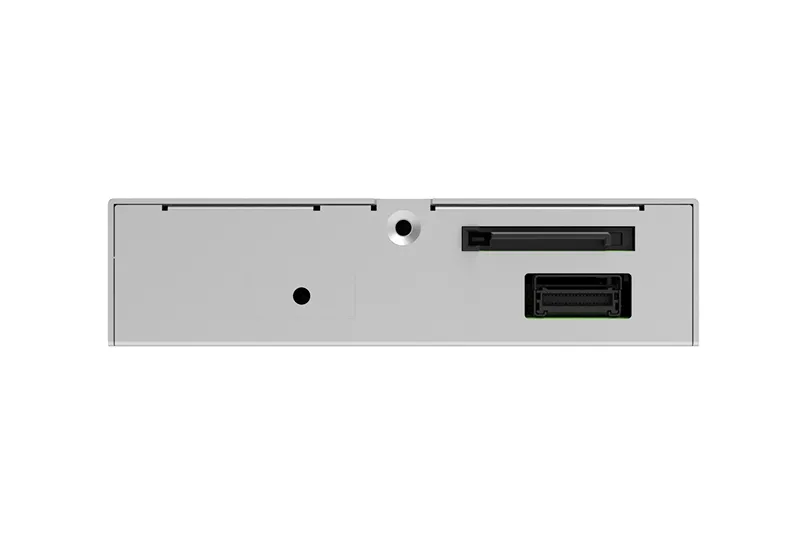

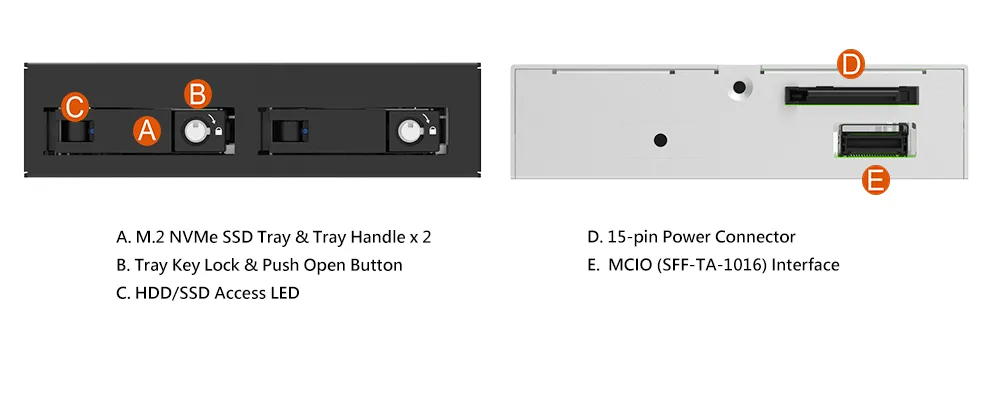

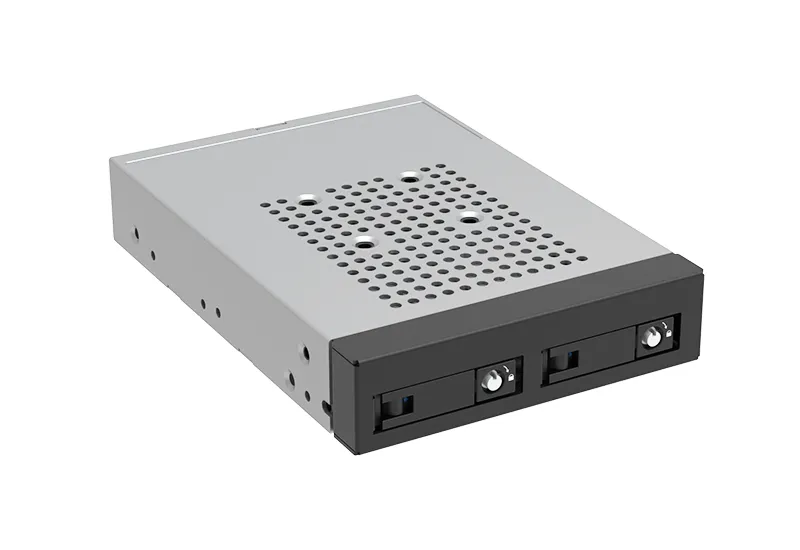

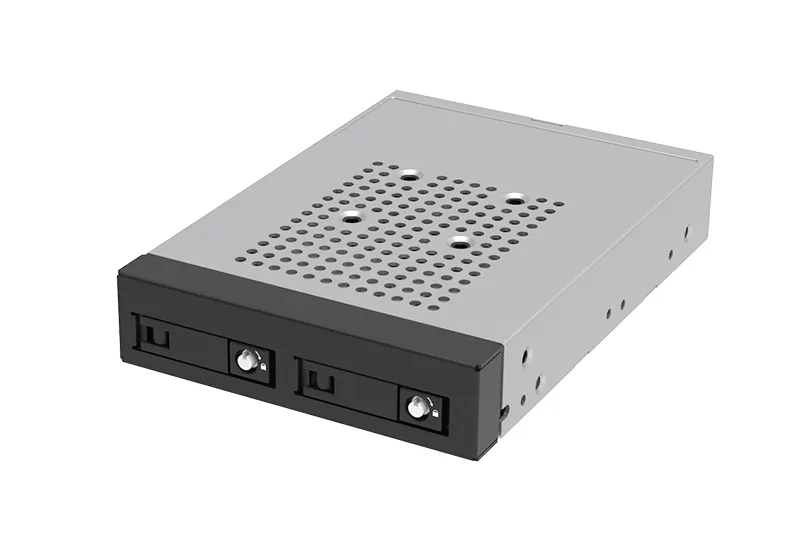

Product View

Specification
