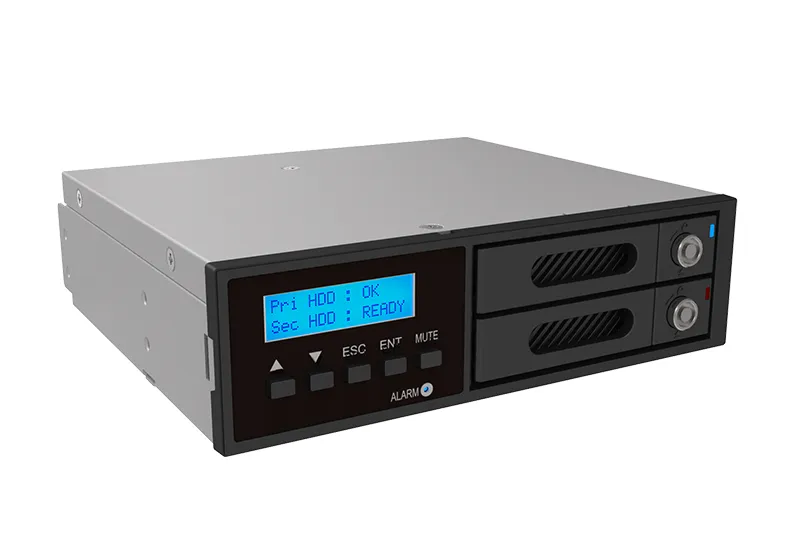

InTANK Series


iR2022S: RAID 1 Scheduling backup is a convenient way to protect data and extend the lifespan of drives.


The iR2022S features a new RAID 1 scheduling backup function. Users can use the RAIDON STATUSGUARD GUI software to set up a time schedule for backups, which can help to protect disk array from corruption and system failure. This function can also help to extend the life cycle of drives.




1. Flexible storage options: Supports M.2, SSD and hard drives.


2. Comprehensive support for SATA 6G.


3. RAID 1 Scheduling backup configurations:


4. STATUSGUARD GUI and drive S.M.A.R.T monitoring:


5. RAID 1 Scheduling backup status displayed via LCD screen:


6. Drives monitoring with LED light indicator.


7. Tray with KeyLock protection.


8. Hot-swappable and plug-and-play.


9. Compact size: Fits perfectly into a 5.25-inch CD-ROM bay,


10. Optimal heat management.


11. Advanced overheat or RAID malfunction alarm buzzer.


12. Rugged Metal constructed.


1.Flexible Data protection: The RAID 1 Scheduling backup configuration provides data redundancy with scheduling, so if one drive fails, the data is still accessible from the other drive.


2. Versatilities: Supports both SSD and hard drives, so you can choose the best storage solution for your needs.


3. Performance: Supports SATA 6Gbps, providing high-speed data transfer and optimal performance.


4.Ease of use: The STATUSGUARD GUI makes it easy to configure and monitor the RAID 1 Scheduling backup status.


5. Security: The Tray with KeyLock protection prevents unauthorized access to the drives.


6. Scalability: Can be easily expanded to support additional drives.


7. Heat management: Features a silent fan that helps to keep the drives cool, even under heavy load.


8. Overheat alarm: Alerts you if the temperature of the drives gets too high, preventing damage to the drives.

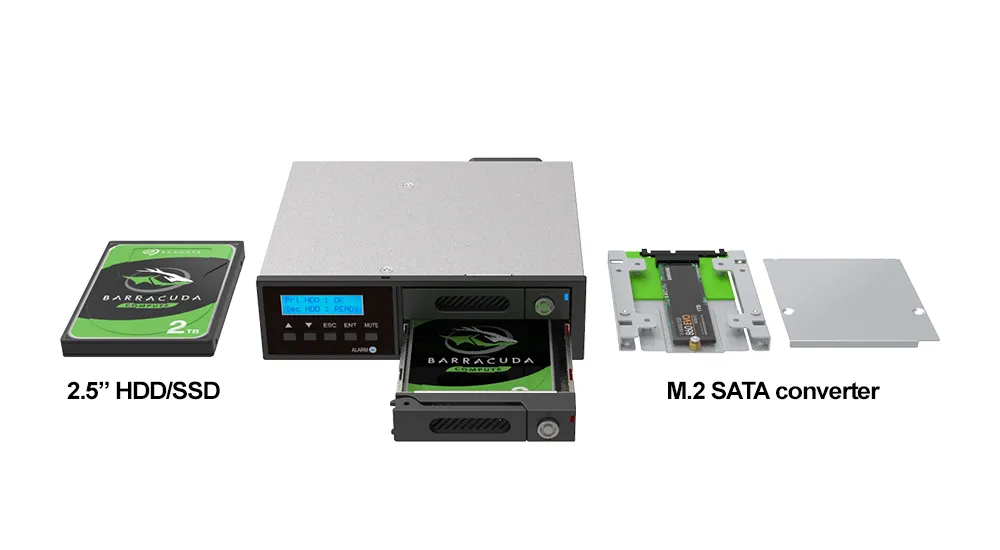

Flexible Storage options


The iR2022S offers an adaptable storage solution, seamlessly integrating with advanced M.2 drives when paired with the necessary M.2 SATA converter. This allows users to tap into the speed and efficiency of M.2 modules. In addition, the device is compatible with both Solid-State Drives (SSDs) and traditional Hard Disk Drives (HDDs), ensuring a versatile storage environment. By leveraging the M.2 SATA converter, the iR2022S strikes a balance between cutting-edge performance and expansive storage capacity.

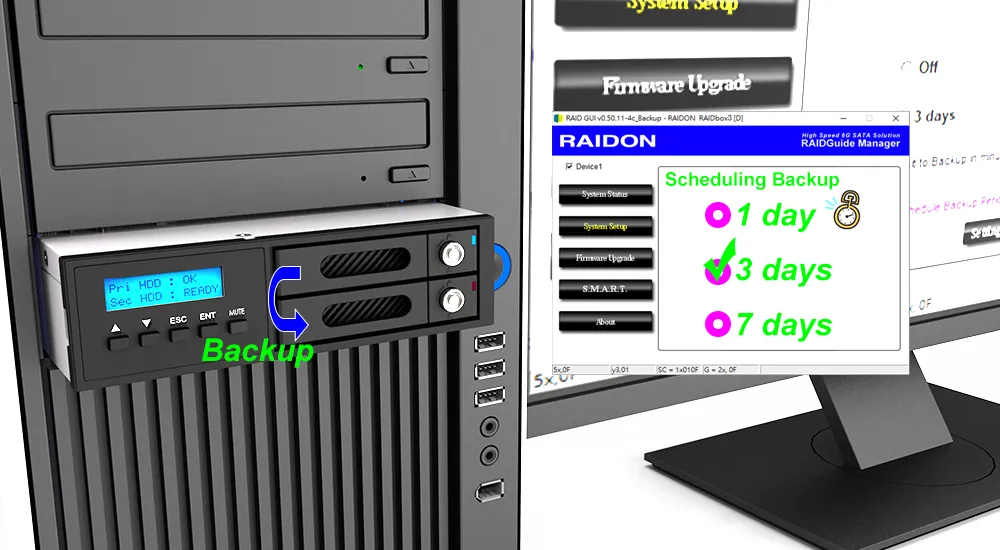

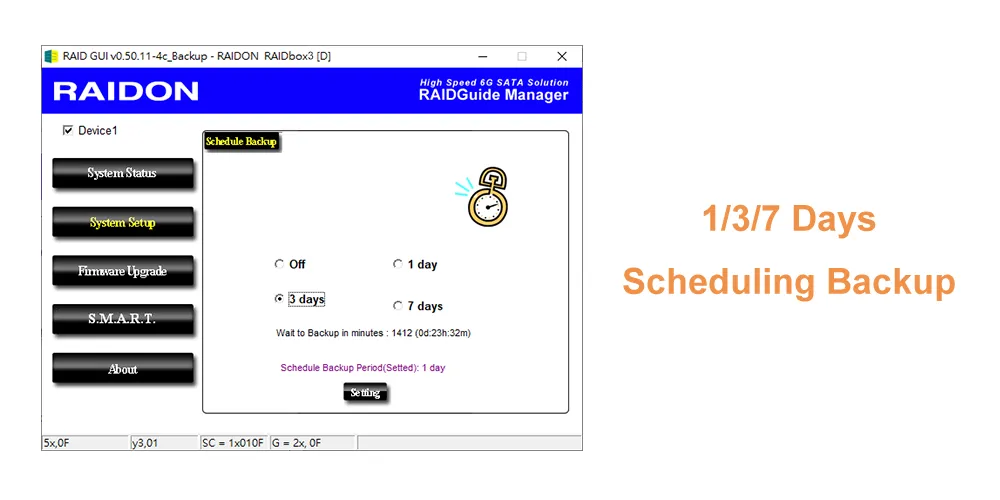

The iR2022S features 1, 3, or 7 days RAID 1 Scheduling Backup


Utilizing the RAIDON STATUSGUARD GUI, the iR2022S's RAID 1 Scheduling Backup feature can be efficiently configured at intervals of 1, 3, or 7 days. This user-centric interface streamlines the process, ensuring precision in data mirroring and bolstering resilience against unexpected data contingencies.

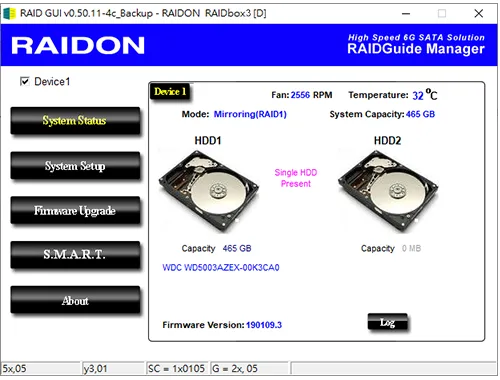

STATUSGUARD GUI and drive S.M.A.R.T monitoring


The iR2022S Internal RAID 1 scheduling backup device is a hardware controller that supports two 2.5-inch SATA 6.0 Gb/s SSDs or hard drives. It can be configured i at intervals of 1, 3, or 7 days. The Windows-based RAIDON STATUSGUARD GUI provides a graphical user interface for RAID 1 scheduling backup management and oversight. The GUI allows users to set and manage RAID 1 scheduling backup, monitor drive health, and troubleshoot problems.

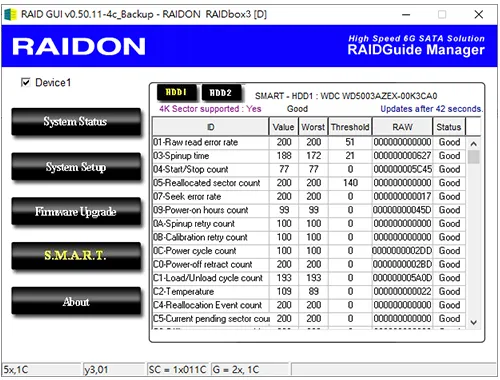

The iR2022S also incorporates S.M.A.R.T. technology, which provides real-time insights into drive health metrics. S.M.A.R.T. can be used to detect potential drive issues early, such as bad sectors or pending errors. This allows users to take corrective action before a drive fails, such as replacing the drive or backing up the data.

High-speed Transmission with SATA 6G Bandwidth


The iR2022S is adeptly designed to maintain the robust SATA 6G speed, even when executing RAID 1 scheduling backup functions. This ensures that users benefit from consistently swift data transfers and reduced latency. By preserving the 6G bandwidth during RAID 1 scheduling backup operations, the device solidifies its commitment to delivering uninterrupted, top-tier storage performance.

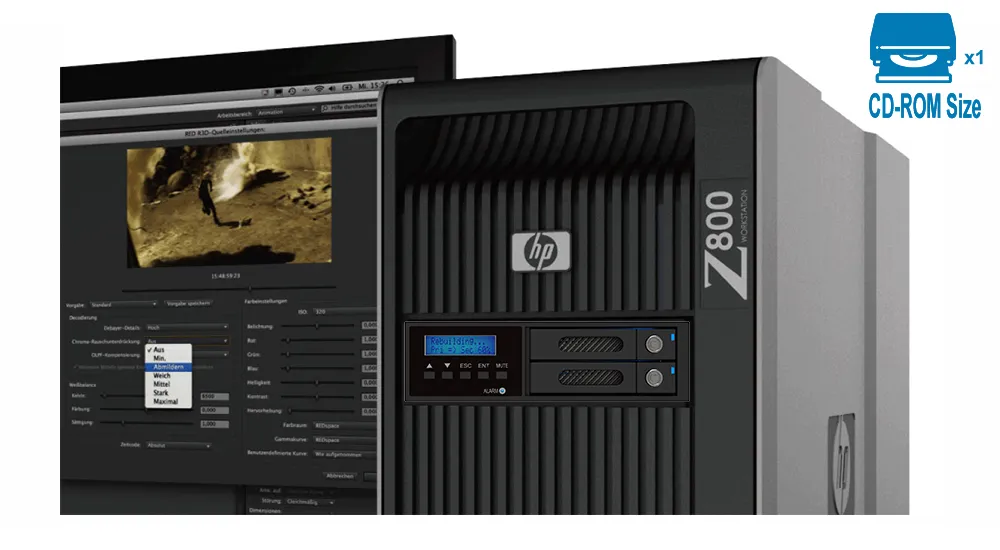

Compact size: Fits perfectly into an optical drive bay


The iR2022S is precision-engineered with a compact form factor specifically tailored to seamlessly integrate into a 5.25-inch CD-ROM or optical drive bay. This meticulous design choice not only ensures optimal space utilization within computing or server environments but also facilitates a straightforward installation process. The unit's dimensions harmonize perfectly with the standardized dimensions of traditional optical drive slots, thus obviating the need for special tools or modifications. This compactness does not compromise its performance or functionality; instead, it offers an elegant solution for those aiming to enhance storage capabilities without disrupting the existing spatial dynamics of their setups.

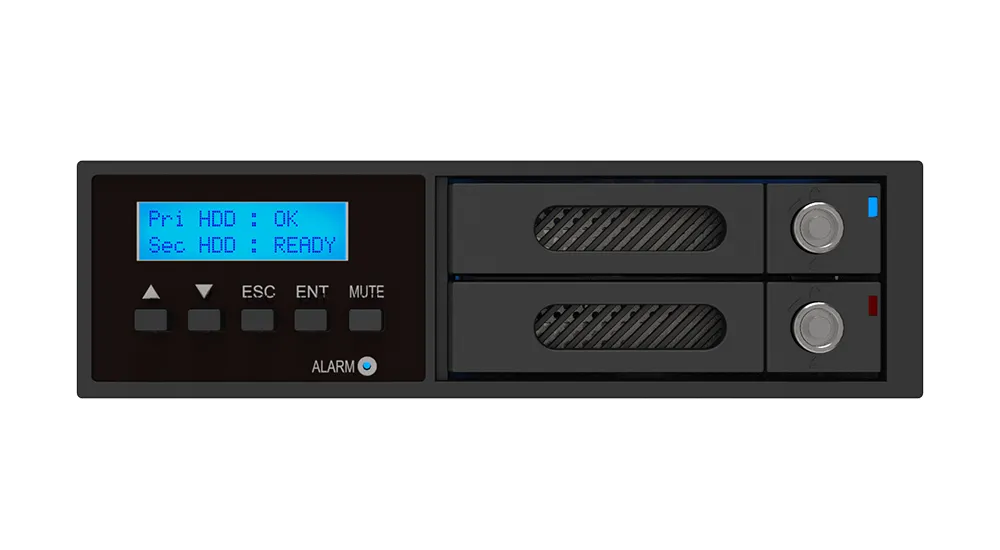

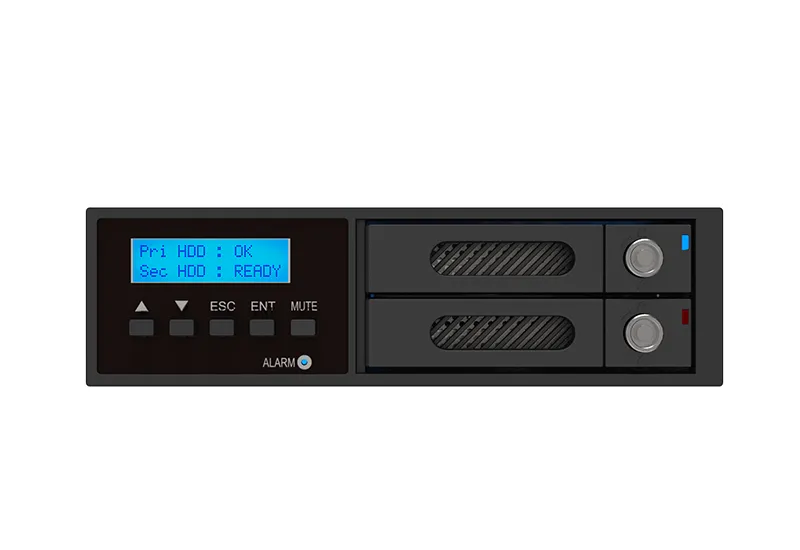

RAID 1 Scheduling Backup status displayed via LCD screen


The iR2022S comes equipped with a state-of-the-art LCD status screen that dynamically displays the RAID 1 Scheduling Backup status. This user-friendly feature provides an at-a-glance view of the storage arrangement, including real-time updates on RAID 1 scheduling backup and data management status. The clear and concise display ensures that users can quickly understand and manage the system's performance and storage parameters, effectively reducing the complexity of data management. With the iR2022S's LCD status screen, staying informed and in control of the storage system has never been more straightforward. Overall, the LCD status screen is a valuable tool that helps users to stay informed and in control of the iR2022S's storage system. It is a user-friendly feature that provides real-time updates on the system's status, making it easy to manage and troubleshoot problems.


Drives Monitoring with LED light indicators


The iR2022S incorporates advanced drive monitoring via LED light indicators, a pivotal feature that uses distinct light patterns and colors to signify various operational states and conditions of the drives. These LEDs offer immediate visual feedback, ranging from drive activity and data access to potential anomalies and errors. The color-coded system — typically red, green, and amber — differentiates between drive statuses such as idle, read/write operations, and potential drive health concerns. This immediate, on-device feedback system enables IT professionals and users to swiftly detect, diagnose, and take necessary actions, thereby ensuring optimal drive performance and minimizing unplanned downtimes.

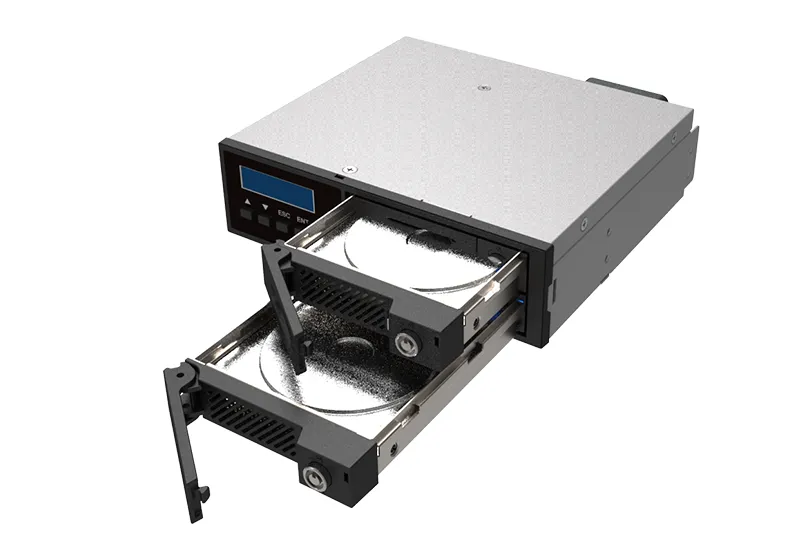

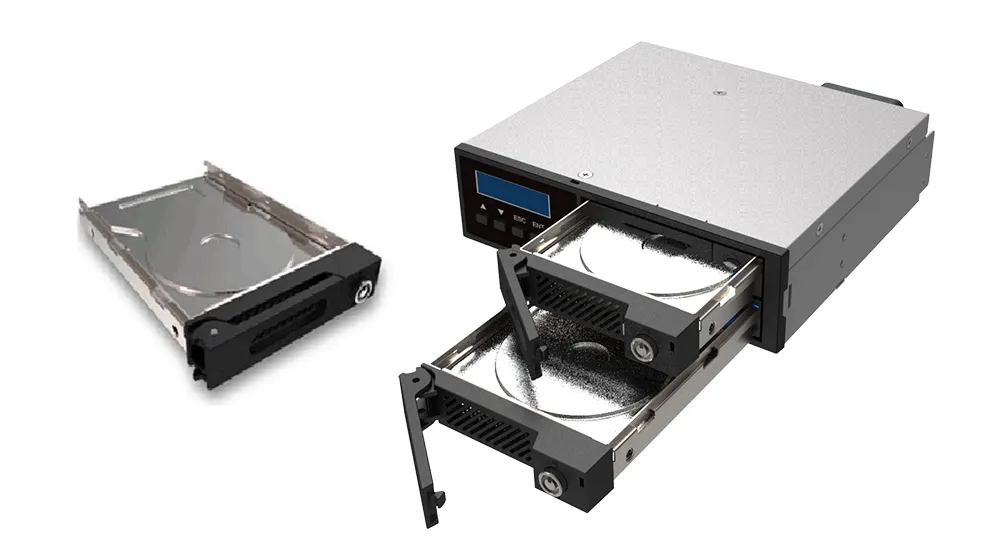

Tray with Key Lock protection


The iR2022S integrates a meticulously designed tray system featuring key lock protection, an essential measure for ensuring data security and physical access control. This tray mechanism is engineered with precision, providing a snug fit for drives while ensuring they remain inaccessible to unauthorized personnel. The key lock feature is not merely a physical deterrent; it's a symbol of the device's commitment to safeguarding data integrity. By incorporating a mechanical key system, the tray ensures that drive removal or tampering is restricted to individuals possessing the corresponding key. In environments where data security is paramount, such as data centers or sensitive industry sectors, this feature significantly reduces the risk of data breaches due to physical interventions



Hot swappable and plug and play


The iR2022S seamlessly integrates hot-swappable and plug-and-play functionalities. Its hot-swappable design ensures drives can be replaced without halting system operations, maximizing uptime. Simultaneously, the plug-and-play feature ensures automatic drive recognition and configuration upon insertion, eliminating manual setup hassles. Together, these attributes enhance the iR2022S's operational efficiency and user convenience in dynamic storage environments.

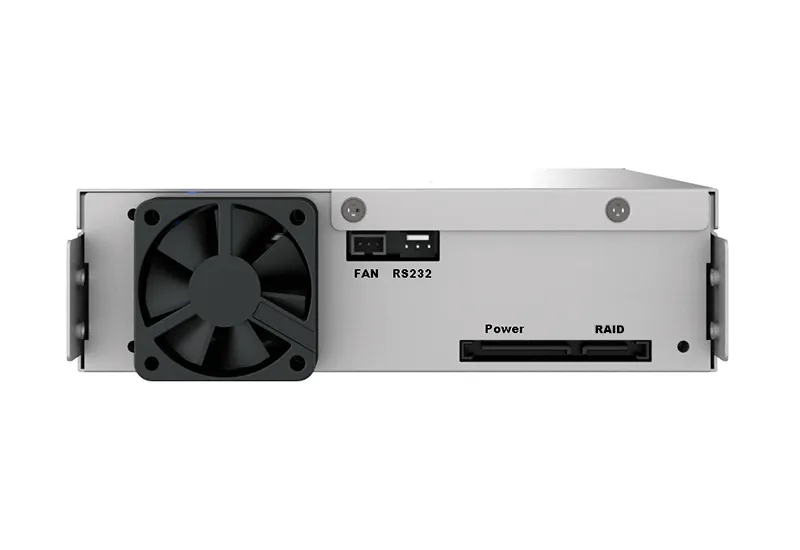

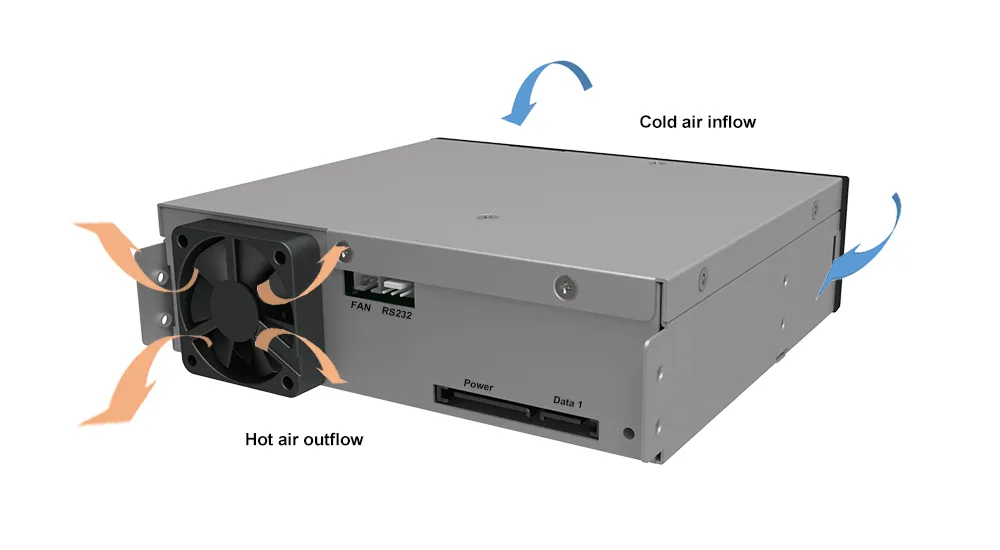

Optimal heat management


The iR2022S showcases advanced heat management through a well-orchestrated airflow design and an integrated silent fan for active cooling. This synergy ensures uniform temperature distribution across all storage drives, mitigating thermal-related risks. With its responsive cooling mechanism, the system consistently delivers peak performance while operating quietly, even under heavy workloads.


Advanced overheat or RAID malfunction alarm buzzer


The iR2022S is equipped with an advanced alarm buzzer that vigilantly monitors both internal temperatures and RAID functionality. In the event of overheating or RAID irregularities, the buzzer sounds a prompt alert, enabling quick user intervention. This dual-alert system reinforces the iR2022S's dedication to data security and optimal system performance.


The iR2022S, given its features and capabilities, can serve a multitude of applications. Here are some potential use cases:


1. Enterprise Servers: With its RAID 1 scheduling backup and advanced monitoring features, the iR2022S can be crucial for businesses that prioritize data integrity and redundancy.


2. Workstations: Professionals in fields like graphic design, video editing, engineering, or any domain that handles large files would benefit from the speed, storage capacity, and data redundancy the iR2022S provides.


3. Data Centers: For centers that require consistent performance and high data availability, the device's hot-swapping, and plug-and-play capabilities could be invaluable.


4. Surveillance Systems: With continuous data recording, redundancy, and the need for reliable storage, surveillance systems can leverage the iR2022S for optimal performance.


5. Gaming PCs: Modern games can be data-intensive. Gamers looking for faster load times, paired with data security, might find the iR2022S beneficial.

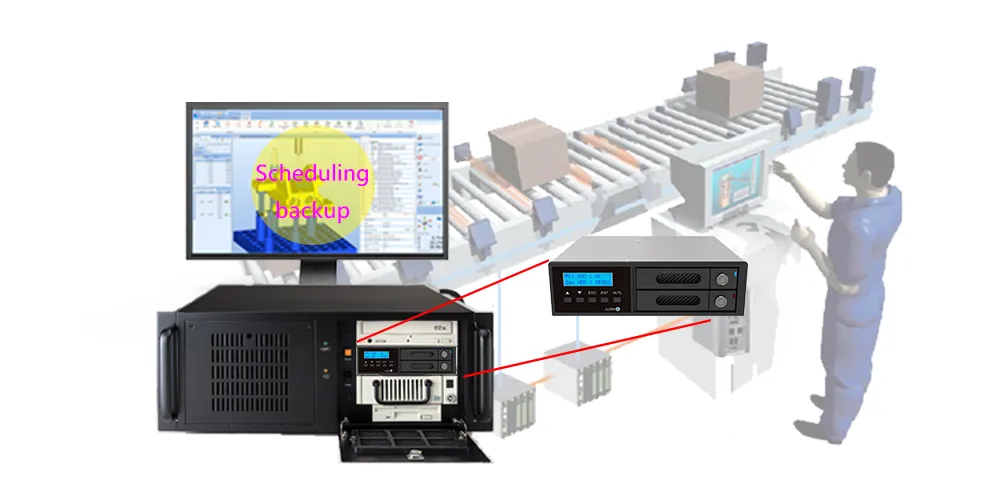

6. Industrial PCs: In manufacturing or automation scenarios, where system uptime and data reliability are essential, the iR2022S can provide a robust storage solution.


7. Digital Media Libraries: For organizations or individuals with extensive digital media collections, the device ensures quick access, reliable storage, and data security.


8. Research & Academic Institutions: For data-heavy research and academic projects where data loss can be catastrophic, the iR2022S provides a safety net with its RAID 1 scheduling backup capabilities.


9. Medical Imaging Systems: Systems like MRIs or CT scanners that produce large image files could benefit from the iR2022S's speed and redundancy features.


10. Backup & Archiving Solutions: Companies or individuals looking for reliable backup solutions might use the iR2022S to regularly archive critical data.


Given its versatile features, the iR2022S can find a place in almost any environment that prioritizes data storage, speed, and reliability.

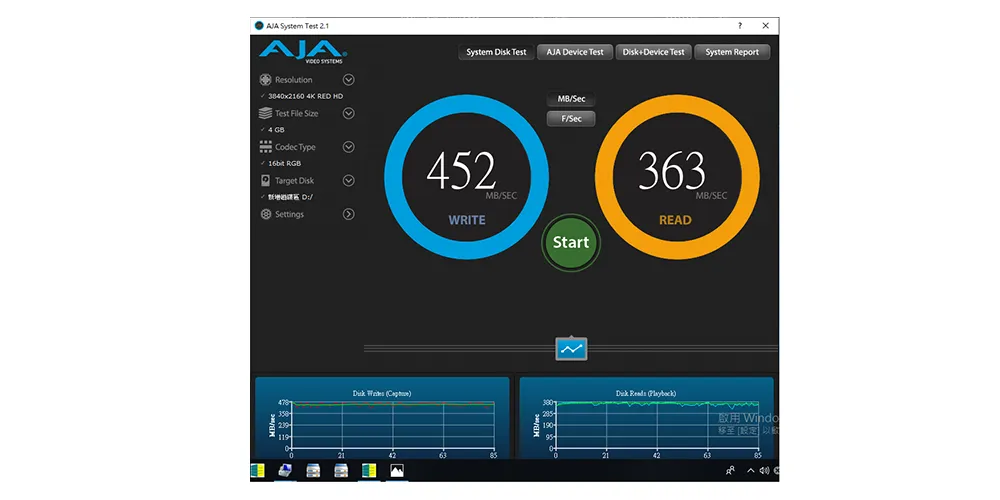

Performance test result for reference. The test result will vary depend on the test environment.

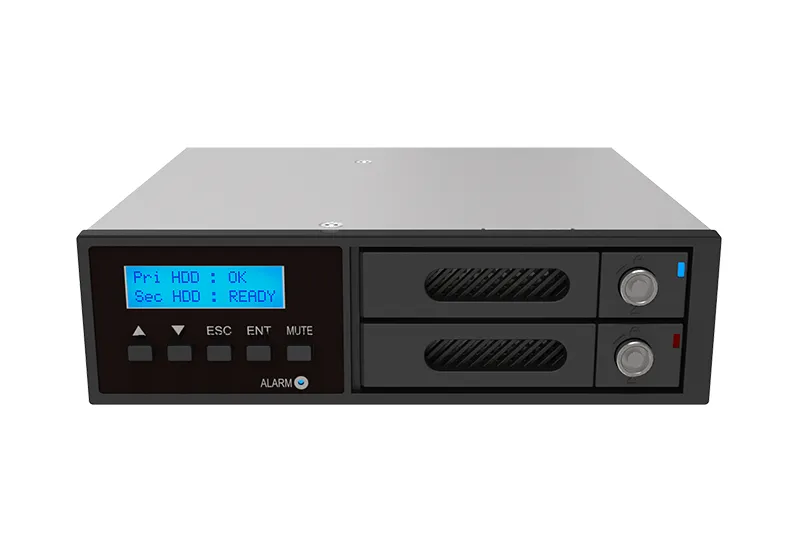

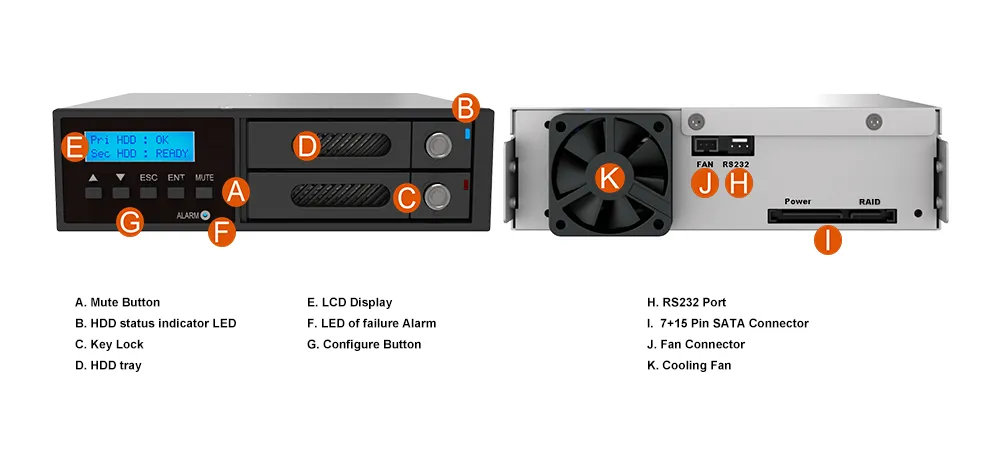

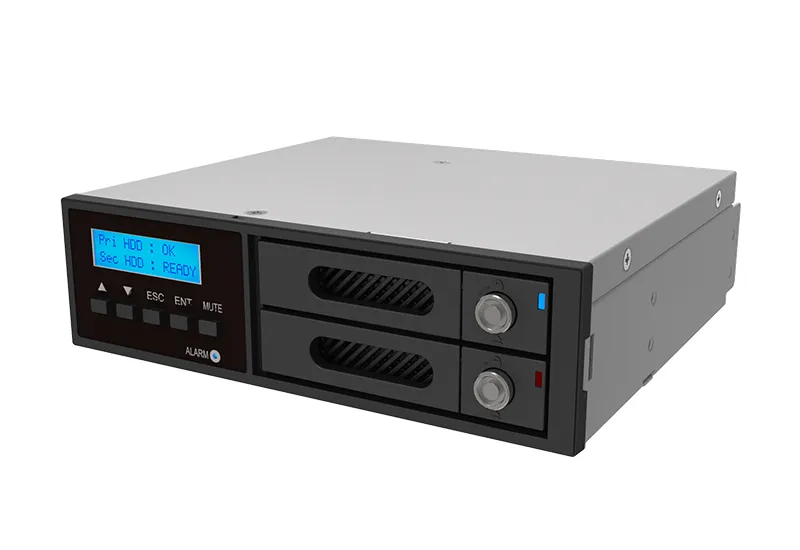

Product View


Model No iR2022S
Interfaces SATA III 6Gbps Connector (7Pin)
Compatible Drives 2 x 2.5” SATA III HDD/SSD
Storage Level Scheduling Backup
System Monitoring Fan Failure / Overheat
Operating System Windows 7 or above
Function Control
GUI (Windows Only)
Cooling System 4 cm Low noise fan
Electrical and
* Line voltage: 12V + 5V DC
* Operating temperature: 32° to 104° F (0° to 40° C)
* Storage temperature: -4° to 116° F (-20° to 47° C)
* Relative humidity: 5% to 95% non-condensing
Dimension & Weight 148(W)x 43(H) x 140(L) mm
Product Code iR2022S
Carton 10 pcs per carton
Package Accessories *iR2022S
*SATA Cable
*Accessory Kit-for Tray
*Accessory Kit-for Case
*Quick installation guide


Related Products









>>>> More External RAID Storage

iR2022S Download

Scheduling backup GUI Software for Windows

iR2022S Question & Answer


iR2022S HD Compatible List

Product Name BrandHD TypeHD CategoryModel NumberCapacity Note
iR2022SHitachi2.5" HDD HTS721010A9E6301TB
iR2022SHitachi2.5" HDD HTS545050B9A300500GB
iR2022SSeagate2.5" HDD ST9160314AS160GB
iR2022SToshiba2.5" HDD MQ01ABF050500GB
iR2022SToshiba2.5" HDD MQ01ACF050500GB
iR2022SToshiba2.5" HDD MQ01ABD1001TB
iR2022SWD2.5" HDD WD800BEVS-00LAT080GB
iR2022SADATA2.5" SSD ASX900S3-64GM64GB
iR2022SADATA2.5" SSDUltimate SU800256GB
iR2022SIntel2.5" SSD SSDSA2M040G2GC40GB
iR2022SIntel2.5" SSD SSD530120GB
iR2022SKingston2.5" SSD 300V120GB
iR2022SKingston2.5" SSD SHSS37A240GB
iR2022SSamsung2.5" SSD 850 Pro128GB
iR2022SSanDisk2.5" SSD SDSSDA-240G240GB
iR2022SInnodisk2.5" SSD 3MG2-P128GB
iR2022SWD2.5" SSD WDS200T2B0A2TB
iR2022SSeagate2.5" SSD XA480LE10063480GB
iR2022SSeagate2.5" SSD ZA960NM10001960GB
iR2022SSamsung2.5" SSD MZ-76E250BW250GB
iR2022SSamsung2.5" SSD MZ-76E500BW 500GB
iR2022SSamsung2.5" SSD MZ-76E1T0BW 1TB
iR2022SSamsung2.5" SSD MZ-76E2T0BW2TB
iR2022SSamsung2.5" SSD MZ-76E4T0BW4TB
iR2022SEmBestor2.5" SSD EC3S2T-512GCJDYM44512GB
iR2022SPioneer2.5" SSDAPS-SL3NAPS-SL3N-1T1TB ( uses cookies to improve site functionality and your overall experience by storing necessary information for service delivery. By continuing, you consent to our use of cookies as detailed in our Privacy Policy, which provides more information about this usage. (Accept cookies to continue browsing the website)
