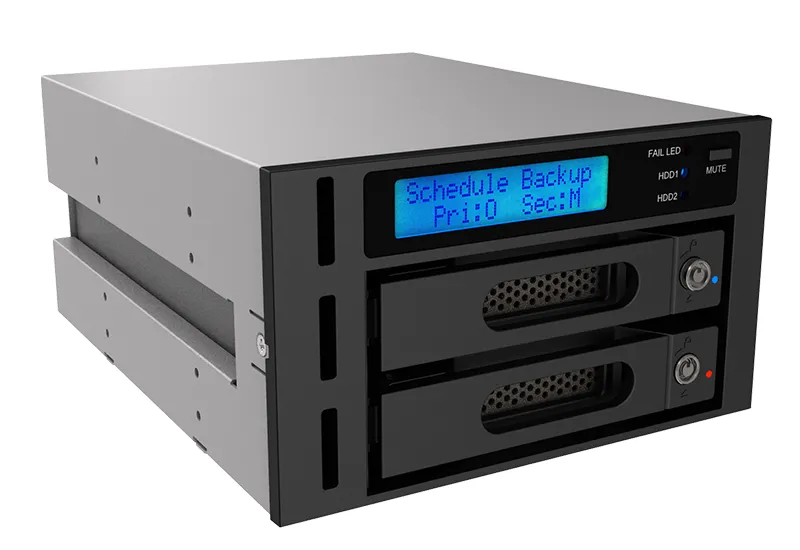

InTANK Series


iR2622S: RAID 1 Scheduling backup is a convenient way to protect data and extend the lifespan of drives.


The iR2622S features a new RAID 1 scheduling backup function. Users can use the RAIDON STATUSGUARD GUI software to set up a time schedule for backups, which can help to protect disk array from corruption and system failure. This function can also help to extend the life cycle of drives.



1. Flexible storage options: Supports 3.5” hard drives SSD Compatibility.


2. Comprehensive support for SATA 6G.


3. RAID 1 Scheduling Backup configurations.


4. STATUSGUARD GUI and drive S.M.A.R.T monitoring.


5. RAID 1 Scheduling Backup status displayed via LCD screen.


6. Drives monitoring with LED light indicator.


7. Tray with KeyLock protection.


8. Hot-swappable and plug-and-play.


9. Compact size: Fits perfectly into two 5.25-inch CD-ROM bay.


10. Optimal heat management.


11. Advanced overheat or RAID malfunction alarm buzzer.


12. Rugged Metal constructed.



1. Flexible Data protection: The RAID 1 Scheduling Backup configuration provides data redundancy with scheduling, so if one drive fails, the data is still accessible from the other drive.


2. Versatilities: Supports both SSD and hard drives, so you can choose the best storage solution for your needs.


3. Performance: Supports SATA 6Gbps, providing high-speed data transfer and optimal performance.


4. Ease of use: The STATUSGUARD GUI makes it easy to configure and monitor the RAID 1 Scheduling Backup status.


5. Security: The Tray with KeyLock protection prevents unauthorized access to the drives.


6. Heat management: Features a silent fan that helps to keep the drives cool, even under heavy load.


7. Overheat alarm: Alerts you if the temperature of the drives gets too high, preventing damage to the drives.


Flexible Storage Options with 3.5” Hard Drive or SSD Compatibility


Compatible with both 3.5” hard drives and SSD (solid-state drives), the iR2622S allows for a diverse range of storage options. Whether you're aiming for affordability or speed, this device is designed to meet your storage needs.

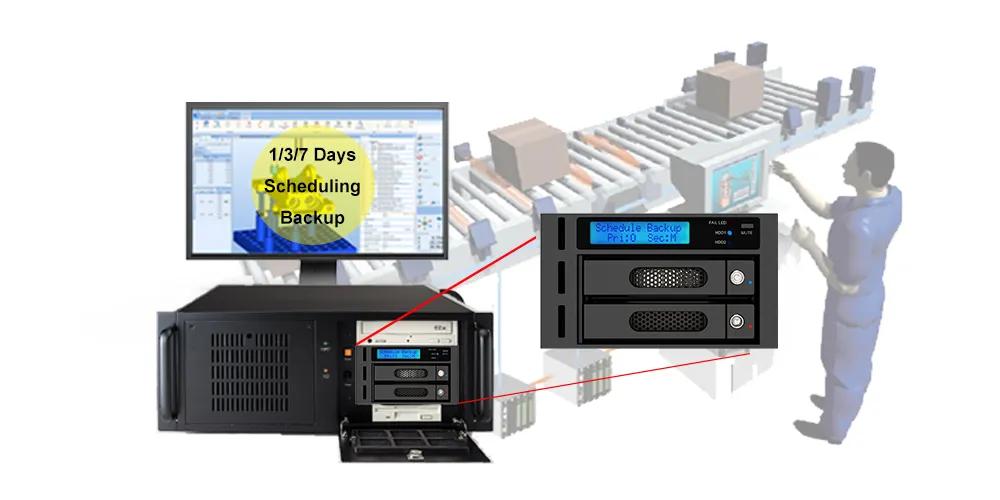

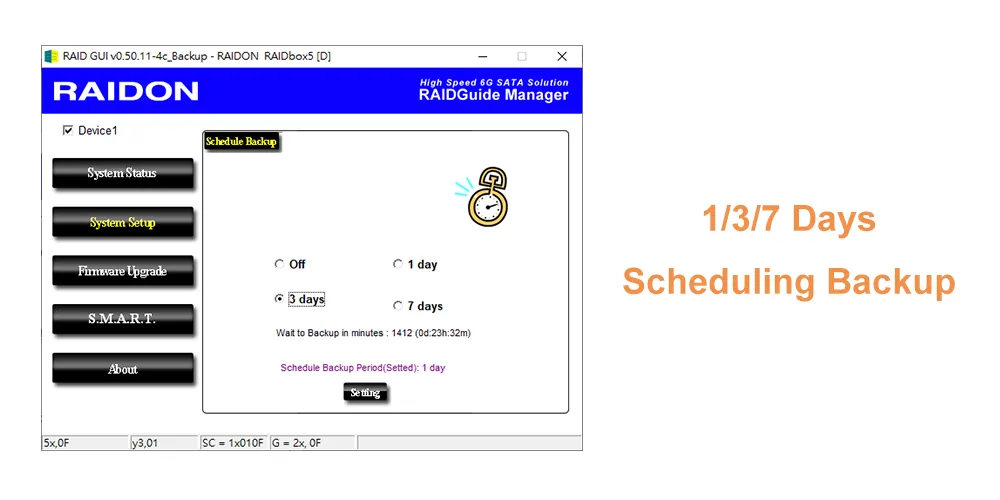

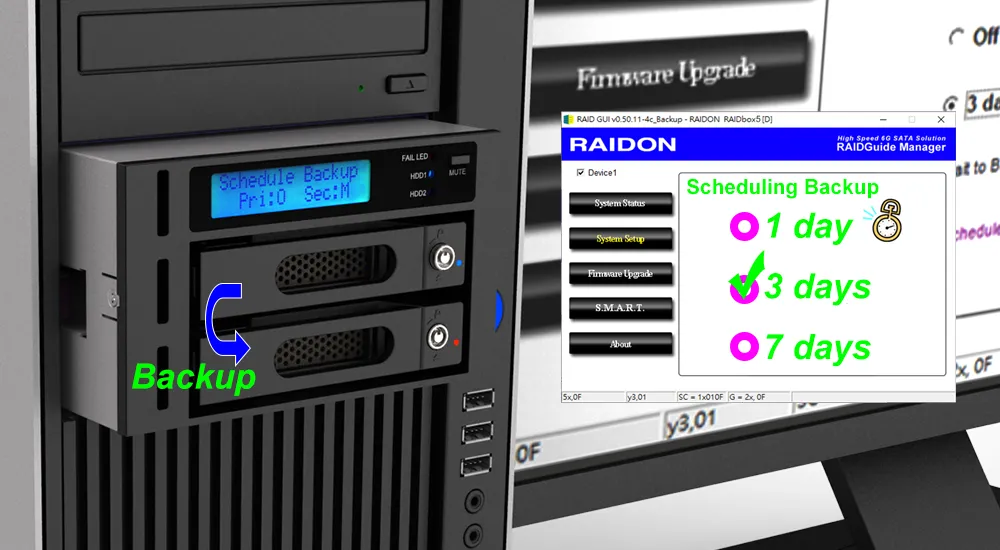

The iR2622S features 1, 3, or 7 days RAID 1 Scheduling Backup


Utilizing the RAIDON STATUSGUARD GUI, the iR2622S's RAID 1 Scheduling Backup feature can be efficiently configured at intervals of 1, 3, or 7 days. This user-centric interface streamlines the process, ensuring precision in data mirroring and bolstering resilience against unexpected data contingencies.

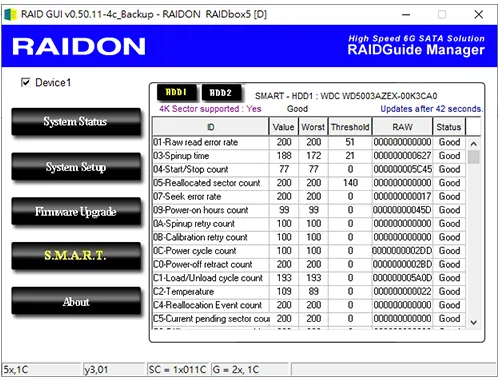

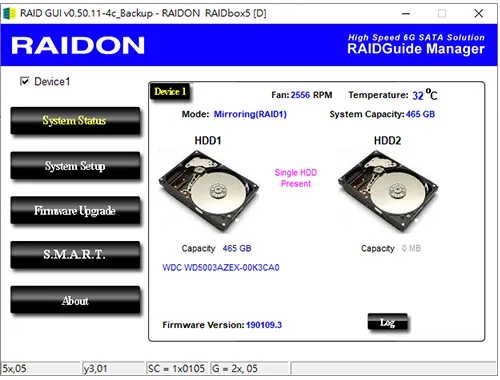

STATUSGUARD GUI and drive S.M.A.R.T monitoring


The iR2622S Internal RAID 1 scheduling backup device is a hardware controller that supports two 3.5-inch SATA 6.0 Gb/s hard drives or SSDs. It can be configured i at intervals of 1, 3, or 7 days. The Windows-based RAIDON STATUSGUARD GUI provides a graphical user interface for RAID 1 scheduling backup management and oversight. The GUI allows users to set and manage RAID 1 scheduling backup, monitor drive health, and troubleshoot problems.


The iR2622S also incorporates S.M.A.R.T. technology, which provides real-time insights into drive health metrics. S.M.A.R.T. can be used to detect potential drive issues early, such as bad sectors or pending errors. This allows users to take corrective action before a drive fails, such as replacing the drive or backing up the data.

High-speed Transmission with SATA 6G Bandwidth

The iR2622S is adeptly designed to maintain the robust SATA 6G speed, even when executing RAID 1 scheduling backup functions. This ensures that users benefit from consistently swift data transfers and reduced latency. By preserving the 6G bandwidth during RAID 1 scheduling backup operations, the device solidifies its commitment to delivering uninterrupted, top-tier storage performance.

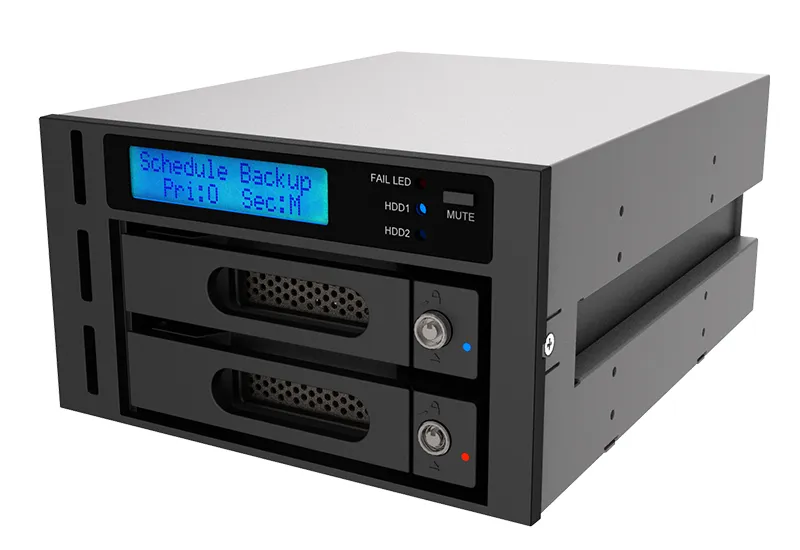

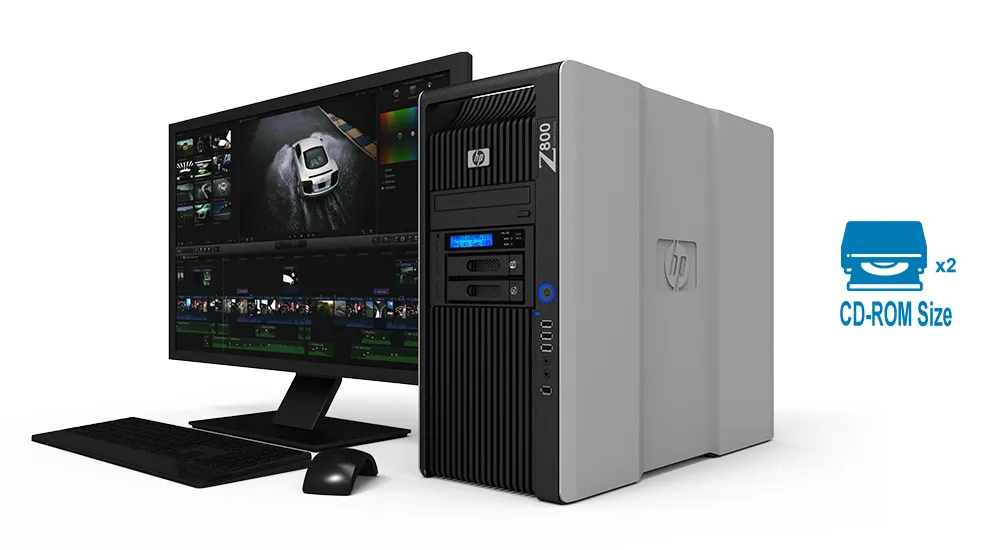

Compact Size: Fits Perfectly into Two 5.25-Inch CD-ROM Bays


Despite its wide range of features, the iR2622S sports a compact design. It fits perfectly into two 5.25-inch CD-ROM bays, offering a versatile solution that maximizes the usage of your space without compromising on functionality.

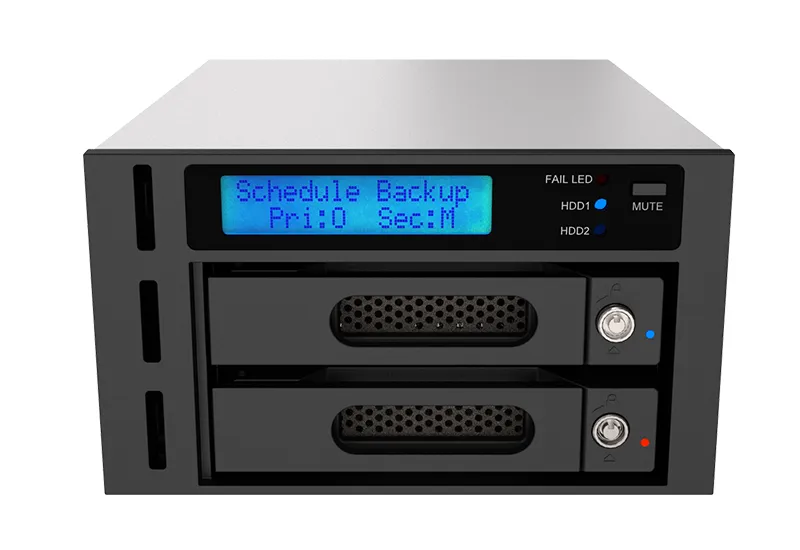

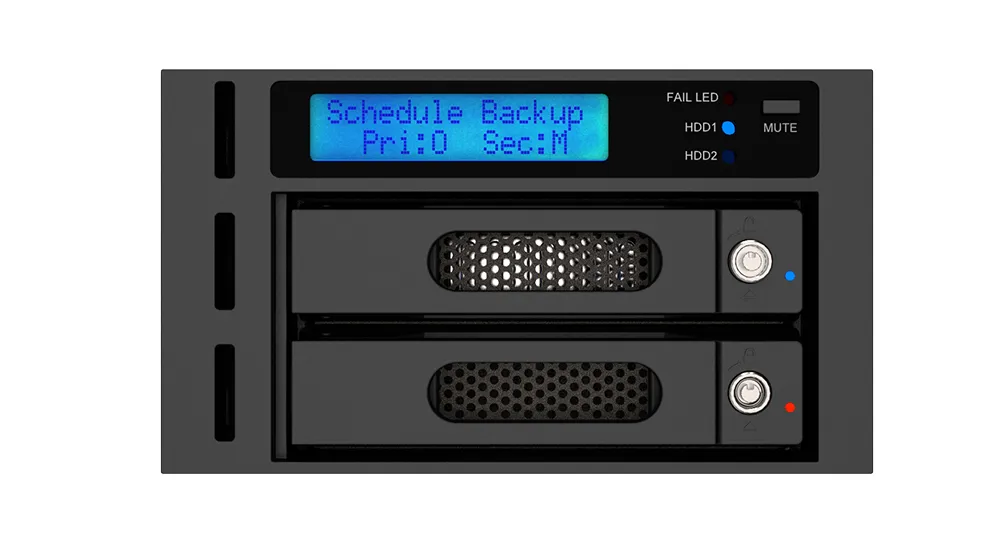

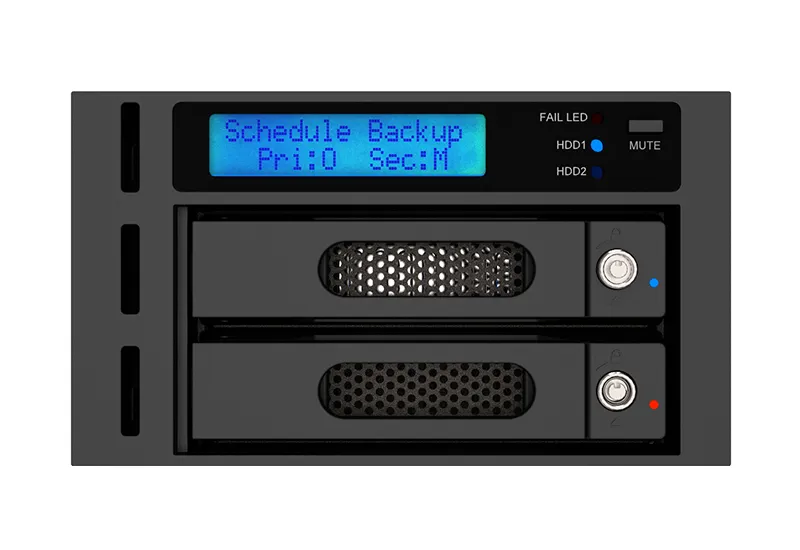

RAID 1 Scheduling Backup status displayed via LCD screen


The iR2622S comes equipped with a state-of-the-art LCD status screen that dynamically displays the RAID 1 Scheduling Backup status. This user-friendly feature provides an at-a-glance view of the storage arrangement, including real-time updates on RAID 1 scheduling backup and data management status. The clear and concise display ensures that users can quickly understand and manage the system's performance and storage parameters, effectively reducing the complexity of data management. With the iR2622S's LCD status screen, staying informed and in control of the storage system has never been more straightforward. Overall, the LCD status screen is a valuable tool that helps users to stay informed and in control of the iR2622's storage system. It is a user-friendly feature that provides real-time updates on the system's status, making it easy to manage and troubleshoot problems.



LED Light indicators


The iR2622S features a separate LED display for each hard disk or SSD, presenting data access status or the condition of the hard disk or SSD concisely. This allows users to stay informed about the overall status of the iR2622S at any time.

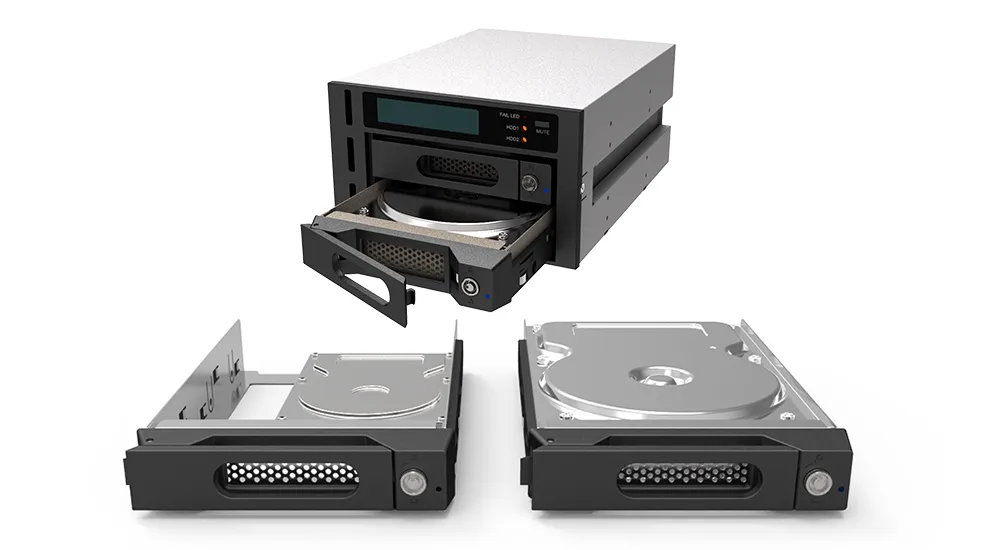

Tray with Key Lock protection


The iR2622S integrates a meticulously designed tray system featuring key lock protection, an essential measure for ensuring data security and physical access control. This tray mechanism is engineered with precision, providing a snug fit for drives while ensuring they remain inaccessible to unauthorized personnel. The key lock feature is not merely a physical deterrent; it's a symbol of the device's commitment to safeguarding data integrity. By incorporating a mechanical key system, the tray ensures that drive removal or tampering is restricted to individuals possessing the corresponding key. In environments where data security is paramount, such as data centers or sensitive industry sectors, this feature significantly reduces the risk of data breaches due to physical interventions



Hot swappable and plug and play


The iR2622S seamlessly integrates hot-swappable and plug-and-play functionalities. Its hot-swappable design ensures drives can be replaced without halting system operations, maximizing uptime. Simultaneously, the plug-and-play feature ensures automatic drive recognition and configuration upon insertion, eliminating manual setup hassles. Together, these attributes enhance the iR2622S's operational efficiency and user convenience in dynamic storage environments.

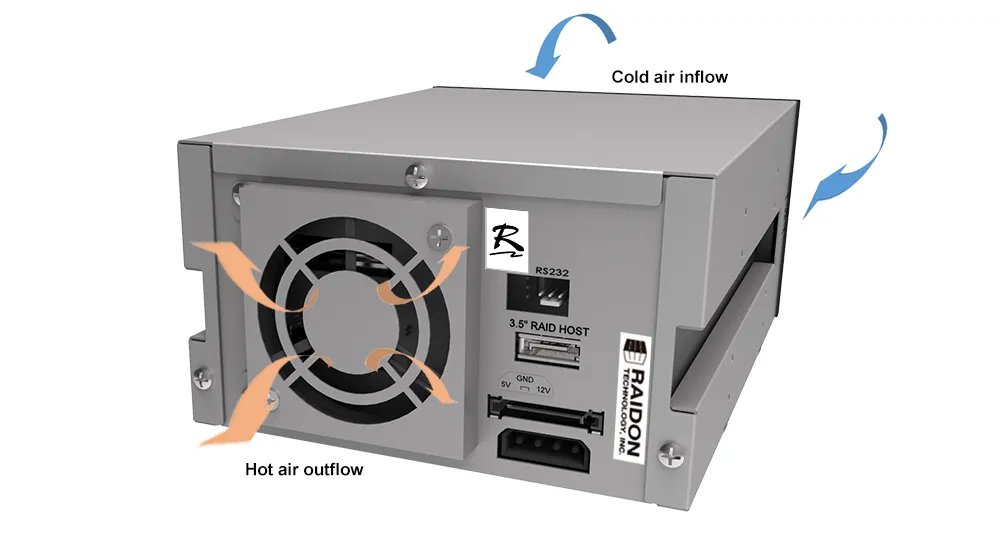

Efficient Heat Dissipation with MCU Control


Keeping your drives cool is paramount for the longevity of your data and hardware. That’s why the iR2622S features a built-in MCU controlled cooling system, ensuring efficient heat dissipation and maintaining optimal operating temperatures for your drives.



Advanced overheat or malfunction alarm buzzer


The iR2622S is equipped with an advanced alarm buzzer that vigilantly monitors both internal temperatures and functionality. In the event of overheating or irregularities, the buzzer sounds a prompt alert, enabling quick user intervention. This dual-alert system reinforces the iR2622S's dedication to data security and optimal system performance.


The iR2622S, given its features and capabilities, can serve a multitude of applications. Here are some potential use cases:


1. Enterprise Servers: With its RAID 1 scheduling backup and advanced monitoring features, the iR2622S can be crucial for businesses that prioritize data integrity and redundancy.



2. Workstations: Professionals in fields like graphic design, video editing, engineering, or any domain that handles large files would benefit from the speed, storage capacity, and data redundancy the iR2622S provides.



3. Data Centers: For centers that require consistent performance and high data availability, the device's hot-swapping, and plug-and-play capabilities could be invaluable.



4. Surveillance Systems: With continuous data recording, redundancy, and the need for reliable storage, surveillance systems can leverage the iR2622S for optimal performance.



5. Gaming PCs: Modern games can be data-intensive. Gamers looking for faster load times, paired with data security, might find the iR2622S beneficial.



6. Industrial PCs: In manufacturing or automation scenarios, where system uptime and data reliability are essential, the iR2622S can provide a robust storage solution.



7. Digital Media Libraries: For organizations or individuals with extensive digital media collections, the device ensures quick access, reliable storage, and data security.



8. Research & Academic Institutions: For data-heavy research and academic projects where data loss can be catastrophic, the iR2622S provides a safety net with its RAID 1 scheduling backup capabilities.



9. Medical Imaging Systems: Systems like MRIs or CT scanners that produce large image files could benefit from the iR2622S's speed and redundancy features.



10. Backup & Archiving Solutions: Companies or individuals looking for reliable backup solutions might use the iR2622S to regularly archive critical data.


All these applications demonstrate how the iR2622S can significantly enhance data management in IPC and automation environments.

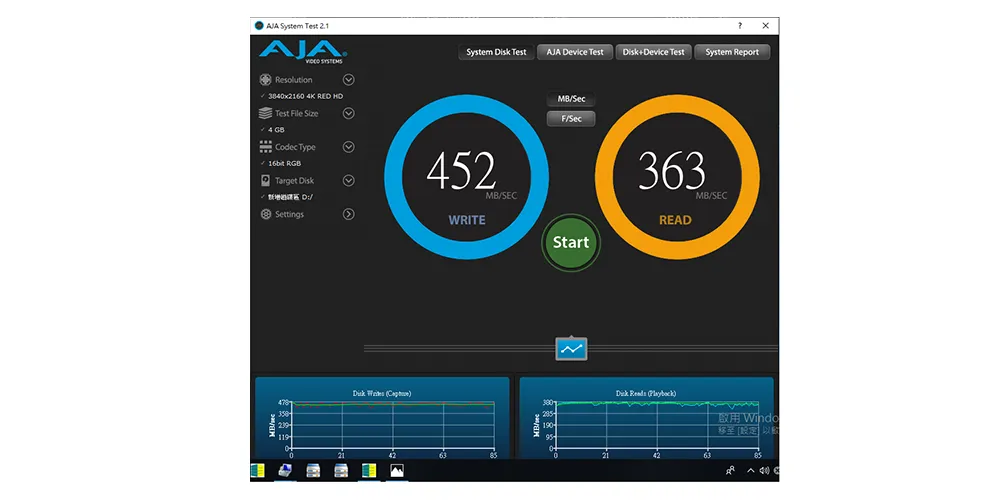

Performance test result for reference. The test result will vary depend on the test environment.

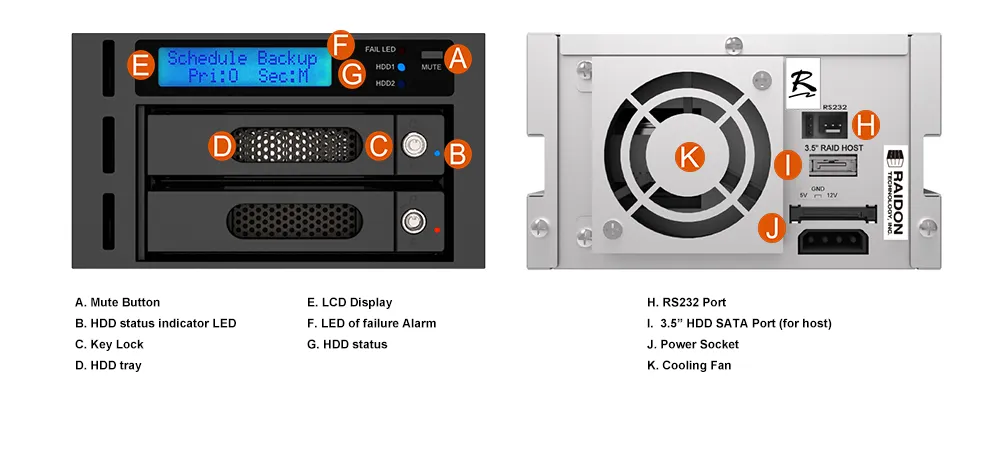

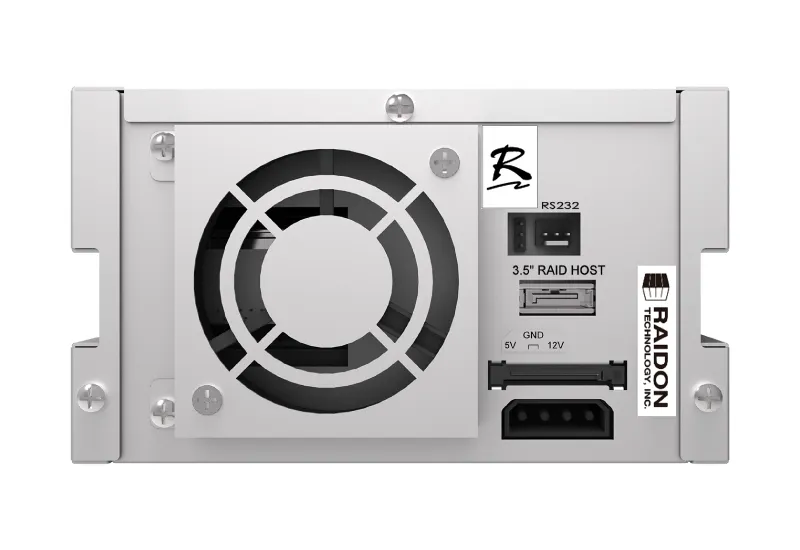

Product View


Model No iR2622S
Interfaces 1 x SATA III (6Gbps) Port
Compatible Drives 2 x 2.5”-3.5” SATA III HDD/SSD
Storage Level Scheduling Backup
System Monitoring Fan Failure / Overheat
Operating System Windows 7 or above
Function Control
GUI (Windows Only)
Cooling System 6 cm Low noise fan
Electrical and
* Line voltage: 12V + 5V DC
* Operating temperature: 32° to 104° F (0° to 40° C)
* Storage temperature: -4° to 116° F (-20° to 47° C)
* Relative humidity: 5% to 95% non-condensing
Dimension & Weight 146(W)x 85(H) x 202(L) mm
Product Code iR2622S
EAN: 4713227440752
UPC: 884826505310
Carton 8 pcs per carton
Package Accessories *iR2622S
*SATA Cable
*Accessory Kit-for Tray
*Accessory Kit-for Case
*Quick installation guide


Related Products









>>>> More External RAID Storage

iR2622S Download

Image Download Scheduling backup GUI Software for Windows

iR2622S Question & Answer


iR2622S HD Compatible List

Product Name BrandHD TypeHD CategoryModel NumberCapacity Note
iR2622SToshiba2.5" HDD MQ01ABD1001TB
iR2622SADATA2.5" SSD ASX900S3-64GM64GB
iR2622SADATA2.5" SSDUltimate SU800256GB
iR2622SKingston2.5" SSD SHSS37A240GB
iR2622SSamsung2.5" SSD 850 Pro128GB
iR2622SSanDisk2.5" SSD SDSSDA-240G240GB
iR2622SHitachi3.5" HDDUltrastarHUS724040ALA6404TB
iR2622SHitachi3.5" HDDMegaScaleHMS5C4040ALE6404TB
iR2622SHitachi3.5" HDDUltrastarHUH728080ALE6008TB
iR2622SSeagate3.5" HDDIronWolf (NAS)ST10000VN000410TB
iR2622SSeagate3.5" HDDIronWolf Pro (NAS)ST10000NE000810TB
iR2622SSeagate3.5" HDDEnterpriseST10000NM001610TB
iR2622SSeagate3.5" HDDIronWolf (NAS)ST12000VN000712TB
iR2622SSeagate3.5" HDDIronWolf (NAS)ST10000VN000810TB
iR2622SSeagate3.5" HDDIronWolf Pro (NAS)ST10000NE000410TB
iR2622SSeagate3.5" HDDIronWolf Pro (NAS)ST14000NE000814TB
iR2622SToshiba3.5" HDD MG04ACA200E2TB
iR2622SToshiba3.5" HDD MG04ACA50DE5TB
iR2622SWD3.5" HDDRedWD3000FYYZ3TB
iR2622SWD3.5" HDDAV-GP VelociRaptorWD4000F9YZ4TB
iR2622SWD3.5" HDDGoldWD6002FRYZ6TB
iR2622SWD3.5" HDDGoldWD8002FRYZ8TB
iR2622SWD3.5" HDDRedWD100EFAX10TB
iR2622SWD3.5" HDDBlackWD5003AZEX500GB
iR2622SSeagate3.5" HDDIronWolf Pro (NAS)ST8000NE0018TB
iR2622SSeagate3.5" HDDIronWolf (NAS)ST8000VN0048TB
iR2622SInnodisk2.5" SSD 3MG2-P128GB
iR2622SWD2.5" SSD WDS200T2B0A2TB
iR2622SWD3.5" HDD HUH721010ALE60010TB
iR2622SSamsung2.5" SSD MZ-76E250BW250GB
iR2622SSamsung2.5" SSD MZ-76E500BW 500GB
iR2622SSamsung2.5" SSD MZ-76E1T0BW 1TB
iR2622SSamsung2.5" SSD MZ-76E2T0BW2TB
iR2622SSamsung2.5" SSD MZ-76E4T0BW4TB
iR2622SWD3.5" HDD HUS728T8TALE6L48TB
iR2622SWD3.5" HDD WUH721414ALE6L414TB
iR2622SSeagate3.5" HDD ST16000NM001G16TB
iR2622SSeagate3.5" HDD ST16000VN00116TB
iR2622SSeagate3.5" HDD ST14000VN000814TB
iR2622SToshiba3.5" HDD MN06ACA10T10TBrequire special firmware
iR2622SToshiba 3.5" HDD HDWG11AAZSTA10TBrequire special firmware
iR2622SToshiba3.5" HDD HDWQ140AZSTA4TBrequire special firmware
iR2622SToshiba3.5" HDD HDWN180AZSTA8TBrequire special firmware
iR2622SSeagate3.5" HDD ST14000NM001G14TB
iR2622SSeagate3.5" HDD ST12000NM001G12TB
iR2622SSeagate3.5" HDD ST10000NM001G10TB
iR2622SToshiba3.5" HDD MG06ACA10TE10TB
iR2622SSeagate3.5" HDD ST16000NE00016TB
iR2622SEmBestor2.5" SSD EC3S2T-512GCJDYM44512GB
iR2622SSeagate3.5" HDDIronwolfST10000VN00010TB
iR2622SSeagate3.5" HDDIronWolf ProST10000NE00010TB
iR2622SSeagate3.5" HDDSkyHawk AI ST18000VE00218TB
iR2622SSeagate3.5" HDDIronWolfST12000VN000812TB
iR2622SSeagate3.5" HDDExos 7E10ST10000NM017B10TB
iR2622SSeagate3.5" HDDIronWolf ProST20000NE00020TB
iR2622SSeagate3.5" HDDExos X20ST20000NM007D20TB
iR2622SWD3.5" HDDUltrastar DC HC560WUH722020ALE6L420TB
iR2622SSeagate3.5" HDDSkyHawk AIST20000VE00220TB
iR2622SToshiba 3.5" HDD MG09ACA18TE18TBspecified firmware
iR2622SSeagate3.5" HDDExos X22ST22000NM001E22TB ( uses cookies to improve site functionality and your overall experience by storing necessary information for service delivery. By continuing, you consent to our use of cookies as detailed in our Privacy Policy, which provides more information about this usage. (Accept cookies to continue browsing the website)
