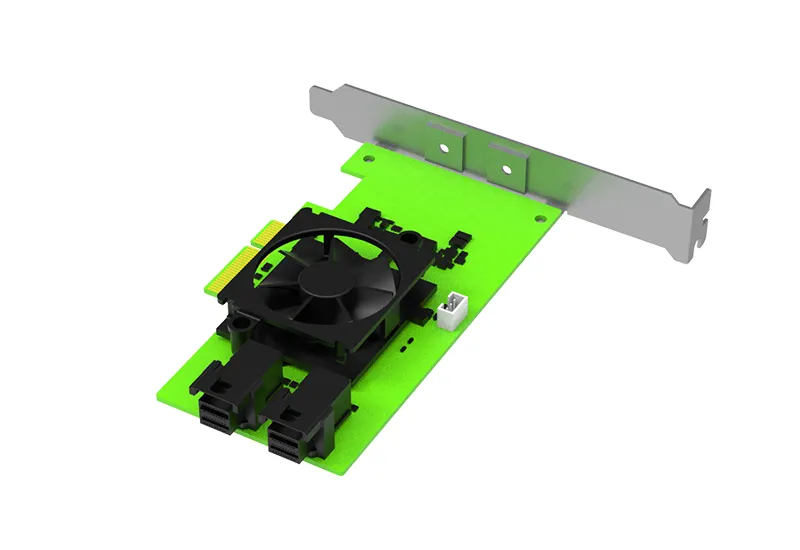

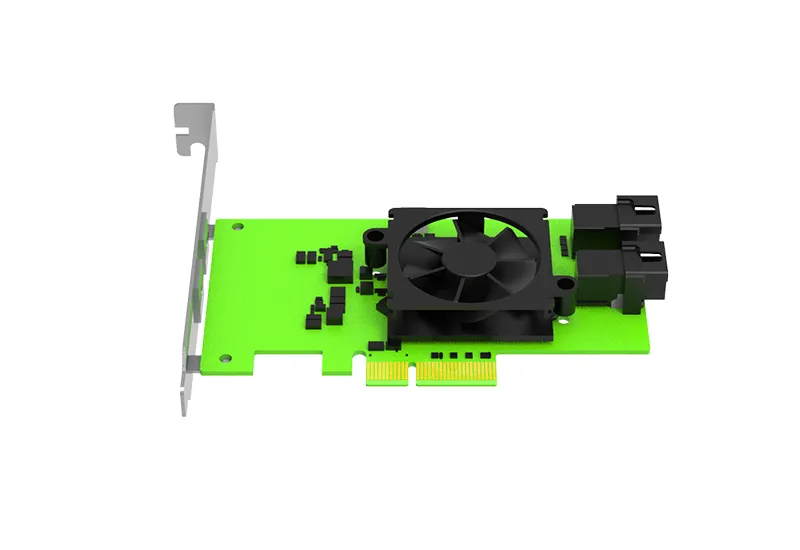

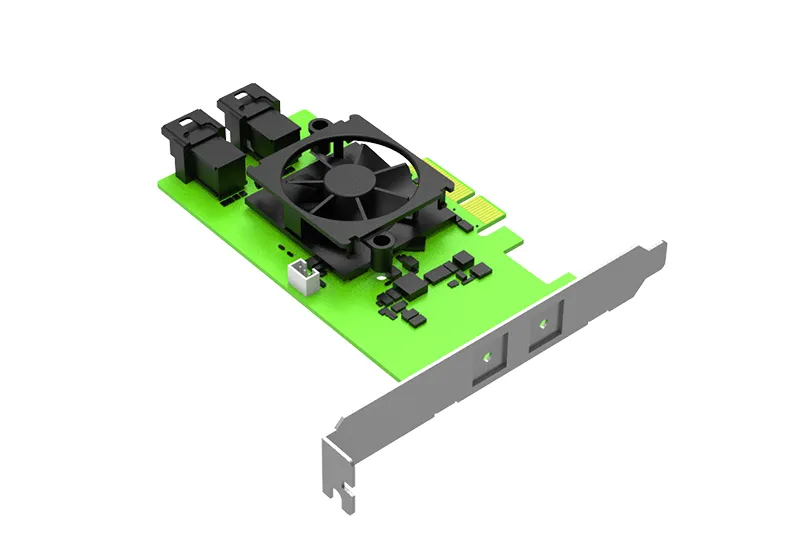

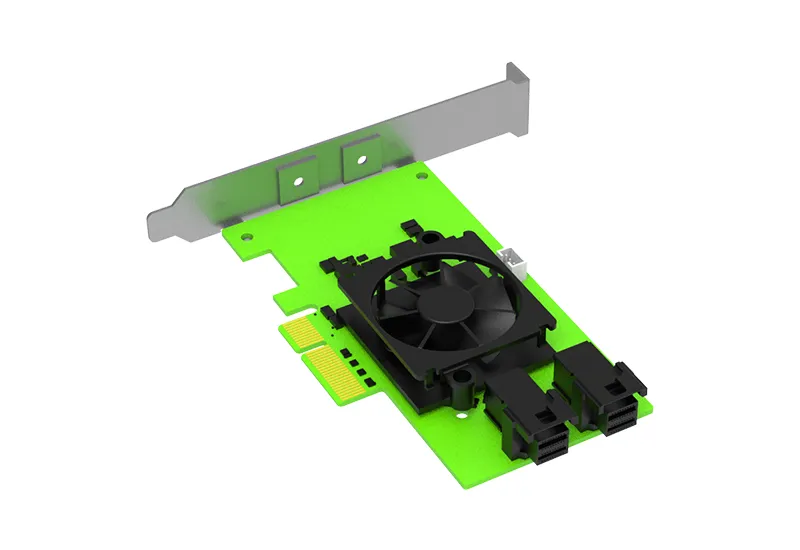

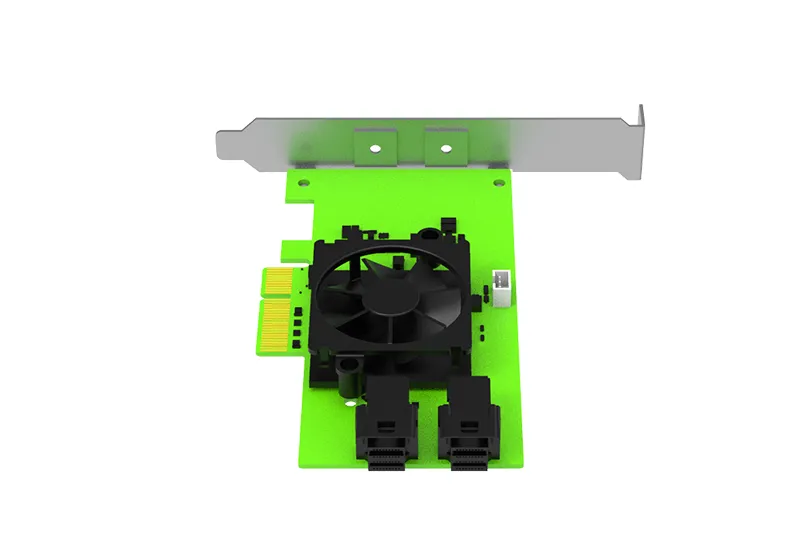

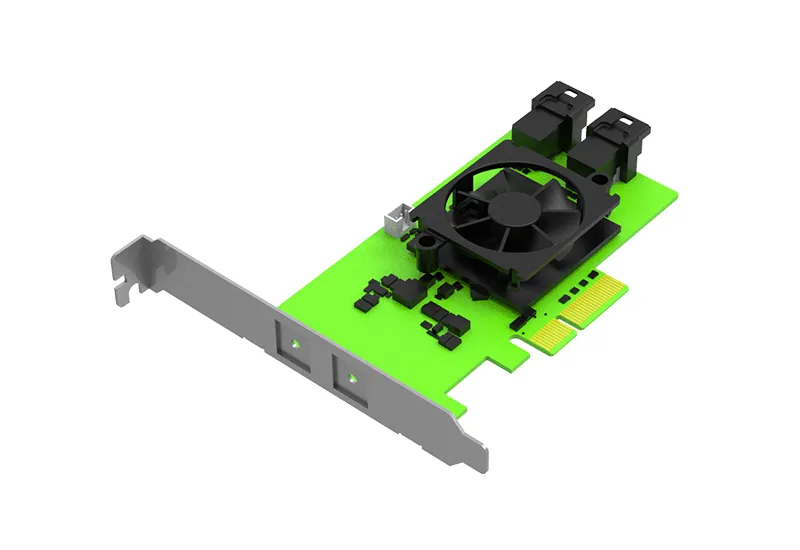

PC05-U6P3-I:The Next-Gen Dual-Channel PCIe Gen-3and/Gen-4 Interface Accelerator









The PC05-U6P3-I Host Bus Adapter stands at the pinnacle of innovation, delivering unparalleled data transfer speeds up to 40Gbps with its cutting-edge PCIe Gen-3 switch. This robust HBA is meticulously crafted to enhance your systems with dual-channel functionality through its high-density mini SAS (SFF-8643) connectors, ensuring a seamless and secure connection for your enterprise storage needs.

Key Features



1.Enhanced PCIe Gen-3 Switch Capacity: The PC05-U6P3-I is equipped with a PCIe Gen-3 switch, providing a total of 40Gbps bandwidth, which is evenly distributed across two mini SAS connectors at 20Gbps each. This distribution ensures consistent operation even in the most demanding data scenarios.



2.Dual-Channel Functionality: The PC05-U6P3-I redefines PCIe bus performance with its dual-channel feature. Both mini SAS connectors operate in tandem to utilize the collective 40Gbps bandwidth, facilitating simultaneous data transmission and improving overall data throughput.

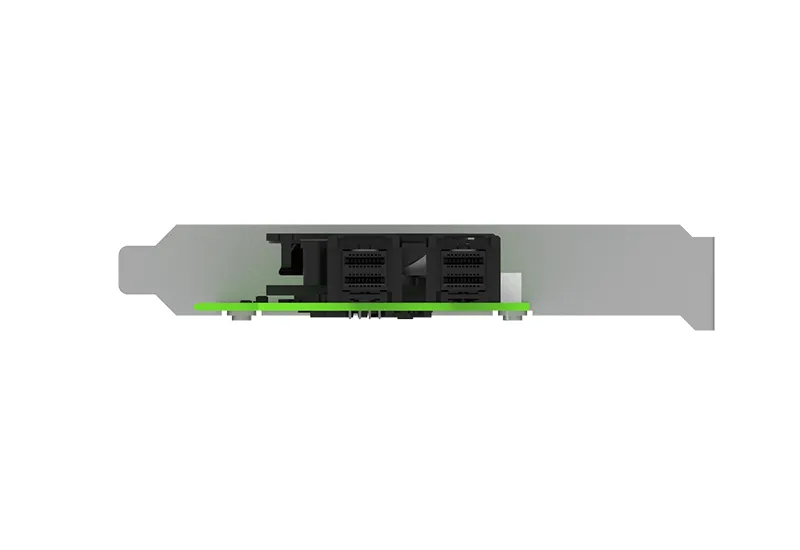

3.Reliable Mini SAS (SFF-8643) Connectors: Stability meets speed with high-density mini SAS connectors, providing a secure and firm connection that stands firm, even in the bustling environment of a busy data center.



4.Broad Compatibility: Designed with versatility in mind, the PC05-U6P3-I is compatible with a wide range of operating systems. This makes it an ideal choice for a diverse array of computing environments, ensuring seamless integration with your existing setup.



5.Advanced Interface Support: The PC05-U6P3-I is equipped with dual mini SAS(SFF-8643) connection interface, ensuring a robust and reliable connection. This feature-rich adapter bridges NVMe and PCI Express 3.0 and 4.0 interfaces, offering unparalleled data transfer speeds and efficiency.



6.High-Speed Storage Solution: For those looking to build or upgrade their storage solutions, the PC05-U6P3-I offers the perfect foundation. Its support Dual interfaces ensures that your system can handle two large volumes of data with ease, making it ideal for intensive applications such as video editing, data analysis, and gaming.



7.Driver-Free Installation: One of the standout features of the PC05-U6P3-I is its driver-free installation. This user-friendly design means you can set up your adapter quickly and without any hassle. It's a plug-and-play solution that gets you up and running in no time, eliminating the need for complex software installations.



8.Ideal for Tech Enthusiasts: Whether you're a seasoned tech professional or a hobbyist looking to expand your system's capabilities, the PC05-U6P3-I is an excellent choice. Its combination of high-speed data transfer, broad compatibility, and ease of installation makes it a must-have for anyone passionate about technology.

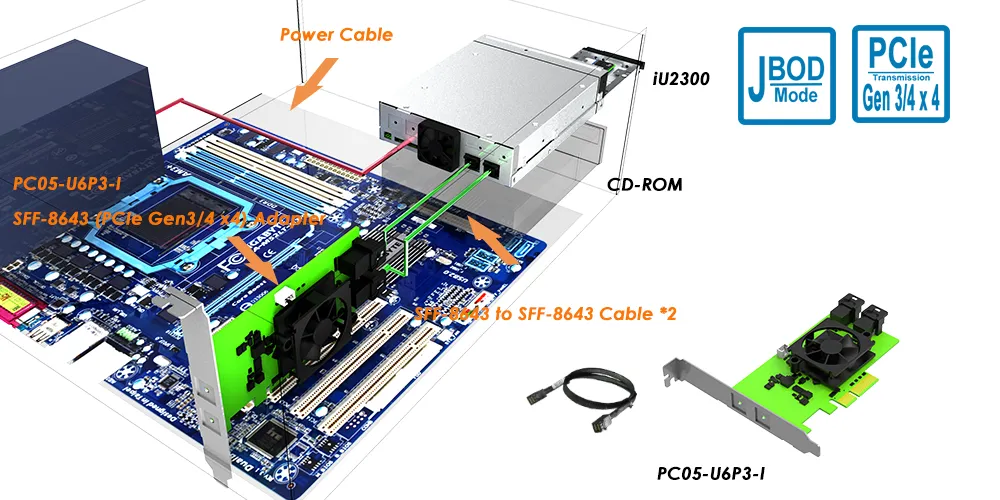

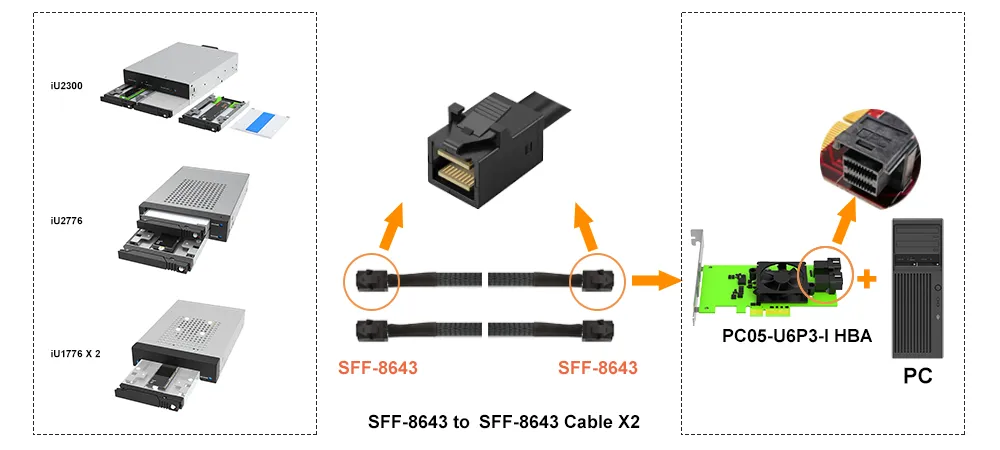

Furthermore, the RAIDON HiU2300 package, featuring the state-of-the-art PC05-U6P3-I HBA Adapter alongside the iU2300-U6P3 NVMe enclosure, is a comprehensive storage solution tailored for both enthusiasts and professionals who demand fast performance in a compact form factor. By harnessing the capabilities of M.2 NVMe SSDs, this solution provides top-tier speed and efficiency. Central to this setup is the PC05-U6P3-I HBA adapter, a critical link that connects the M.2 NVMe SSD to a PCIe slot within the sleek iU2300-U6P3 NVMe enclosure. Designed to fit the standard dimensions of a CD-ROM bay, the enclosure ensures effortless integration with existing systems, making it a perfect blend of function and form for optimized storage expansion.



Benefits



The benefits of the features listed for the PC05-U6P3-I HBA Adapter are multifaceted and address various needs of high-performance computing environments:


1. High-Speed PCIe Gen-3 Switch: The 40Gbps transfer rate allows for the rapid movement of large volumes of data, which is crucial for applications such as real-time data analysis, live-streaming content, and large-scale scientific computations.


2. Dual-Channel Functionality: The adapter's dual-channel functionality, supporting 20Gbps on each channel, enables parallel data processing, thus amplifying throughput and enhancing multitasking performance for servers and premium workstations.


3. Reliable Mini SAS (SFF-8643) Connectors: The high-density connectors provide a stable and secure connection, essential in minimizing downtime and maintaining data integrity in critical systems.


4. Broad Compatibility: The adapter's ability to work with a variety of operating systems means it can be integrated into almost any computing environment without compatibility issues, from legacy systems to the latest setups.


5. Advanced Interface Support: By bridging NVMe and PCIe 3.0 and 4.0 interfaces, the adapter ensures compatibility with the newest storage technologies, allowing users to take full advantage of their speed and efficiency.


6. High-Speed Storage Solution: Ideal for data-heavy applications, the dual interfaces allow for high-volume data transfers, making it suitable for professional video editing, complex data computations, and high-resolution gaming.


7. Driver-Free Installation: The ease of installation means that users can enjoy the benefits of the adapter without technical hurdles, reducing setup time and making it accessible to users with varying levels of technical expertise.


8. Ideal for Tech Enthusiasts: Its high performance and ease of use make the PC05-U6P3-I a desirable component for anyone interested in building or upgrading their computer system for high-speed operations.


In combination with the RAIDON HiU2300 package, these features present a storage solution that is not only efficient and high-performing but also user-friendly and versatile. The package serves as a comprehensive solution for enhancing storage with the convenience of a plug-and-play setup, fit for both professional and enthusiast-level computing tasks.



High-Speed PCIe Gen3 Switch


The PCIe Gen-3 switch in the PC05-U6P3-I Host Bus Adapter enables dual PCIe channel support, distributing the robust 40Gbps bandwidth across two mini SAS connectors for efficient data handling and connectivity.



Dual-channel Functionality

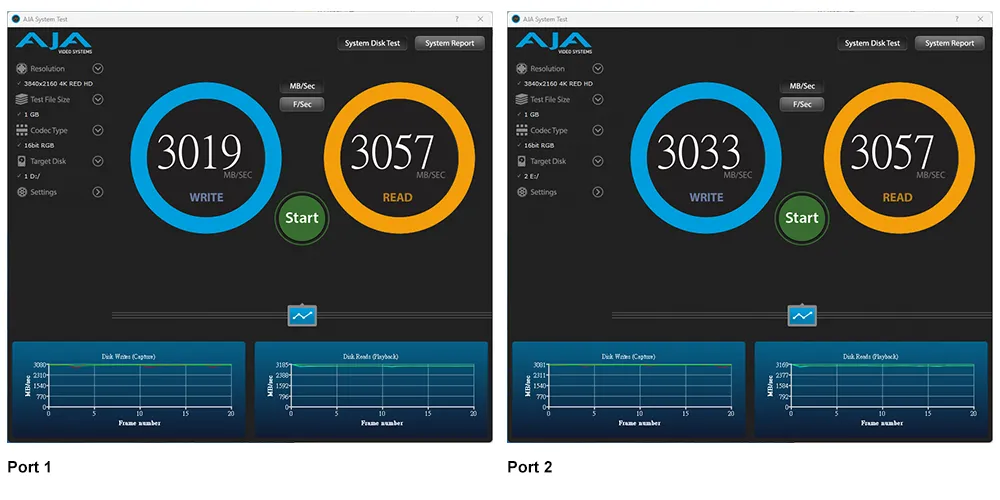

The dual-channel functionality of the adapter extends its capabilities by providing two separate 20Gbps channels. This design not only doubles the data handling capacity but also segregates data streams to minimize interference and maximize efficiency. With this feature, the adapter can support distinct data operations concurrently, which is critical for applications requiring high data segregation, like virtualization, where multiple virtual machines can operate without competing for bandwidth. It's an ideal solution for complex tasks that require dedicated bandwidth, ensuring that each channel can deliver and receive data at high speeds without compromise.





High durability and reliability



The PC05-U6P3-I is engineered with high-quality components to ensure a long lifespan and reliable performance. Its robust construction guarantees it can withstand the demands of daily usage.

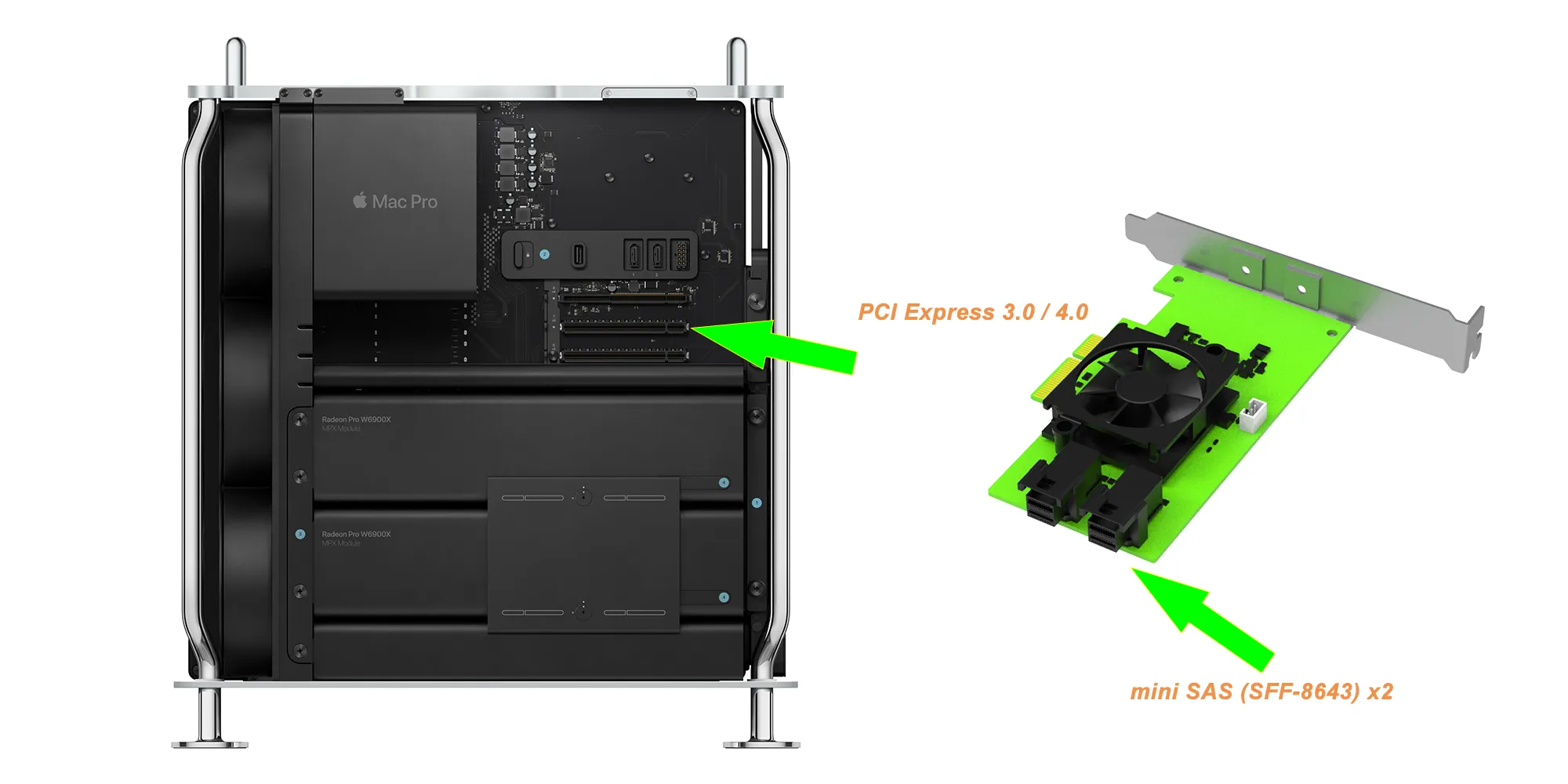

Interface: PCI Express 3.0 and PCI Express 4.0



The PC05-U6P3-I is compatible with both PCI Express 3.0 and PCI Express 4.0 interfaces, which are instrumental in setting the communication speed among the components. Both interfaces ensure quick data transfer, however, PCI Express 4.0 delivers a speed that's twice as fast as PCI Express 3.0.





Driver Free Installation



Setting up the PC05-U6P3-I is effortless and there's no need for additional drivers post-installation.





Multi-OS Support: Mac, Windows, and Linux



PC05-U6P3-I supports Mac, Windows, and Linux operating systems. This ensures a seamless experience, regardless of your operating system preference.





Compatibility with Next Gen Protocol



With its advanced features and support for high-speed interfaces like PCI Express 4.0, the PC05-U6P3-I is a future-proof device that's designed to meet your needs, both today and in the coming years.



Versatile Use



The PC05-U6P3-I can be used for a wide variety of tasks, from data-intensive applications to everyday computing tasks. Whether you're professional requiring high-performance storage or a casual user looking for a reliable device, the PC05-U6P3-I is an excellent choice.

Possible applications for PC05-U6P3-I:



The PC05-U6P3 Host Bus Adapter (HBA) is versatile and can be used across various applications, including those in the realm of Artificial Intelligence (AI). Here are possible AI-related applications for the PC05-U6P3-I:



1. Machine Learning Workstations: For data scientists and AI researchers, the high-speed data transfer capabilities can significantly reduce the time required for data preprocessing and model training.



2. AI Data Centers: In data centers focused on AI workloads, the HBA can facilitate faster data access and improve the efficiency of neural network training and inference tasks.



3. Autonomous Vehicle Development: The adapter can be used to quickly process and transfer the vast amounts of data collected by autonomous vehicle sensors, essential for real-time decision-making and machine learning.



4. Medical Imaging Analysis:AI applications in healthcare, such as analyzing medical scans, require high-speed data processing, which the PC05-U6P3 can support by accelerating the transfer of large imaging files.



5. Natural Language Processing (NLP): For applications involving large datasets of human language, the adapter can help in managing and processing data for chatbots, translation services, and sentiment analysis.



6. Video Surveillance Analysis: The HBA can support AI systems in analyzing video surveillance footage in real-time for security and monitoring services.



7. AI-Enhanced Content Creation: From rendering 3D graphics to compiling code, the adapter can be instrumental in creative and development tasks that utilize AI algorithms for content enhancement.



8. Financial Modeling and Analysis: In fintech, AI applications can benefit from the high transfer rates for real-time trading algorithms and complex financial simulations.



9. Edge Computing: For AI processing at the edge of the network, where latency is critical, the adapter can ensure that data is quickly relayed to and from centralized data processing locations.



The high bandwidth and efficient data transfer capabilities of the PC05-U6P3-I make it a strong candidate for supporting the intensive workloads associated with AI applications.



Specification



Model No PC05-U6P3-I
Interfaces PCIe 3.0/4.0 x4
mini SAS (SFF-8643) x2
Certification CE/FCC
Storage Mode JBOD - Independent Mode
Dimension 68.1 mm (H) x 119 mm (L)
Operating System
Support
Windows 7 or above, macOS 10.10 or above, Linux
Driver-Free Installation
Package Accessories PC05-U6P3-I
