InTANK Series

iT2300-S3 (1 CD-ROM Bay 2.5"-3.5" JBOD Internal Module)


For 2 x 2.5" SATA HDD/SSD + 1 x 3.5"/2.5" SATA HDD/SSD, Tray key lock


iT2300 provides hard drive LED indicators,Mute adjustment settings, FAIL indicator display

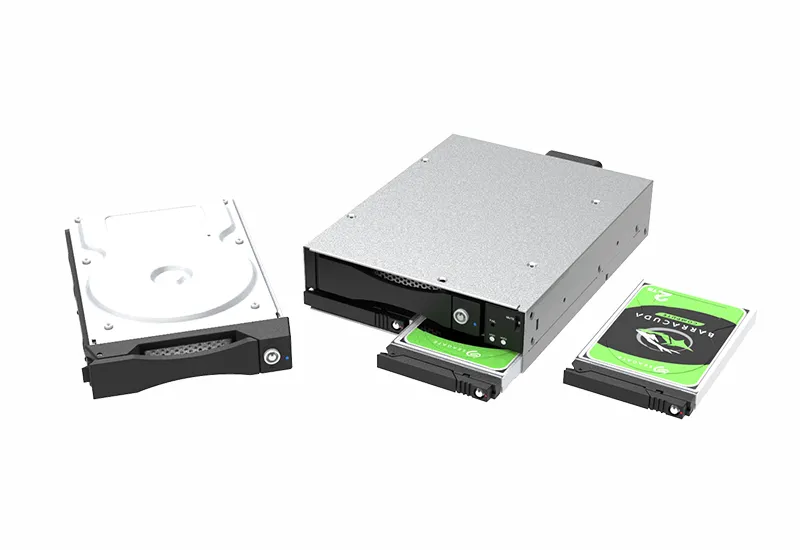

Two in One design provides 3 independent HDD/SSD

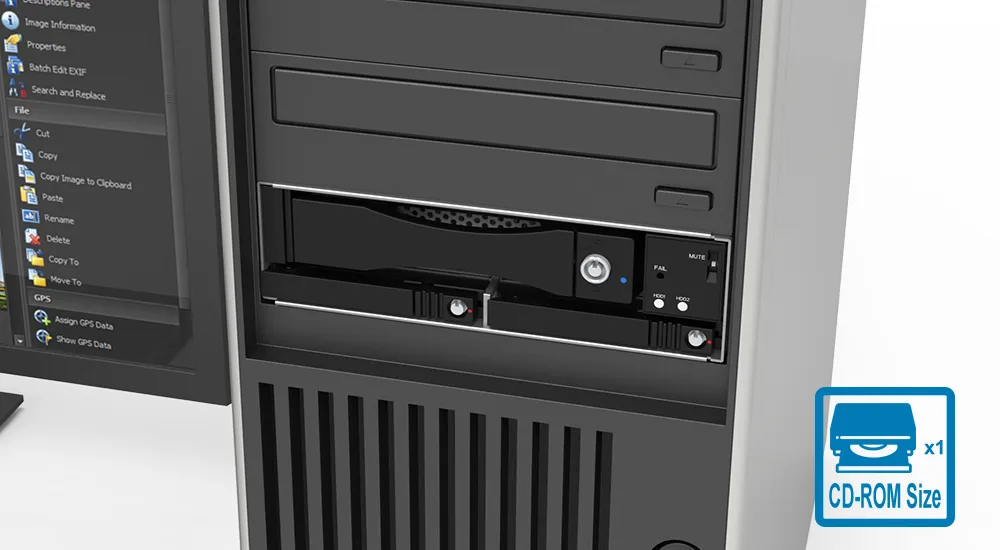

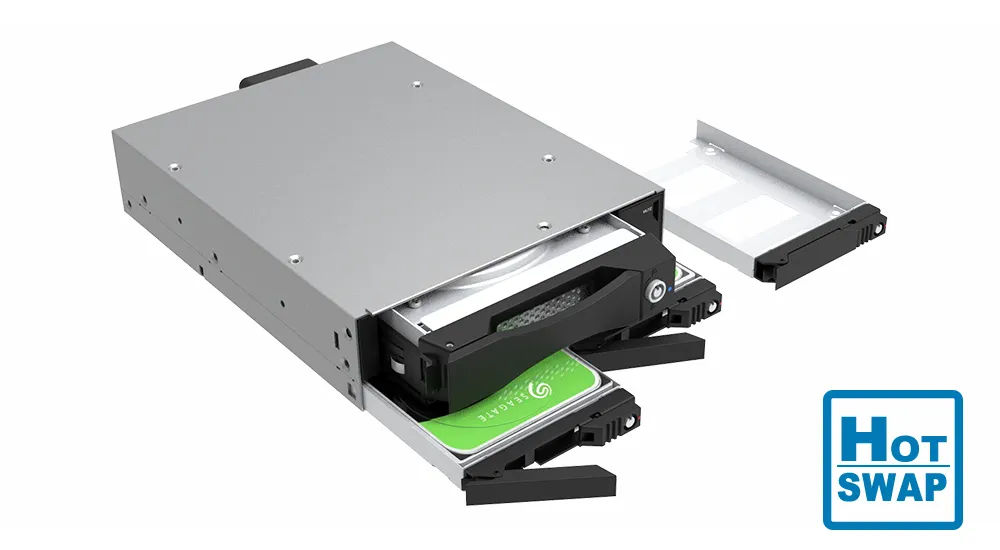

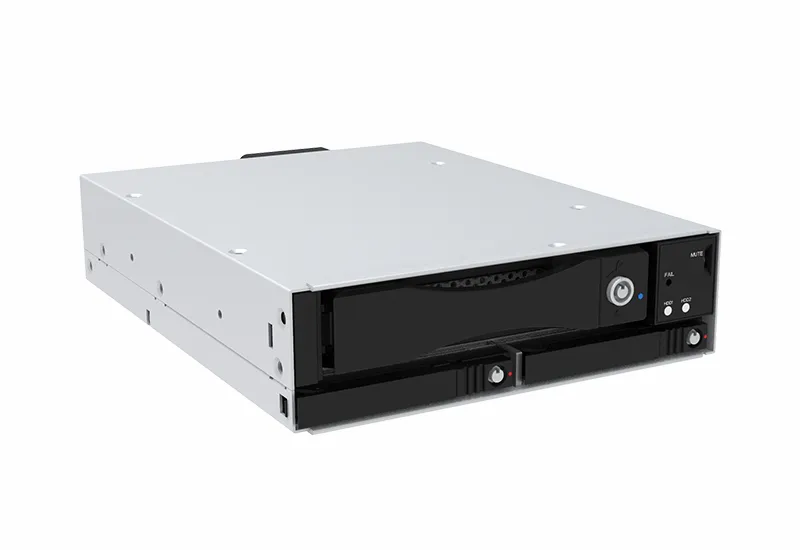

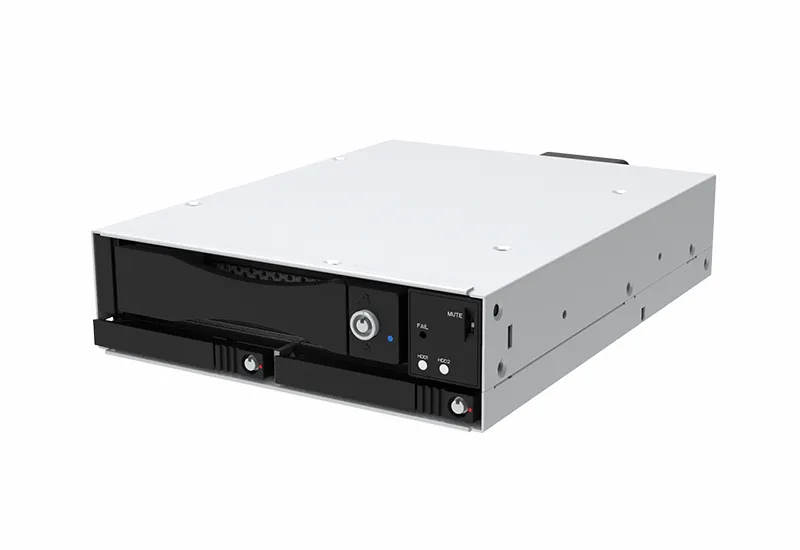

The RAIDON iT2300 is an internal storage box which is easy to install and hot-swappable allowing drives to be replaced while the power is on. The iT2300 supports a 5.25" CD-ROM size. it is suitable for applications such as file servers, industrial computers, and workstations.

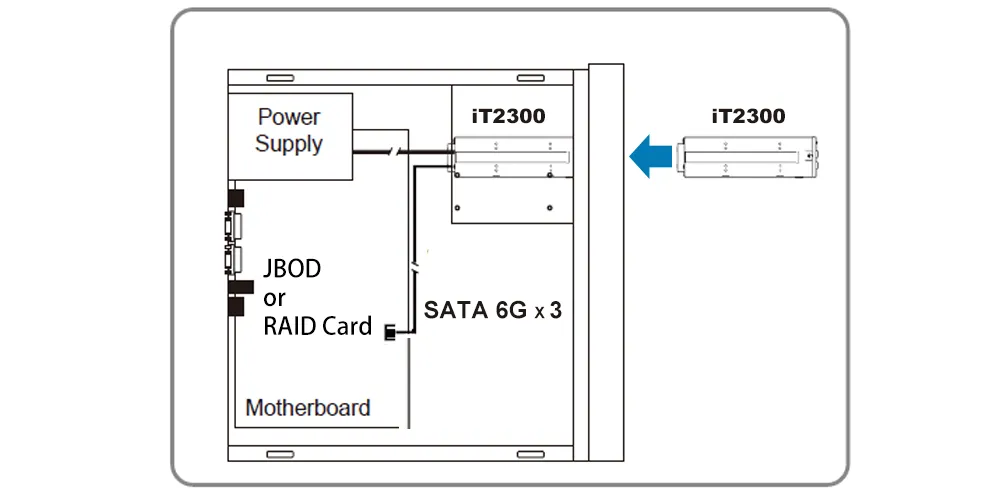

iT2300 can install 3 independent HDD/SSD, provide 2 2.5" HDD/SSD Tray + 1 2.5"-3.5" HDD/SSD Tray, iT2300 has 3 independent SATA host interface, so that the way of use is more diverse, the user can also use the built-in RAID card to upgrade the iT2300 to a storage device with data security.

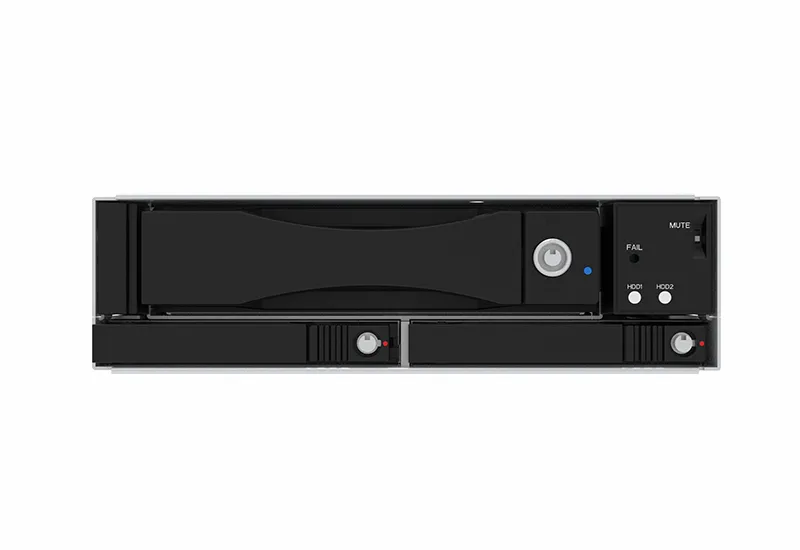

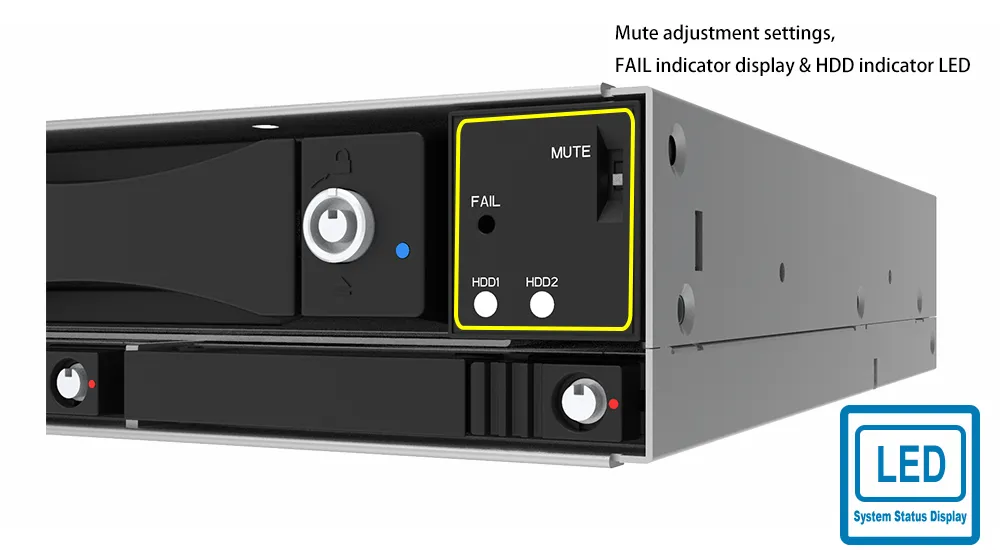

iT2300 provides hard drive LED indicators,Mute adjustment settings, FAIL indicator display


The iT2300 has a better and more thoughtful design, when the temperature of the device is too high or the fan fails, the fail LED signal will be displayed or the buzzer will beep. The front panel of the device provides a button that can turn off the mute, so that the buzzer can be turned off when the device encounters a failure, so as to avoid constant buzzing and noise.

Easy-to-use disk Tray module


RAIDON's easy-to-use disk tray module comes with a key lock and secure the disk with screws. User can buy several disk tray modules and secured the disks first, once there is one disk in iT2300 is failure, just replace the disk directly. It can greatly reduce the wait time for system maintenance.


iT2300 can install 3 independent HDD/SSD, providing 2 2.5" HDD/SSD Tray + 1 2.5"-3.5" HDD/SSD Tray, Tray provides a key lock, which will not be easily extracted, increasing data security.

Good heat dissipation can extend the life of the hard disk

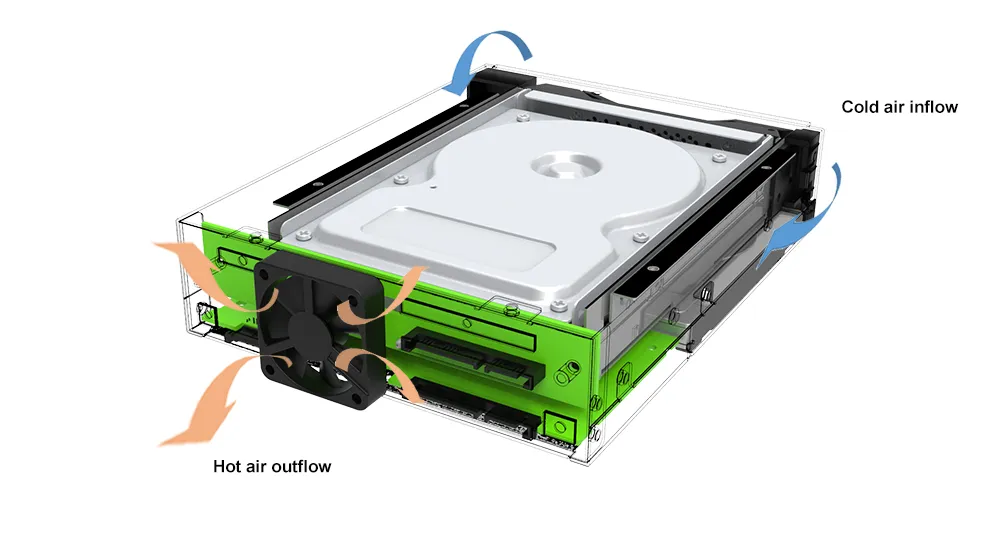

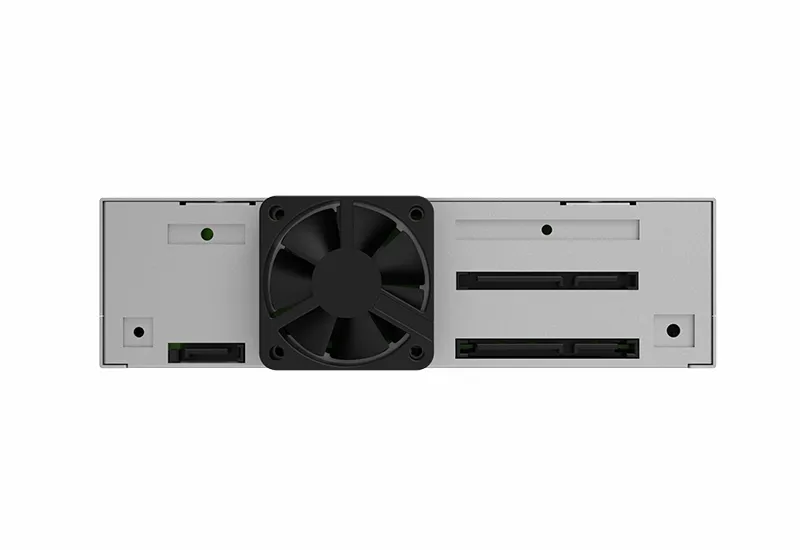

The iT2300 is equipped with a 4cm silent fan, by constantly creating air flow, heat generated by the high-speed rotation of the hard disk can be easily taken away. This maintains the normal operating temperature of the hard disk at all times and to extend the life of hard drives that will properly protect your data.

Multiple application choices

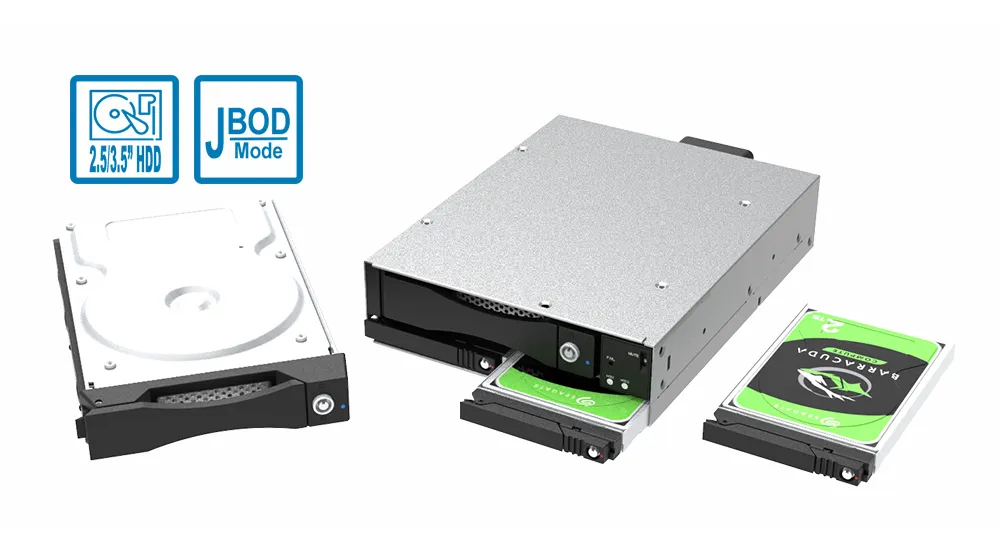

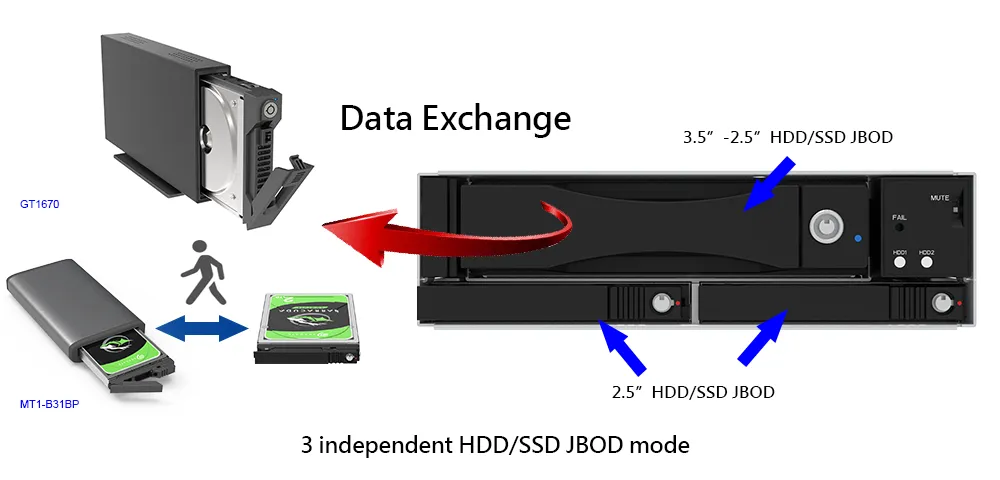

1. Users can use JBOD storage mode to install 3 independent HDD/SSD to exchange data with each other, or take out the hard drive and tray of iT2300 to other external boxes, so that you can easily carry them to the office when you go out.

2. The iT2300 can match with a RAID card, set to 2.5" RAID 0/1, and match with the iT2300's 3.5" JBOD mode, let your important data back up safely at any time, and ensure that the data can store for a long time.

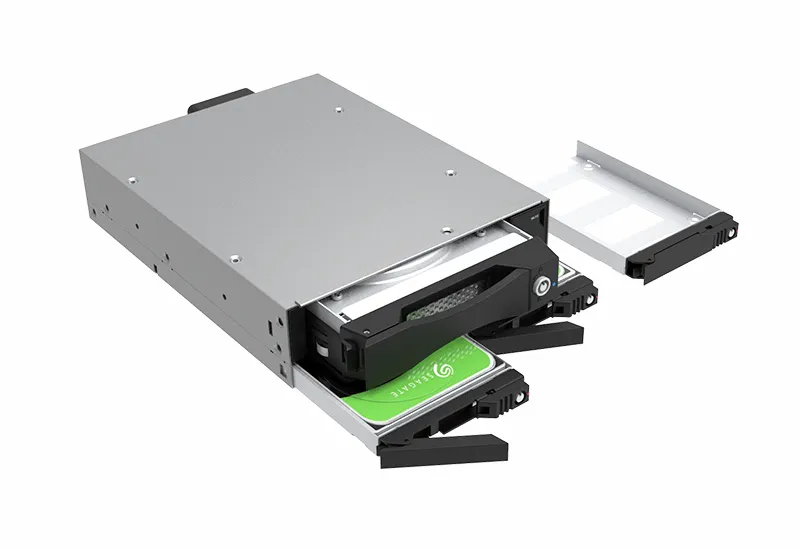

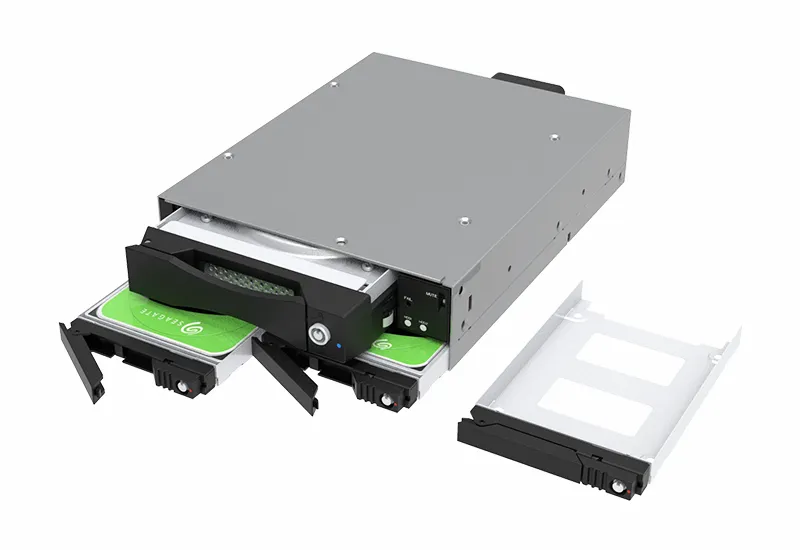

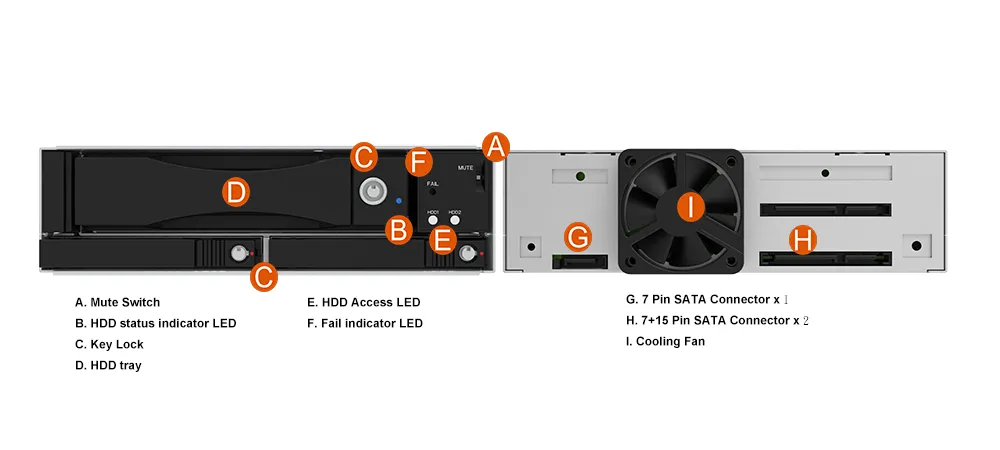

Product View


Model No iT2300-S3
Interfaces 3 x SATA III (6Gbps) Ports
Compatible Drives 1. 1 x 3.5" Tray >> For 1 x 3.5"/2.5" SATA HDD/SSD
2. 2 x 2.5" Tray >> For 2 x 2.5" SATA HDD/SSD
Storage Level JBOD Independent volume
System Monitoring LED hard drive indicators / Fan Failure / Overheat
Operating System Windows, Linux
Cooling System 4 cm Low noise fan
Electrical and
* Line voltage: 12V + 5V DC
* Operating temperature: 32° to 104° F (0° to 40° C)
* Storage temperature: -4° to 116° F (-20° to 47° C)
* Relative humidity: 5% to 95% non-condensing
Dimension & Weight 146(W)x 42(H) x 198(L) mm
Product Code iT2300

Carton 10 pcs per carton
Package Accessories *iT2300-S3
*SATA Cable x 3
*Accessory Kit-for Tray
*Accessory Kit-for Case
*Quick installation guide
