iR2022: Efficient Solution for High-Speed, Secure Data Storage Features




1. Flexible Storage Options with SSD and hard drive Compatibility.


2. Comprehensive Support for SATA 6G with RAID 0 and RAID 1 Configurations.


3. STATUSGuide GUI and drive S.M.A.R.T monitoring (for Windows only).


4. RAID Configuration Displayed via LCD Status Screen.


5. Drives monitoring with LED light indicator.


6. Tray with KeyLcok protection.


7. Hot-swappable and plug-and-play for easy replacement of drives.


8. Compact Size: fits perfectly into a 5.25-inch CD-ROM bay.


9. Versatility: for server, IPC, or workstation installation.


10. Optimal heat management with MCU controlled silent fan.


11. Advanced Overheat alarm buzzer.




1. RAID 1 supports Data Redundancy and Protection.


2. RAID 0 supports Increased Performance.


3. Versatile Storage Options supports SATA 3 6G SSD and Hard disk.


4. STATUSGuide GUI Eases of Management.


5. KeyLock feature provides Enhanced Security.


6. Excellent Heat Management with MCU-controlled silent fan and overheat alarm buzzer.


7. Real-Time Drive S,M.A.R.T. Monitoring.


8. Efficient Space Utilization with compact design fit into one CD-ROM Bay.



Your Compact and Efficient Solution for High-Speed, Secure Data Storage and Management

The iR2022 Internal RAID Device - a comprehensive, efficient, and versatile solution for your data storage and management needs. Designed with advanced features, the iR2022 is a reliable component for any server, IPC, or workstation setup.



Flexible Storage Options with SSD or hard drive Compatibility


The iR2022 has been thoroughly designed to support either two 2.5-inch SATA 6.0 Gb/s SSDs or hard drives. This versatile accommodation enables a diverse range of high-speed storage possibilities, making it a perfect match for the demands of today's high-performance computing scenarios.

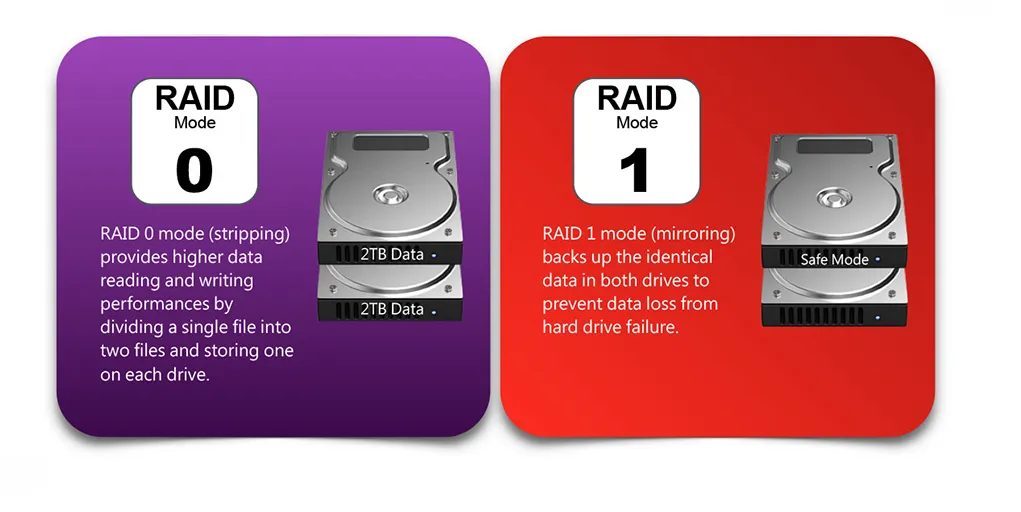

Comprehensive Support for SATA 6G with RAID 0 and RAID 1 Configurations


The iR2022 offers comprehensive support for SATA 6G, integrating seamlessly with the latest generation of high-speed data interfaces. This robust support ensures you can leverage the speed and efficiency of SATA 6G, significantly enhancing your system's overall data transfer rates and performance. Furthermore, the iR2022 supports RAID 0 and RAID 1 configurations. With RAID 0, also known as striping, you can enjoy increased data throughput by spreading data across multiple drives. Conversely, RAID 1, known as mirroring, duplicates your data across two drives, providing an immediate backup and ensuring data integrity and reliability. The comprehensive support for both these RAID configurations, combined with SATA 6G compatibility, make the iR2022 a highly adaptable and powerful storage solution that caters to a broad spectrum of user needs.

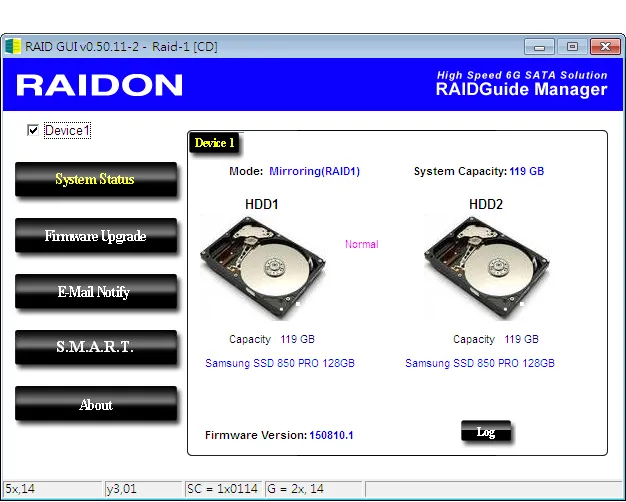

STATUSGuide GUI and drive S.M.A.R.T monitoring


The iR2022 Internal RAID Device offers windows base RAIDON STATUSGuide Graphic User Interface (GUI). This user-friendly platform simplifies RAID monitoring, and management, making it an accessible and efficient tool even for those not experienced with RAID configurations.

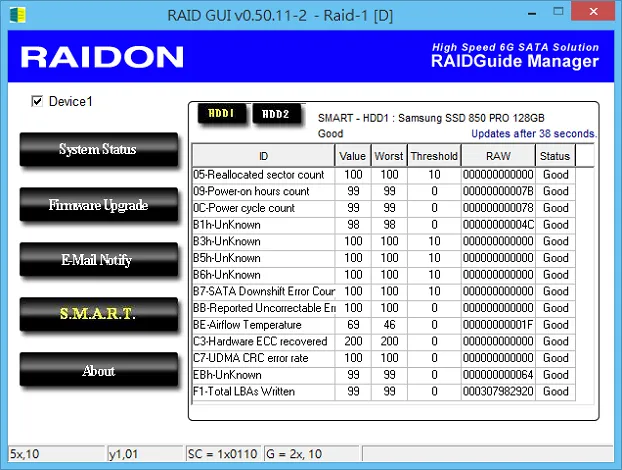

Additionally, the iR2022 supports Self-Monitoring, Analysis, and Reporting Technology (S.M.A.R.T.) for drives. This technology enables the real-time tracking of key indicators of drive reliability. With S.M.A.R.T., potential drive failures can be anticipated and prevented, providing an added layer of data security and peace of mind.

>> Learn more about it

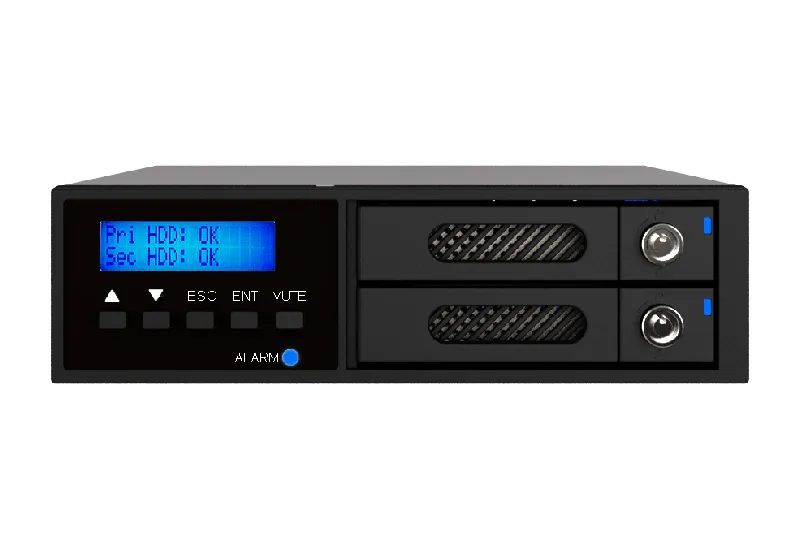

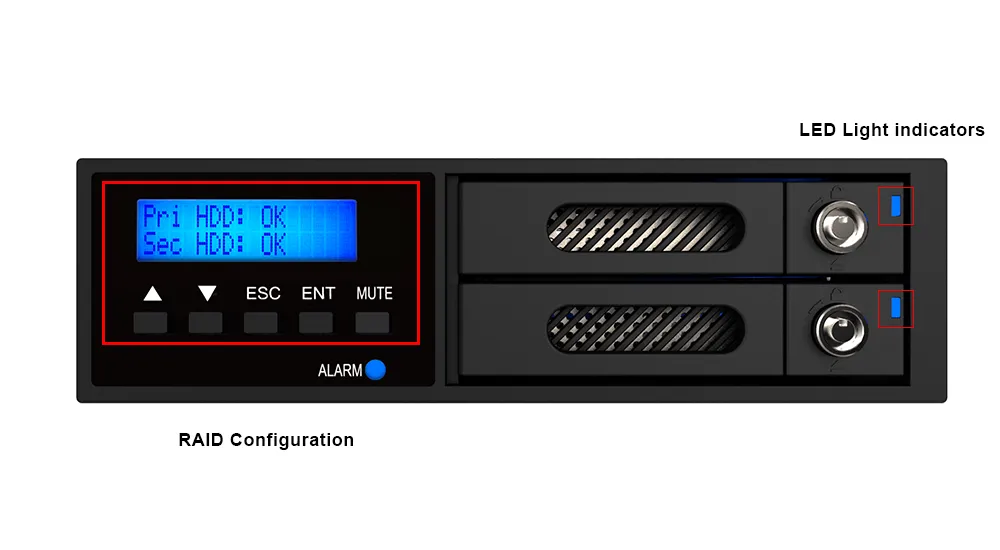

RAID Configuration Displayed via LCD Status Screen


The iR2022 comes equipped with a state-of-the-art LCD status screen that dynamically displays your RAID configuration settings. This user-friendly feature allows you to have an at-a-glance view of your storage arrangement, providing real-time updates on your RAID settings and data management status. The clear and concise display ensures that you can quickly understand and manage your system's performance and storage parameters, effectively reducing the complexity of data management. The LCD screen also makes it easy to adjust your RAID configurations, allowing for a seamless transition between different storage preferences. With the iR2022's LCD status screen, staying informed and in control of your storage system has never been more straightforward.


LED Light indicators


The iR2022 features a separate LED display for each SSD or hard disk, presenting data access status or the condition of the SSD or hard disk concisely. This allows users to stay informed about the overall status of the iR2022 at any time.

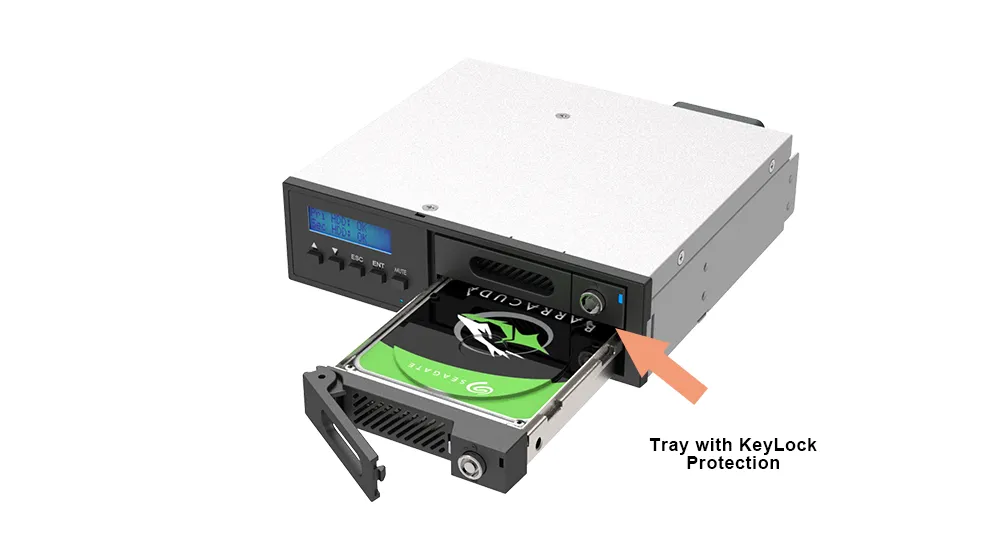

Tray with KeyLock Protection


To enhance the physical security of your drives, the iR2022 is designed with a tray system that includes a KeyLock feature. This prevents unauthorized access and removal of your valuable drives.

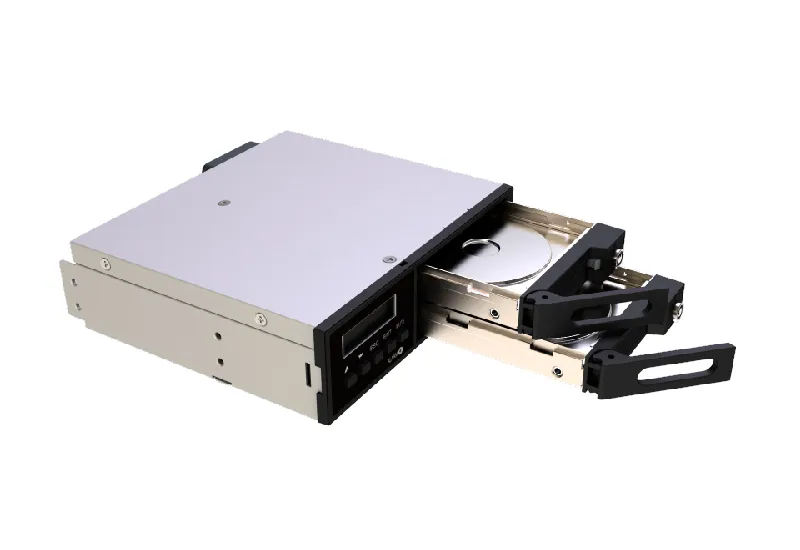

Hot-swappable and plug-and-play for easy replacement of drives


One of the standout features of the iR2022 Compact RAID Enclosure is its hot-swappable and plug-and-play capability. This user-friendly design allows for effortless replacement and upgrading of drives, minimizing downtime. If a drive fails or you simply want to upgrade your storage capacity, the hot-swap feature lets you replace the drive without having to power down the system. Additionally, the plug-and-play functionality ensures the new drive is immediately recognized and operational, making the whole process seamless and convenient. This aspect truly embodies the iR2022's commitment to blending advanced technology with superior user experience.


More Tray information  >>>>

More Tray product information  >>>>

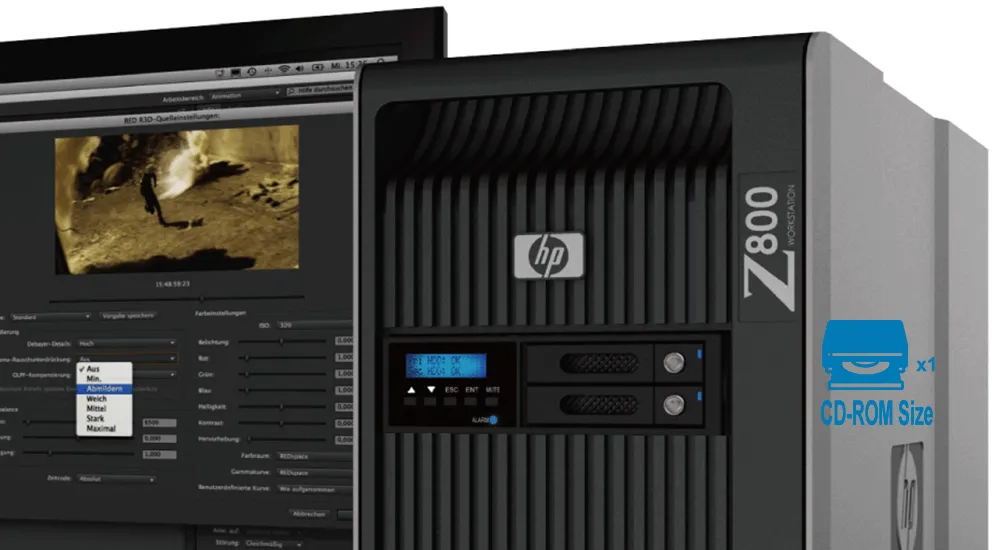

Compact Size


Despite its robust features, the iR2022 is compact enough to fit perfectly into a 5.25-inch CD-ROM bay. This makes it a space-efficient addition to your hardware setup.

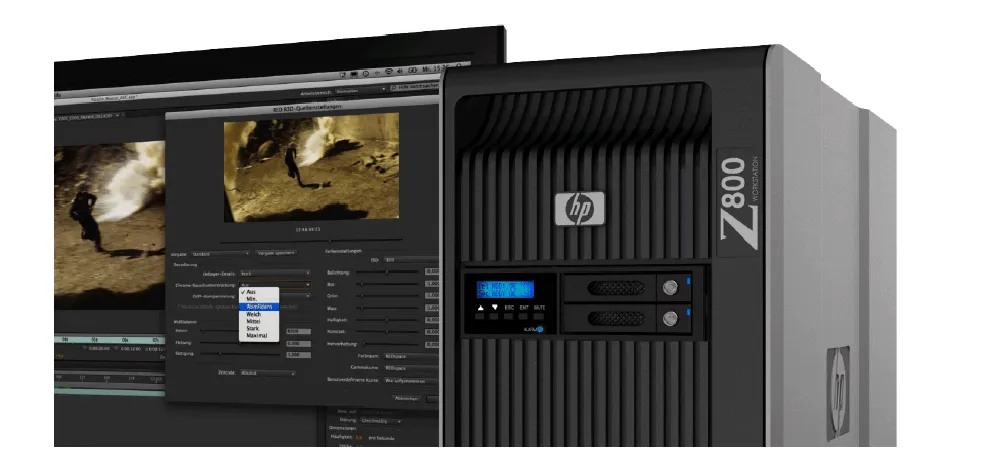

With its advanced features and compact design, the iR2022 is ideal for installation in a variety of systems including servers, industrial PCs (IPCs), and workstations.


>>>> More Internal RAID Module

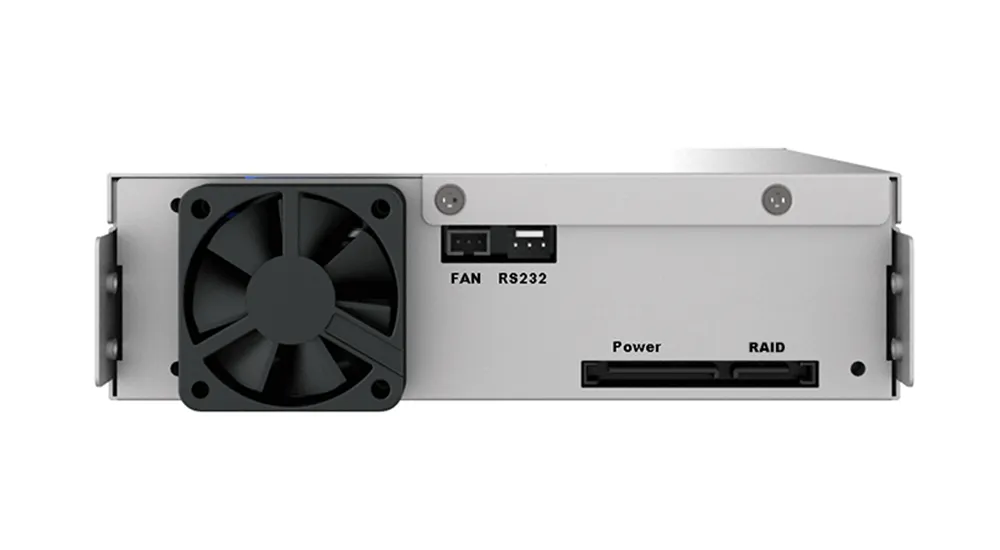

Optimal heat management with MCU controlled silent fan


The iR2022 incorporates a Microcontroller Unit (MCU) controlled heat dissipation system. The MCU intelligently operates a 4-cm silent fan to maintain optimal temperature for your drives, extending their lifespan and ensuring consistent performance.


Experience reliable, secure, and efficient data management with the iR2022 Internal RAID Device - a tool engineered for the modern digital world.

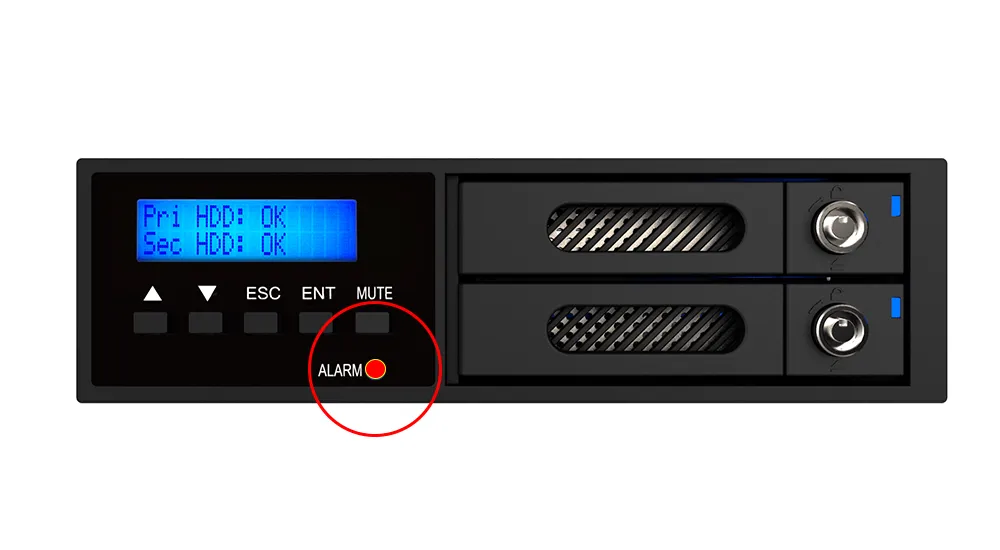

Overheat alarm buzzer


The iR2022 Compact RAID Enclosure is built with an intelligent overheat alarm buzzer to ensure the safety and longevity of your drives. This advanced feature continuously monitors the temperature of your storage devices. In the event of a significant rise in temperature that surpasses the safe operating limit, the alarm buzzer will sound, alerting users to potential overheating issues. This immediate auditory alert allows for swift corrective action, which could involve ramping up the cooling system or shutting down to prevent any potential damage. The inclusion of this overheat alarm buzzer is a testament to iR2022's commitment to proactive protection of your valuable data and hardware.

The iR2022 Internal RAID Device can be utilized across various applications:


1. Data Centers: The iR2022's high-speed data access and redundant data protection make it ideal for deployment in large-scale data centers where reliable and efficient data storage and management is critical.


2. High-Performance Computing: For systems running complex simulations or data-intensive tasks, the iR2022 can deliver the performance boost and data security required.


3. Network Attached Storage (NAS) Systems: By integrating iR2022 into NAS systems, businesses and individuals can benefit from improved data access speeds and increased redundancy.


4. Industrial PCs (IPCs): In industries like manufacturing, healthcare, or Semiconductor automation, IPCs can utilize the iR2022 for efficient, secure data handling and storage.


5. Surveillance Systems: Security systems that generate large volumes of video data can leverage the iR2022's storage capabilities, ensuring quick data retrieval and secure backups with its RAID 1 function.


6. Media Editing and Production: With high-speed data access and secure storage, the iR2022 can be a vital tool for professionals working with large media files for editing, rendering, or production.


7. Server Environments: In various server implementations, the iR2022 can provide essential data management and backup, along with performance enhancement.


8. Research and Development: For institutions generating and working with large volumes of data, the iR2022 can ensure reliable, high-speed storage and safeguard against data loss.

The iR2022 Internal RAID Device, with its advanced features and compact size, makes it an excellent choice for Industrial PC (IPC) and automation applications:


Please contact us for details.

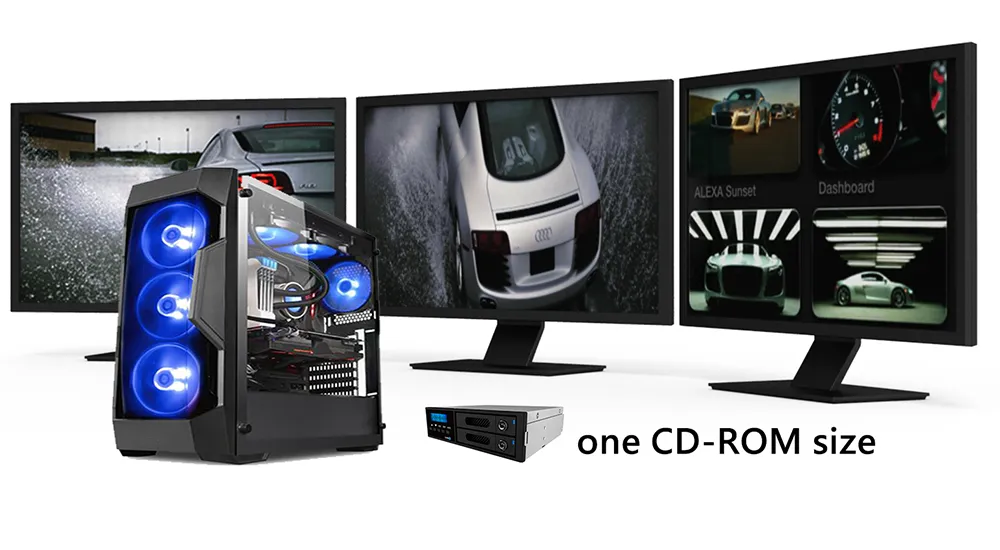

Applicable to the installable gaming chassis

Standard CD-Rom size

The iR2022 can be an excellent fit for Industrial PC (IPC) automation applications:


1. Process Automation: The iR2022 can serve as a reliable data storage and management solution in various process automation scenarios. Whether it's for storing process data, operational logs, or programming and controlling automated machinery, the iR2022's high-speed data access and redundant data protection are invaluable.


2. Manufacturing and Assembly Lines: For automated manufacturing and assembly lines, the iR2022 can be used to store and manage machine data, performance metrics, quality control data, and more. Its RAID 1 function ensures data safety, and RAID 0 configuration offers improved data access speed, vital for real-time control and monitoring.


3. Robotics Control Systems: In robotics applications, where large volumes of data are generated and need to be stored securely and accessed swiftly, the iR2022 is an ideal choice. It can be used to store control algorithms, machine learning models, sensor data, and operational logs.


4. Data Acquisition Systems: In industrial applications where real-time data acquisition and processing are crucial, such as in predictive maintenance or quality control, the iR2022 provides high-speed data access and secure data storage.


5. SCADA Systems: The iR2022 can be an essential component of Supervisory Control and Data Acquisition (SCADA) systems, used for storing operational data, logs, and control parameters. The device's RAID functions ensure that the stored data is always secure and readily available.


6. Industrial IoT (IIoT) Devices: For IIoT applications, the iR2022 can be used to store and manage data collected from a multitude of IoT sensors and devices. Its high-speed data access and redundancy features make it an optimal choice for these data-intensive environments.


By deploying the iR2022 in IPC and automation environments, industries can enjoy reliable, secure, and high-speed data management, ensuring efficient operations and aiding in informed decision-making.

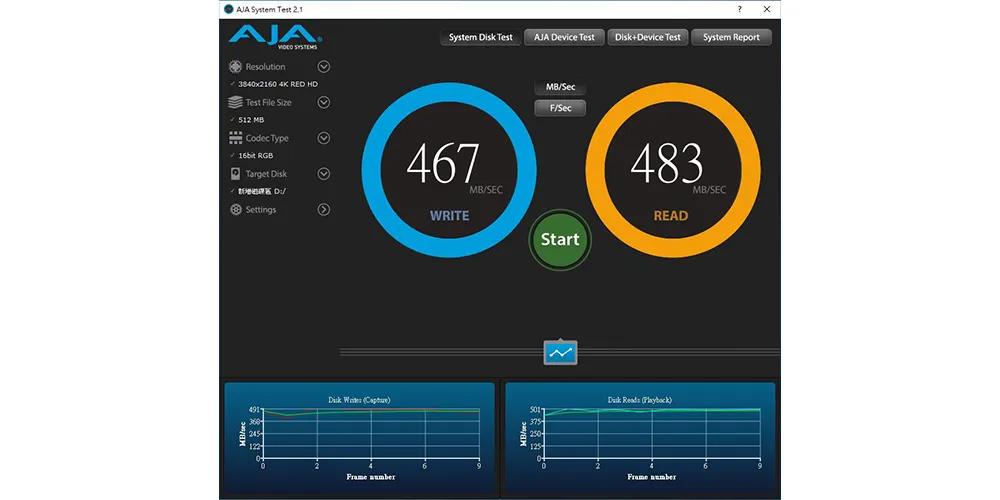

Performance test result for reference. The test result will vary depend on the test environment.

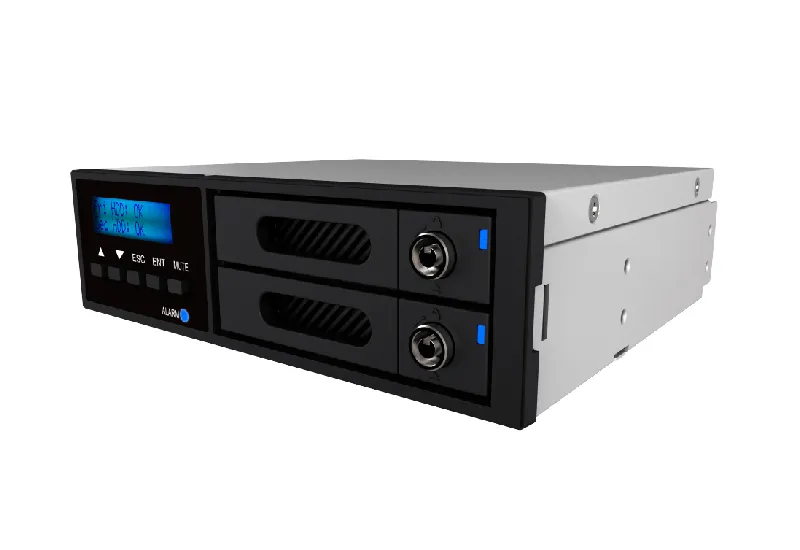

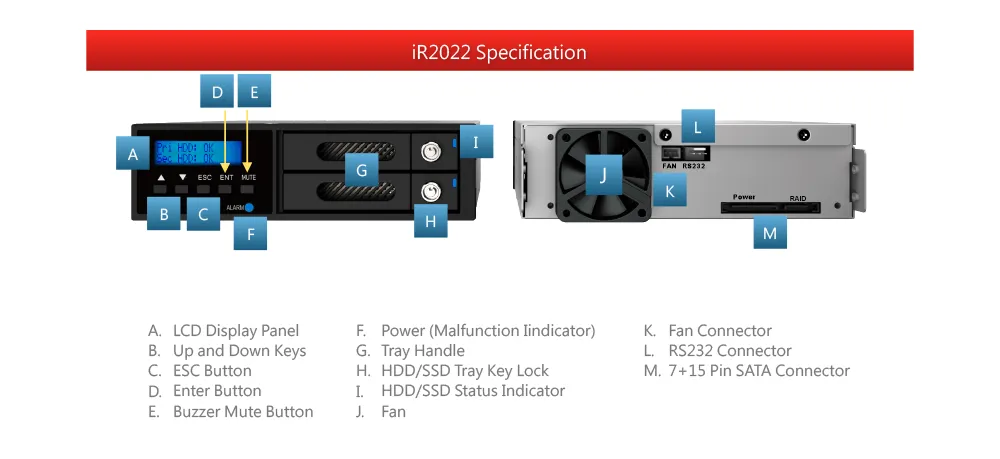

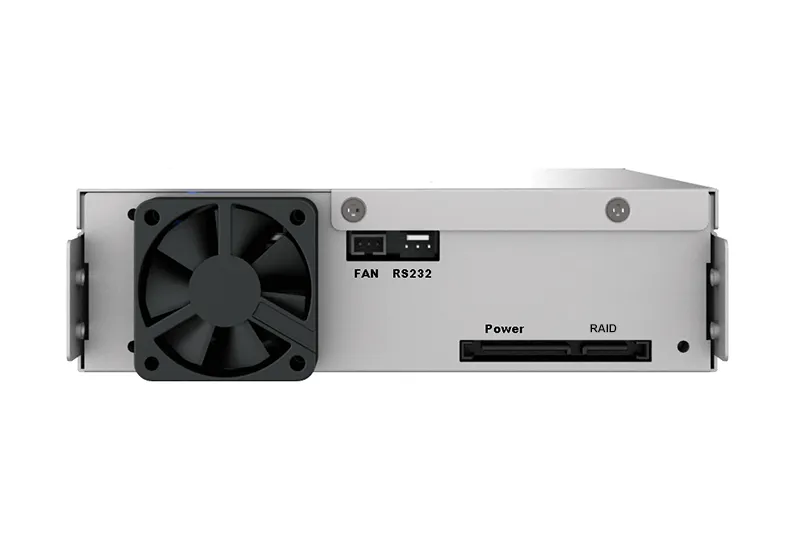

iR2022 Product View

iR2022 Specification

Model No iR2022
Interfaces 7+15-pin SATA III (6.0Gb/s) Port
Compatible Drives 2.5” SATA III, II, I HDD/SSD (x2)
Raid Level RAID 0 / RAID 1
System Monitoring Fan Failure, Overheat. HDD/SSD Failure
Cooling System 4 cm Low Noise Fan
Operating System Windows, Linux
Function Control
GUI (Windows Only)
Electrical and Operating
Line Voltage: 12V/5V DC
Maximum Power Consumption:30W
Operating Temperature: 0° to 40°C (32°F to 104°F)
Storage Temperature: -20°C ~ 47°C (-4°F ~ 116°F)
Relative Humidity: 5% ~ 95% Noncondensing
Dimension & Weight:Weight (Kgs) 148x140x43 (WxLxH);0.92 Kg
Product Code EAN : 4711132864366 UPC : 884826500483
Carton 10 pieces per-Carton
Package Accessories iR2022 x1, Including the Removable HDD/SSD Tray x2
SATA Cable x1
Key x2
Accessory Kit Bag x3
Quick Installation Guide x1


Related Products











>>>> More External RAID Storage


>>>> More videos about RAID GUI Utility

iR2022 Download

Dimension Download
Image Download
Image Download
GUI Software for Windows

iR2022 Question & Answer

  • Q1Upgrading Your System: Integrating iR2022 with Legacy RAID 1 Hard Drives.
  • Q2Upgrading from a Legacy RAID Device to iR2022 with New Hard Drives
  • Q3What causes RAIDbox to be unable to recognize my non-brand-new hard drive?
  • Q4What is the definition of Storage RAID modes?
  • Q5How to switch the RAID Mode?
  • Q6Is it possible to lose data during the REBUILDING work?
  • Q7What will happen if we turn off the computer power while iR2022 is still executing auto REBUILDING work?
  • Q8Why does the error message appear when I install the second HDD?
  • Q9Under the Mirror mode (RAID 1), what will be the total storage capacity when adding a brand new HDD?
  • Q10Computer works fine, but iR2022 doesn’t perform right in reading/writing messagesproperly.
  • Q11After installing iR2022, we are unable to start the computer or the computer doesn’t recognize iR2022.

iR2022 HD Compatible List

Product Name BrandHD TypeHD CategoryModel NumberCapacity Note
iR2022Toshiba2.5" HDD MQ01ABD1001TB
iR2022ADATA2.5" SSD ASX900S3-64GM64GB
iR2022ADATA2.5" SSD SX90064GB
iR2022ADATA2.5" SSDUltimate SU800256GB
iR2022Intel2.5" SSD SSD530120GB
iR2022Kingston2.5" SSD SHSS37A240GB
iR2022Kingston2.5" SSD SH103S3120GB
iR2022Samsung2.5" SSD 850 Pro128GB
iR2022silicon-power2.5" SSD S60120GB
iR2022silicon-power2.5" SSD S70120GB
iR2022silicon-power2.5" SSD S70240GB
iR2022silicon-power2.5" SSD V60120GB
iR2022silicon-power2.5" SSD V60240GB
iR2022silicon-power2.5" SSD V70120GB
iR2022LITE-ON2.5" SSD CV8-CE512512GB
iR2022Micron2.5" SSD MTFDDAK240TDN240GB
iR2022Micron2.5" SSD MTFDDAK480TDC480GB
iR2022Micron2.5" SSD MTFDDAK960TDD960GB
iR2022Innodisk2.5" SSD 3MG2-P128GB
iR2022WD2.5" SSD WDS200T2B0A2TB
iR2022Seagate2.5" SSD XA480LE10063480GB
iR2022Seagate2.5" SSD ZA960NM10001960GB
iR2022Samsung2.5" SSD MZ-76E250BW250GB
iR2022Samsung2.5" SSD MZ-76E500BW 500GB
iR2022Samsung2.5" SSD MZ-76E1T0BW 1TB
iR2022Samsung2.5" SSD MZ-76E2T0BW2TB
iR2022Samsung2.5" SSD MZ-76E4T0BW4TB
iR2022Advantech2.5" SSD830 SeriesSQF-S25M8-64G-SAE64GB
iR2022WD2.5" SSDRedSA500500GB
iR2022WD2.5" SSD WDS500G1R0A500GB
iR2022WD2.5" SSD WDS100T1R0A1TB
iR2022WD2.5" SSD WDS200T1R0A2TB
iR2022WD2.5" SSD WDS400T1R0A4TB
iR2022Seagate2.5" SSDIronWolf 125ZA4000NM10002 4TB
iR2022Seagate2.5" SSDIronWolf Pro 125ZA3840NX100013.84TB
iR2022EmBestor2.5" SSD EC3S2T-512GCJDYM44512GB
