HiU2300P:  Dual Hot-Swappable M.2 NVMe SSD Storage with 80Gbps Bandwidth



Overview



The HiU2300P Host Bus Adapter (HBA), embodying the pinnacle of innovation, operates at the core of technological advancement. This device, serving as the central processing unit of your system, incorporates a state-of-the-art PCIe Gen-3 X8 switch. It enables data transmission at unprecedented speeds, reaching up to 80Gbps, far surpassing conventional communication rates. Additionally, it supports two 40Gbps connections, significantly accelerating data transfer rates. Tailored for future needs, the adapter is compatible with M.2 NVMe SSDs and is integrated into the iU2300-U6P3 NVMe enclosure for easy hot-swapping. This feature allows for seamless drive replacements without disrupting system operations, ensuring continuous access to data and maintaining system efficiency.



Key Features



1. Complete Solution: Includes the RAIDON PC05-U6P3P-I HBA adapter, bridging the gap between M.2 NVMe SSDs and the iU2300-U6P3 NVMe enclosure




2. PCIe HBA Support:  The PC05-U6P3P-I HBA card comes equipped with two mini SAS (SFF-8643) connectors, each facilitating dual-channel support. These channels are designed to provide a bandwidth capacity of 40Gbps for each channel, enabling high-speed data transfer and efficient communication between connected devices. .



3. CD-ROM Drive Design: The iU2300-U6P3's design mirrors a standard CD-ROM drive for effortless system integration.



4. Universal M.2 NVMe SSD Support: The iU2300-U6P3 accommodates two M.2 NVMe SSDs of all standard sizes, including 2280, 2260, and 2242.



5. High-Speed Connectivity:  Both PC05-U6P3P-I HBA and iU2300-U6P3 are equipped with a high-speed mini SAS (SFF-8643) connector, it's compatible with both PCIe Gen 3 and Gen 4 interfaces for rapid data transfer.



6. Versatile Applications: With support for JBOD Mode, the iU2300-U6P3 offers a range of application options to cater to diverse storage needs.



7. Hot-swappable and Plug-and-Play Disk Trays: Includes two easy-to-install disk trays with hot-swappable support.



8. Solid Metal Tray Design: The iU2300-U6P3 simplifies the plug-and-play process, ensuring a sturdy and reliable connection.



9. Enhanced Security: The key lock tray design guarantees the utmost protection for your disks, preventing unauthorized access.



10. Two silent fans are thoughtfully positioned: one directly above the NVMe SSD and the other at the rear of the device, ensuring optimal cooling and promoting extended lifespan for your M.2 NVMe SSDs.



11. Efficient Heat Dissipation: The metal shell design not only offers durability but also aids in heat dispersion, further extending the lifespan of your SSDs.



12. Broad Compatibility: The iU2300-U6P3 is expertly engineered to flawlessly integrate with both 9.5mm U.2 SSDs and the RAIDON UBOX mini disk tray, which is uniquely, designed for accommodating M.2 NVMe SSDs.



13. Secure Placement: Mounting screws ensure that your M.2 NVMe SSD or U.2 SSD remains firmly in place, eliminating any risk of dislodgement.



14. Optimal Heat Dispersion: The UBOX mini comes with an ultra-soft thermal silicone pad, ensuring efficient heat dispersion and maintaining optimal M.2 NVMe SSD performance.



The HiU2300P stands as a pinnacle of technological advancement, marrying lightning-fast performance with state-of-the-art security measures and adaptable functionality, all within a sleek, streamlined design. Elevate your storage solutions to new heights with the HiU2300P - a harmonious fusion of velocity and inviolability.





Benefits



The HiU2300P offers a range of application benefits that make it an exceptional choice for various storage needs. Here are some of the key advantages:



1. Enhanced Data Speed and Efficiency: With support for M.2 NVMe SSDs, the HiU2300P provides significantly 80Gbs data transfer speeds compared to traditional SATA SSDs or HDDs. This will result in quicker boot times, faster file transfers, and overall improved system performance.



2. Increased Storage Flexibility: The HiU2300P's dual hot-swappable drive bays allow for easy expansion and replacement of SSDs without needing to power down the system. This feature is particularly beneficial for environments requiring continuous uptime, such as servers and high-performance workstations.



3. Compact and Seamless Integration: Designed to fit into a standard CD-ROM bay, the HiU2300P offers a space-saving solution that can be easily integrated into existing computer systems, saving valuable workspace and maintaining the aesthetics of the setup.



4. Broad Compatibility: The HiU2300P is compatible with a wide range of SSD sizes and interfaces, including U.2 SSDs and various sizes of M.2 NVMe SSDs. This broad compatibility ensures that the device can be used in a diverse array of systems and with different types of storage drives.



5. Enhanced Reliability and Durability: With its solid metal tray design and secure mounting screws, the HiU2300P ensures a stable and reliable connection, reducing the risk of physical damage to the SSDs. This feature is crucial in environments where data integrity is paramount.



6. Effective Cooling and Heat Dissipation: The inclusion of two silent fans and the metal shell design aids in efficient heat management, prolonging the lifespan of the SSDs by keeping them at optimal operating temperatures.



7. Advanced Security Features: The key lock tray design provides an additional layer of security, protecting sensitive data from unauthorized access.



8. Easy Installation and Maintenance: The plug-and-play functionality and hot-swappable trays make the HiU2300P user-friendly, requiring minimal technical expertise to install and maintain.



9. Versatile Application Use: From high-performance computing environments to video editing and gaming, the HiU2300P caters to various applications that demand high-speed storage and reliability.



10. Energy Efficiency: The HiU2300P, with its efficient design and cooling system, helps in reducing energy consumption compared to larger, more power-intensive storage solutions.



To summarize, the HiU2300P stands out as a robust, adaptable, and user-friendly storage solution, perfectly suited for high-performance computing. It delivers exceptional speed, versatility, and dependability, making it an excellent option for both professional and enthusiast users.

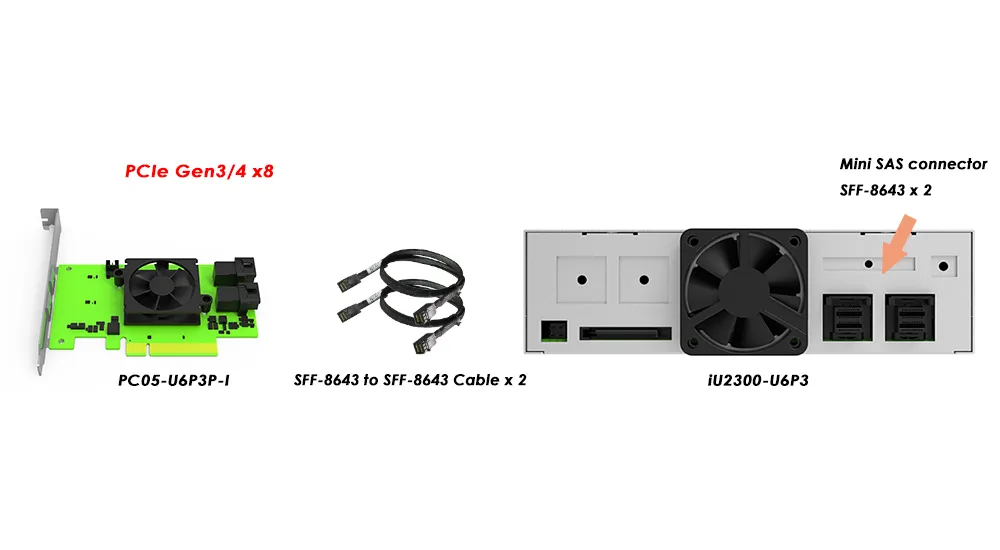

Complete Solution

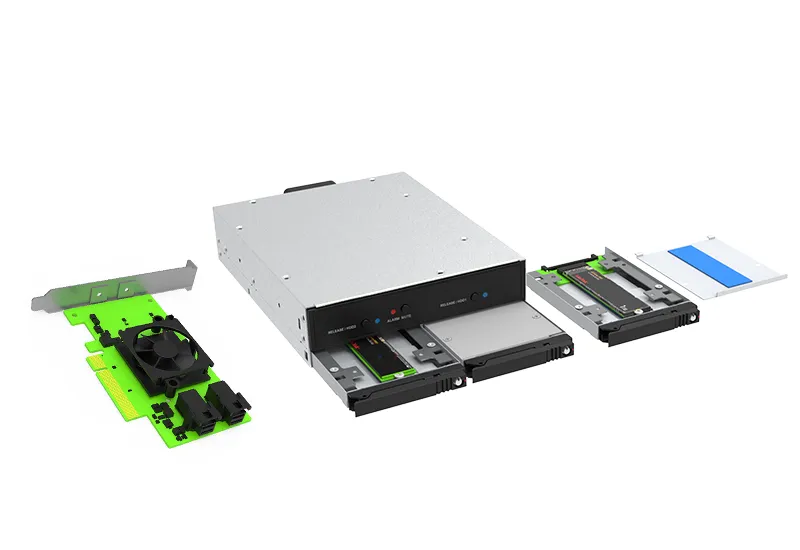

Elevating its reputation as a 'Complete Solution,' the RAIDON HiU2300P shatters traditional storage boundaries, offering an all-in-one expansion kit that redefines what's possible. Central to this transformation is the advanced PC05-U6P3P-I Host Bus Adapter (HBA), a key innovation that seamlessly connects M.2 NVMe SSDs to the swift currents of dual high-bandwidth (40Gps) PCIe interface. This seamless melding takes place within the sleek confines of the iU2300 NVMe enclosure—a masterpiece of engineering designed to slide perfectly into the standard CD-ROM bay of AI servers and IPC servers, ensuring a snug and secure fit. This not only simplifies installation but also elevates system performance and storage capacity, marking a new era in server enhancement.

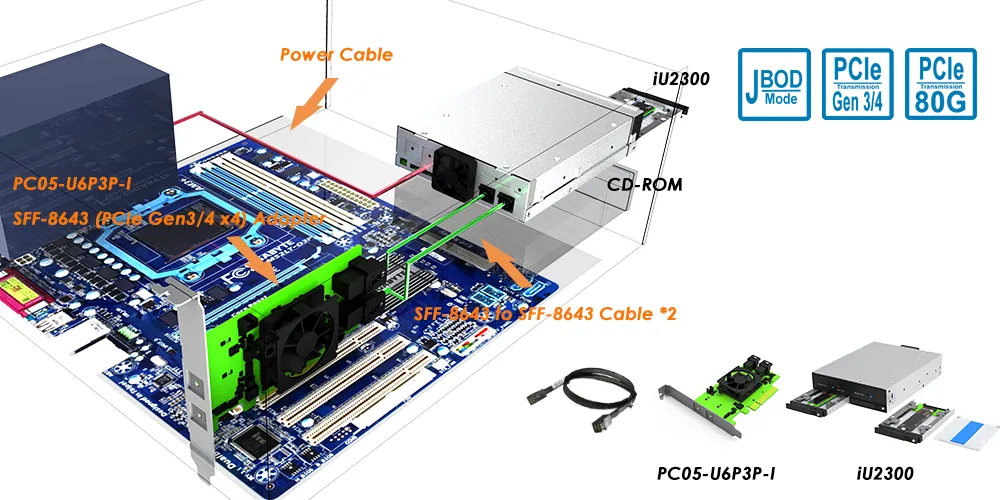

Retaining the same form factor as a CD-ROM drive



Discover the elegant combination of design and utility with the IU2300-U6P3. This device, compact as a traditional CD-ROM drive, is packed with state-of-the-art technology. Engineered for individuals who prioritize efficiency and high performance, it is tailored to meet diverse storage requirements.







Features a high-speed mini SAS (SFF-8643) connector compatible with both PCIe Gen 3 and Gen 4 interfaces

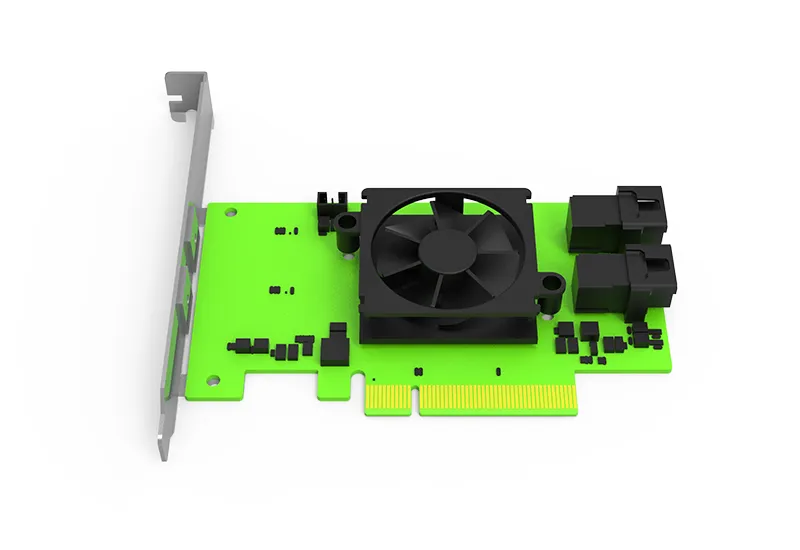

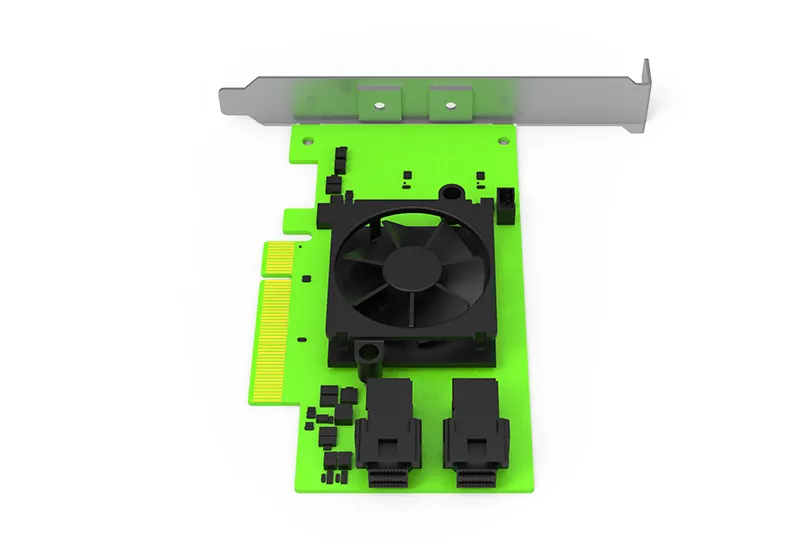

Delving deeper into its PCIe HBA Support, the RAIDON HiU2300P harnesses the sophisticated functionalities of the PC05-U6P3P-I Host Bus Adapter (HBA) card. This card, distinguished by its incorporation of dual mini SAS connectors, forges two resilient and high-velocity (40Gbps) pathways to the iU2300-U6P3 NVMe enclosure; thereby optimizing data transfer efficiency. Uniquely engineered to embrace both PCIe Gen3 and Gen4 protocols, the HBA card stands at the forefront of compatibility, seamlessly integrating with an extensive array of system architectures. This strategic design not only ensures seamless current generation integration but also strategically positions the HiU2300P as a future-proof solution, ready to embrace emerging storage technologies.

Accommodates a dual M.2 NVMe (PCIe Gen3 x4) SSD



The iU2300-U6P3 excels in compatibility. It is built to support two M.2 NVMe SSDs, accommodating a variety of sizes, including 2280, 2260, and 2242. This flexibility ensures the device can effortlessly adapt to your individual requirements, providing you with the capacity you need when you need it.



Support Hot-swappable and Effortless Integration with Plug-and-Play Disk Trays



A key highlight of the HiU2300P is its support for JBOD mode. This feature extends the device's application flexibility, allowing you to utilize your storage in ways that best suit your needs. Additionally, the device offers user-friendly functionality with two plug-and-play disk trays. Users can swap drives without powering off the system, thanks to PC05-U6P3P-I's hot-swappability. They can also plug in new drives and use them right away, without any hassle. These easy-to-install trays streamline the device setup, ensuring you can get up and running in no time.





Every disk tray is equipped with an individual security key lock for elevated safeguarding



The construction of IU2300-U6P3 incorporates an impressive metal tray design, which not only ensures robust durability but also offers heightened security via its key lock tray design. This distinct feature substantially aids in preventing unauthorized access, delivering peace of mind alongside exceptional storage performance.



Status indicators with LED light



The HiU2300P is equipped with a vivid and legible LED display for each M.2 NVMe SSD. This intuitive feature keeps users updated on the device's overall status, facilitating easier operation and maintenance at all times.





Sturdy Construction and Safekeeping: Highlighting the HiU2300P's Durability and Protection Against Unauthorized Access



The construction of HiU2300P incorporates an impressive metal tray design, which not only ensures robust durability but also offers heightened security via its key lock tray design. This distinct feature substantially aids in preventing unauthorized access, delivering peace of mind alongside exceptional storage performance.



Dual silent fans for superior heat management



Equipped with dual silent fans, the IU2300-U6P3 prioritizes the longevity of your storage. This feature, combined with a heat-dissipating metal shell design, optimizes the device's cooling capabilities. These measures are designed to extend the lifecycle of your M.2 NVMe SSDs and ensure they perform at peak levels.



The UBOX mini located on the drive tray is removable, facilitating the installation of 2.5-inch U.2 SSDs



The iU2300-U6P3's disk tray includes an UBOX mini, making it convenient for users to install M.2 NVMe SSDs. If the need arises to use a 2.5-inch U.2 SSD, simply remove the UBOX mini after unloading, and then you can install a standard 2.5-inch U.2 SSD (with a height of up to 9.5mm).



Perfect for a Wide Range of Data Storage Applications



The HiU2300P's internal storage module delivers a JBOD function, enabling the distinct storage of varying file formats, for instance, separate storage for O.S and Data. Should there be a need for higher data security backup functions or more extensive storage space, you can conveniently upgrade to a software RAID setup via the operating system or third-party software. This instant upgrade equips the platform with a disk array function, meeting your higher storage needs!

Applications



The HiU2300P, integrating Dual M.2 NVMe and U.2 SSD interfaces within a JBOD (Just a Bunch Of Disks) architecture, each channel capable of achieving 40Gbps throughput, stands as a highly adaptable storage solution suited for diverse industry sectors and application scenarios. Considering its robust features and capabilities, enumerated below are several prospective applications, notably within Industrial PC (IPC) environments and Artificial Intelligence (AI) domains:


1. Enterprise Data Centers: In data centers requiring dependable, high-speed storage solutions, the HiU2300P can serve as a backbone for data storage infrastructure. Its advanced security features ensure that sensitive information is protected, while its high-speed connections support the rapid retrieval and storage of data.



2. High-Performance Computing (HPC) Systems: The HiU2300P is ideal for HPC environments where processing large data sets and complex computations at high speeds is critical. Its fast data transfer rates ensure that computational delays are minimized, enhancing efficiency in scientific research, simulations, and analytics.



3. IPC (Industrial PC) Applications:


 Manufacturing Control: In manufacturing environments, the HiU2300P can be used in IPCs to store and manage data related to quality control, machinery operations, and production schedules.


 Surveillance Systems: For IPCs used in security and surveillance, the device can store vast amounts of video data, ensuring smooth playback and rapid data retrieval.


 Automation Systems: In automated factories or facilities, the HiU2300P can store program data and logs, ensuring seamless operations and real-time data access.



4. AI Applications:


 Training Datasets: AI researchers and developers can use the HiU2300P to store large datasets required for training machine learning models.


 Edge Computing: In edge devices where AI computations are done closer to the data source, the HiU2300P can provide fast storage solutions, ensuring real-time AI processing.


 AI Server Applications in Healthcare: In healthcare, AI servers equipped with the HiU2300P can process vast amounts of medical data for predictive analytics, diagnostic imaging, and personalized medicine. The product's speed and security features ensure that sensitive health data is handled efficiently and with the utmost confidentiality.


 Financial Analysis and Trading Platforms: The HiU2300P can support AI servers performing real-time financial analysis and automated trading. Its ability to quickly process and store vast amounts of transactional data makes it suitable for high-frequency trading platforms and financial analytics applications requiring rapid response times.



5. Media Servers: The HiU2300P can be integrated into media servers, ensuring smooth streaming and quick access to large media libraries.



6. Virtualization Environments: The HiU2300P can be used to support virtualized environments where multiple virtual machines are hosted on a single physical server. Its high-speed data transfer capabilities and advanced security features ensure that virtual machines operate efficiently and securely.



7. Cloud Storage Services: Given its high-speed performance and versatile functionality, the HiU2300P is well-suited for cloud storage solutions, offering service providers a reliable and efficient storage platform that can be scaled according to demand.



These applications highlight the HiU2300P's versatility across various industries, particularly where high-speed data transfer, security, and future-proofing are essential. Its capabilities make it a key component in the infrastructure supporting the next generation of technological advancements, including the expanding use of AI and machine learning.

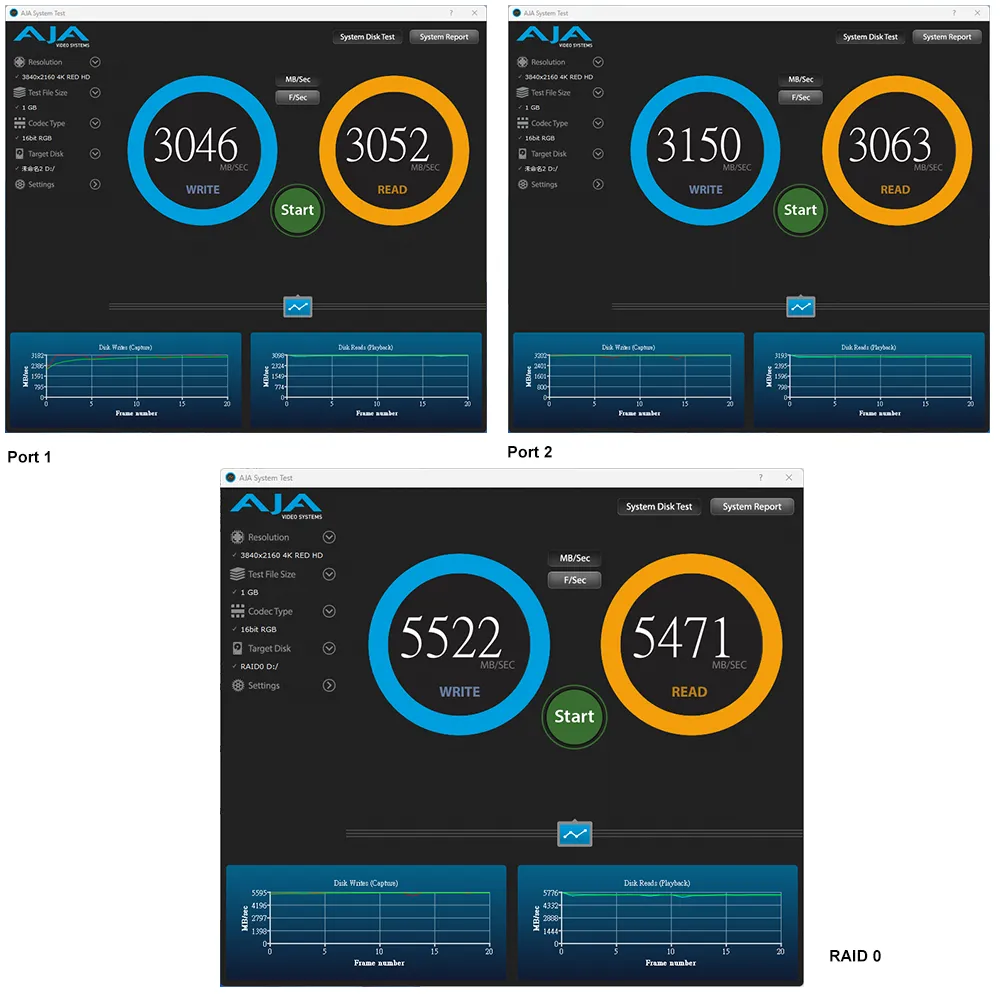

Performance test result for reference. The test result will vary depend on the test environment.

Product View

Specification



Model No HiU2300P
Interfaces 2 x SFF-8643 (PCIe Gen3)
Compatible Drive 2 x M.2 NVMe SSD (2242/2260/2280)
2 x U.2 SSD (height 9.5mm)
Tray with lock
Storage Mode JBOD
System Monitoring LED hard drive indicators / Fan Failure / Overheat
Operating System Windows, Linux
Cooling System 4 / 6 cm Low noise fan
Electrical and
Operating
Requirements
* Line voltage: 12V + 5V DC, SATA 15pin (12V/5V)
* Operating temperature: 32° to 104° F (0° to 40° C)
* Storage temperature: -4° to 116° F (-20° to 47° C)
* Relative humidity: 5% to 95% noncondensing
Size and Weight 146(W)x 42(H) x 198(L) mm

Carton 8 pcs per carton
Package Accessories * iU2300-U6P3 x 1
(with removable 2 x M.2 NVMe Converter)
* PC05-U6P3P-I
* SFF-8643 to SFF-8643 Cable x 2
* Accessory kit
* Quick Installation Guide
